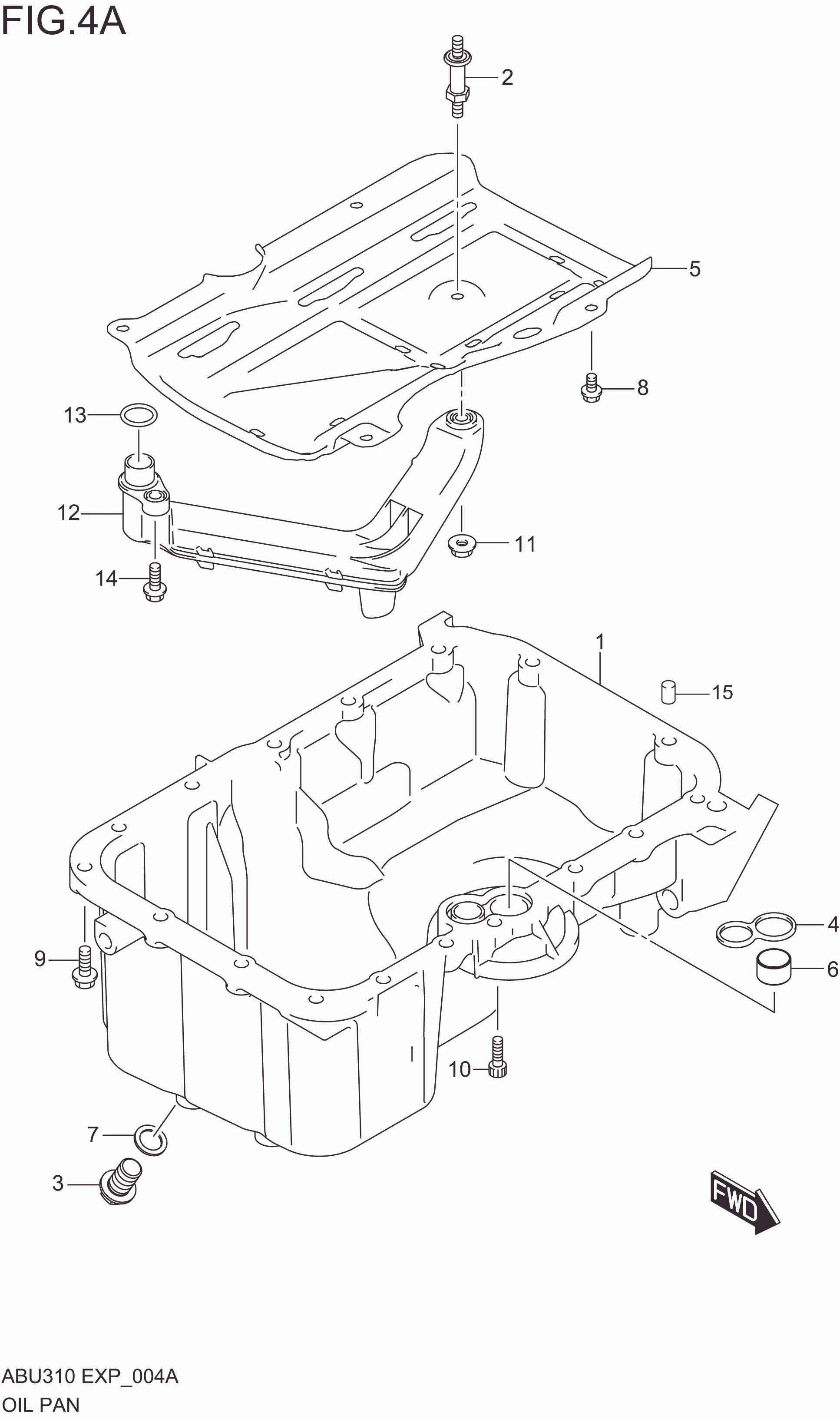

OIL PAN (K10C)

OIL PAN (K10C)
No No. Part Description Qty Price Per Pcs Remarks
1 11511M81R10-000 PAN, OIL 1 Rp757.000
2 11515-51K03-000 BOLT, OIL PAN BAFFLE STUD 1 Rp54.000
3 11518-63J20-000 PLUG, OIL DRAIN 1 Rp29.500
4 11518M68K00-000 O-RING, OIL PAN 1 Rp6.500
5 11541M81R10-000 PLATE, OIL PAN BAFFLE 1 Rp51.500
6 16114M69J00-000 PIN, OIL PAN DOWEL 1 Rp14.500
7 09168-14015-000 GASKET, OIL DRAIN PLUG 1 Rp7.500
8 01550M0612A-000 BOLT 4 Rp5.000
9 DISCONTINUE
SUB: 01550-0625A-000		 BOLT 16 -
10 07130-0625A-000 BOLT 1 Rp3.500
11 08316-1006A-000 NUT 1 Rp2.000
12 16520M81R10-000 STRAINER, OIL PUMP 1 Rp129.500
13 16119M68K00-000 O-RING, OIL STRAINER 1 Rp7.000
14 07120-0620A-000 BOLT 1 Rp22.000
15 11519M67L00-000 PIN,OIL PAN DOWEL 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
