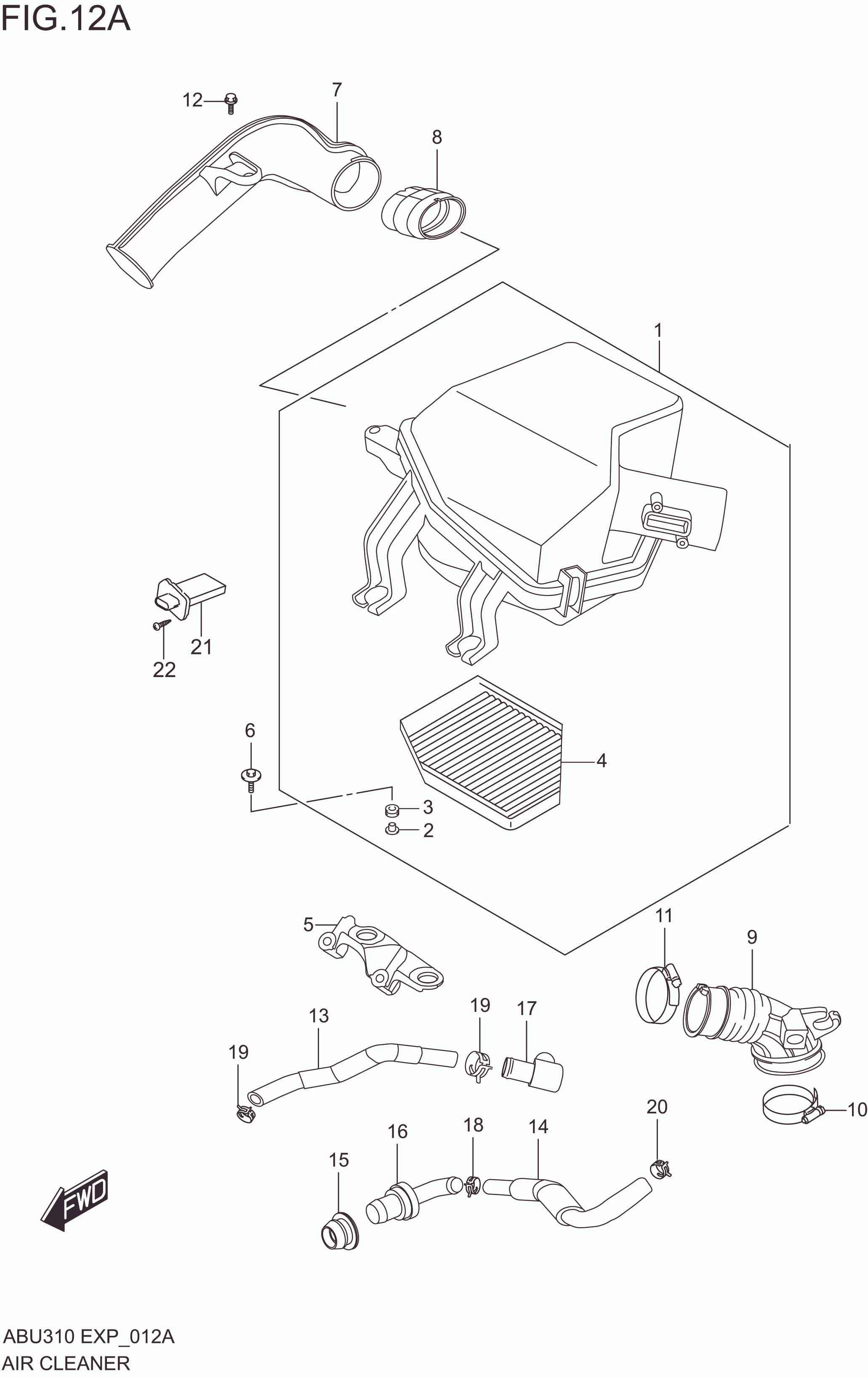

AIR CLEANER(K10C)

AIR CLEANER(K10C)
No No. Part Description Qty Price Per Pcs Remarks
1 13700M53T50-000 CLEANER ASSY,AIR 1 Rp338.500
2 13812M84MA0-000 .COLLAR 2 Rp8.500
3 13813M84MA0-000 .GROMMET, AIR CLEANER 2 Rp6.000
4 13780M53T50-000 .ELEMENT,AIR CLEANER 1 Rp74.500
5 13733M81R10-000 BRACKET,AIR CLEANER 1 Rp64.000
6 09136-06141-000 BOLT,AIR CLNR 2 Rp17.000
7 13765M53T50-000 PIPE,AIR CLNR SUCT 1 Rp61.000
8 13766M81R10-000 HOSE,AIR CLNR SUCT 1 Rp17.000
9 13881M81R10-000 HOSE,AIR CLNR OUT R :RHD 1 Rp65.500 RHD
10 13892M74L50-000 CLAMP,AIR CLNR OUTLET HOSE 1 Rp39.500
11 13893M74L50-000 CLAMP,AIR CLNR OUTLET HOSE 1 Rp47.500
12 02162-0616A-000 BOLT,AIR SUCT PIPE 1 Rp3.000
13 11191M81R10-000 HOSE,BREATHER 1 Rp34.500
14 11193M81R10-000 HOSE,PCV 1 Rp27.500
15 11198M79F00-000 SEAL,PCV VALVE 1 Rp16.500
16 18118-84MA0-000 VALVE,PCV 1 -
17 09367-14004-000 PIPE,BREATHER HOSE 1 Rp59.500
18 09401M13L04-000 CLIP 1 Rp6.000
19 09401M18L07-000 CLIP 2 Rp9.000
20 11199M68K00-000 CLIP, PCV HOSE 1 Rp11.000
21 13800M54T00-000 SENSOR ASSY, MAF 1 Rp747.500
22 03511-0416A-000 SCREW 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
