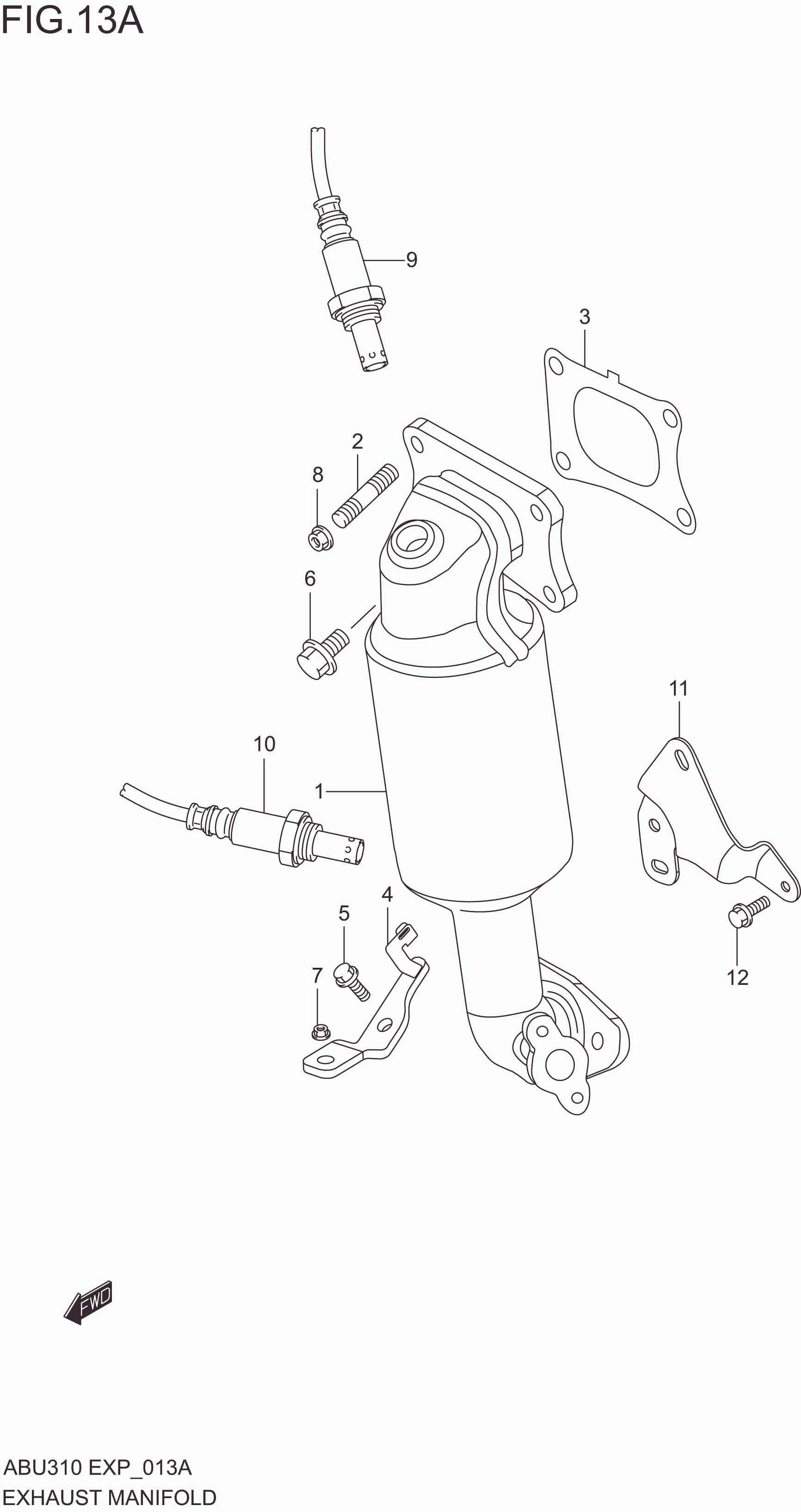

EXHAUST MANIFOLD(K10C)

EXHAUST MANIFOLD(K10C)
No No. Part Description Qty Price Per Pcs Remarks
1 14110M81R50-000 CASE,CATALYST 1 Rp12.832.500
2 14118-63J00-000 BOLT,EXH MANF STUD 2 Rp21.500
3 14140M81R50-000 GASKET,EXH MANF 1 Rp23.500
4 14271M81R50-000 STIFFENER,EXH MANF 1 Rp40.000
5 01550-0825A-000 BOLT,EXH MANF STIFFENER 1 Rp3.500
6 01550-1030B-000 BOLT,EXH MANF 2 Rp25.500
7 08316-1008A-000 NUT,EXH MANF STIF 1 Rp3.500
8 08316-1010A-000 NUT,EXH MANF 2 Rp3.500
9 18213M81R51-000
SUB: 18213M81R50-000		 SENSOR,OXYGEN 1 Rp820.000
10 18213M81R61-000
SUB: 18213M81R60-000		 SENSOR,OXYGEN RR 1 Rp915.000
11 18214M81R50-000 BRACKET,OXYGEN SENSOR 1 Rp48.000
12 01550M0612A-000 BOLT,OXYGEN SNSR BRKT 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
