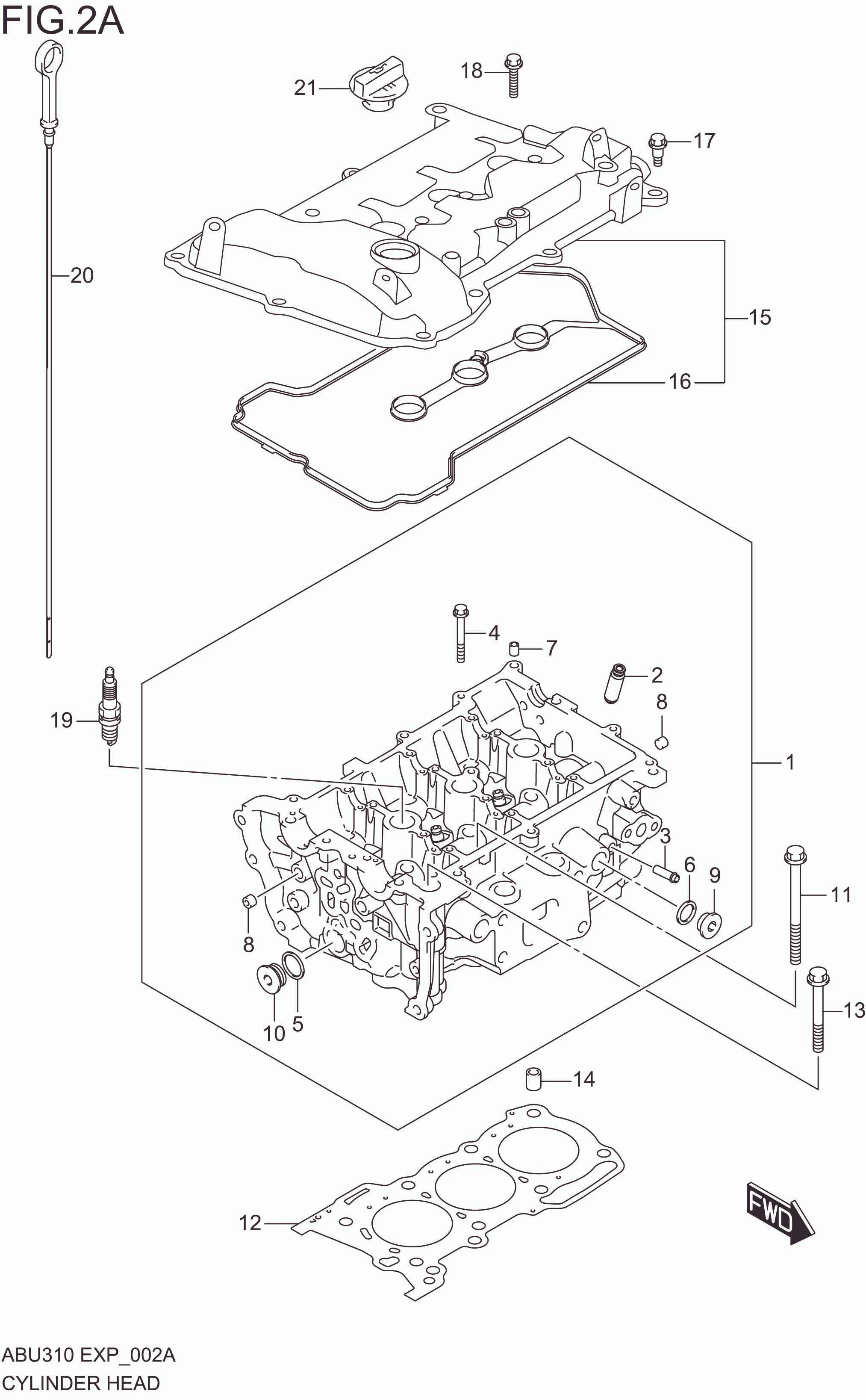

CYLINDER HEAD (K10C)

CYLINDER HEAD (K10C)
No No. Part Description Qty Price Per Pcs Remarks
1 11100M81R12-000 HEAD ASSY, CYLINDER 1 Rp4.357.500
2 11115M74L10-001 .GUIDE, VALVE 12 Rp12.500
3 09364-08003-000 .UNION 1 Rp20.500
4 11128-58M00-000 .BOLT, CAMSHAFT HOUSING 16 Rp26.500
5 11216-90J00-000 .GASKET, CYL HEAD PLUG 1 Rp38.000
6 11216M68K10-000 .GASKET, M18 PLUG 4 Rp8.000
7 09206-08001-000 .PIN 2 Rp5.500
8 09246M05003-000 .PLUG 4 Rp7.000
9 09248-18011-000 .PLUG 4 Rp38.000
10 09248-22007-000 .PLUG 1 -
11 11117M58M00-000 BOLT, CYLINDER HEAD 8 Rp27.500
12 11141M81R10-000 GASKET, CYLINDER HEAD 1 Rp272.000
13 01550-0880A-000 BOLT 1 Rp5.500
14 04211M13189-000 PIN 2 Rp9.000
15 11170M81R10-000 COVER ASSY, CYLINDER HEAD 1 Rp520.000
16 11189M81R10-000 .GASKET, CYLINDER HEAD COVER 1 Rp96.500
17 11178-69L00-000 BOLT, CYLINDER HEAD COVER 10 Rp23.000
18 01547-0635A-000 BOLT 1 Rp6.500
19 09482M00651-000 PLUG, SPARK 3 Rp173.000
20 16910M68PA1-000 GAUGE, OIL LEVEL 1 Rp14.000
21 16920M83P10-000 CAP, OIL FILLER 1 Rp26.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
