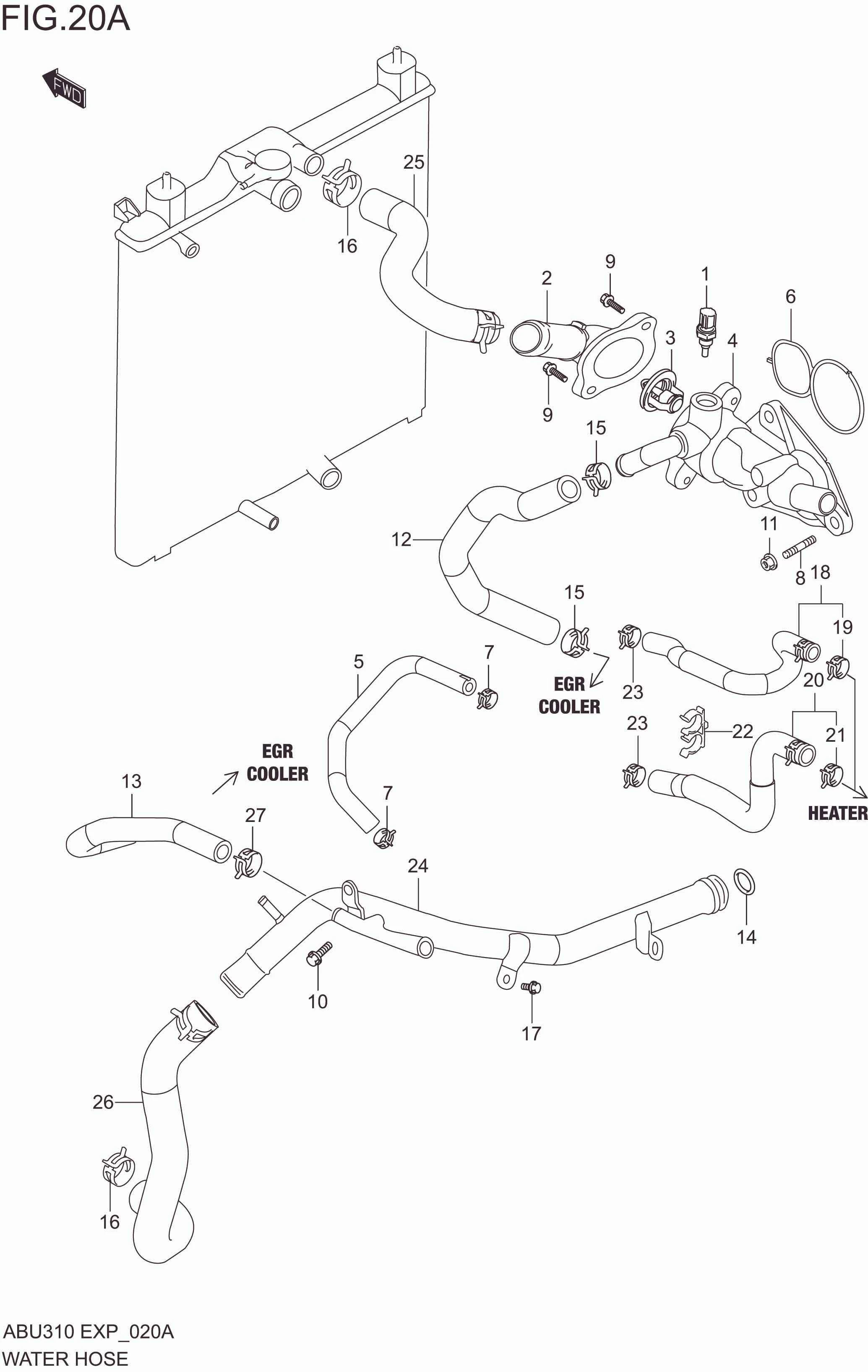

WATER HOSE(K10C)

WATER HOSE(K10C)
No No. Part Description Qty Price Per Pcs Remarks
1 13650M55K00-000 SENSOR,WTR TEMP 1 Rp365.500
2 17561M81R10-000 CAP,WTR THERMO 1 Rp65.000
3 17670M83F00-000 THERMOSTAT COMP,WTR 1 Rp266.000
4 17690M81R10-000 CASE COMP,THERMO 1 Rp350.500
5 17698M53TA0-000 HOSE,WATER 1 Rp32.000
6 17699M68PA0-000 O-RING,THERMO CASE 1 Rp19.500
7 09401M12L05-000 CLIP,HOSE WATER 2 Rp6.500
8 DISCONTINUE
SUB: 01421-0820A-000		 BOLT,THERMO CASE STUD 2 -
9 01550-0620B-000 BOLT,THERMO CAP 2 Rp3.500
10 01550-0825A-000 BOLT,THERMO CASE 1 Rp3.500
11 08316-1008A-000 NUT,THERMO CASE 2 Rp3.500
12 18721M53TA0-000 HOSE,EGR COOLER WTR INLET 1 Rp41.000
13 18722M53TA0-000 HOSE,EGR COOLER WTR OUTLET 1 Rp35.500
14 09280M28L01-000 O-RING,WATER INLET PIPE 1 Rp7.500
15 11199M68K00-000 CLIP,EGR HOSE 2 Rp11.000
16 09401M30406-000 CLIP,RDTR HOSE 4 Rp15.000
17 01550M0612A-000 BOLT,WTR INLET PIPE 1 Rp5.000
18 17871M53TA0-000 HOSE,HTR INLET 1 Rp62.500
19 DISCONTINUE
SUB: 09401-21407-000		 .CLIP,HEATER HOSE(DASH SIDE) 1 -
20 17872M53TA0-000 HOSE,HTR OUTLET 1 Rp66.500
21 DISCONTINUE
SUB: 09401-21407-000		 .CLIP,HEATER HOSE(DASH SIDE) 1 -
22 17875M68P00-000 CLAMP,HEATER HOSE 1 Rp13.000
23 09401M21410-000 CLIP,HTR HOSE 2 Rp11.000
24 17830M53TA0-000 PIPE COMP,WTR INLET 1 Rp245.000
25 17852M62SA0-000 HOSE,RDTR INLET 1 Rp34.500
26 17854M53TA0-000 HOSE,RDTR OUTLET 1 Rp57.500
27 09401M21410-000 CLIP,EGR HOSE(PIPE SIDE) 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
