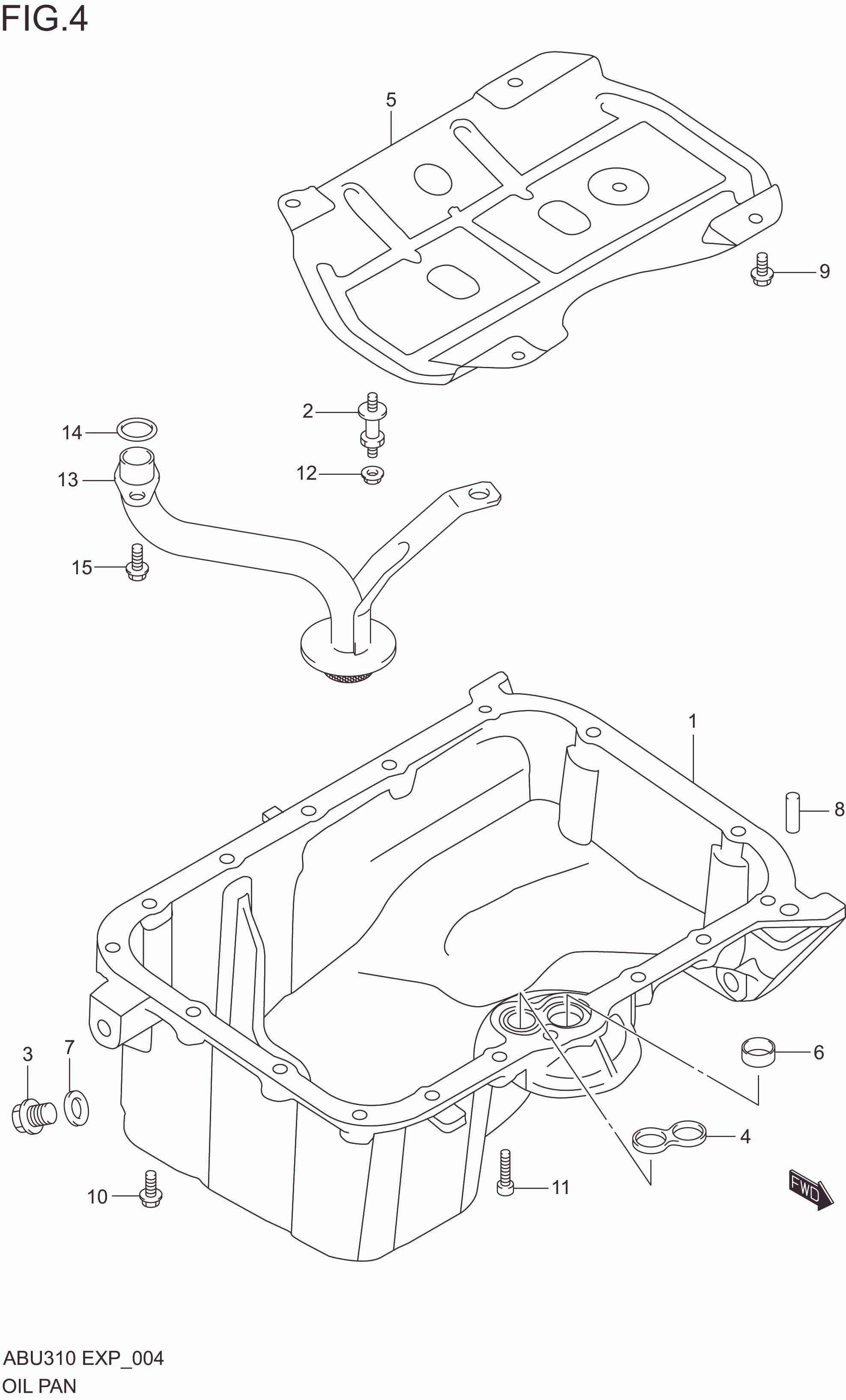

OIL PAN (K10B)

OIL PAN (K10B)
No No. Part Description Qty Price Per Pcs Remarks
1 11511M69R00-000 PAN, OIL 1 Rp817.500
2 11515-51K03-000 STUD BOLT 1 Rp54.000
3 11518-63J20-000 PLUG, OIL DRAIN 1 Rp29.500
4 11518M68K00-000 O RING 1 Rp6.500
5 11541M51K10-000 PLATE, OIL PAN BAFFLE 1 Rp119.500
6 16114M69J00-000 PIN, OIL PAN DOWEL 1 Rp14.500
7 09168-14015-000 GASKET (14X20X1.5) 1 Rp7.500
8 11519M67L00-000 PIN 1 Rp6.000
9 01550M0612A-000 BOLT 4 Rp5.000
10 DISCONTINUE
SUB: 01550-0625A-000		 BOLT 16 -
11 07130-0625A-000 BOLT 1 Rp3.500
12 08316-1006A-000 NUT 1 Rp2.000
13 16520M68K10-000 STRAINER, OIL PUMP 1 Rp94.500
14 16119M68K00-000 O RING 2 Rp7.000
15 07120-0616A-000 BOLT 1 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
