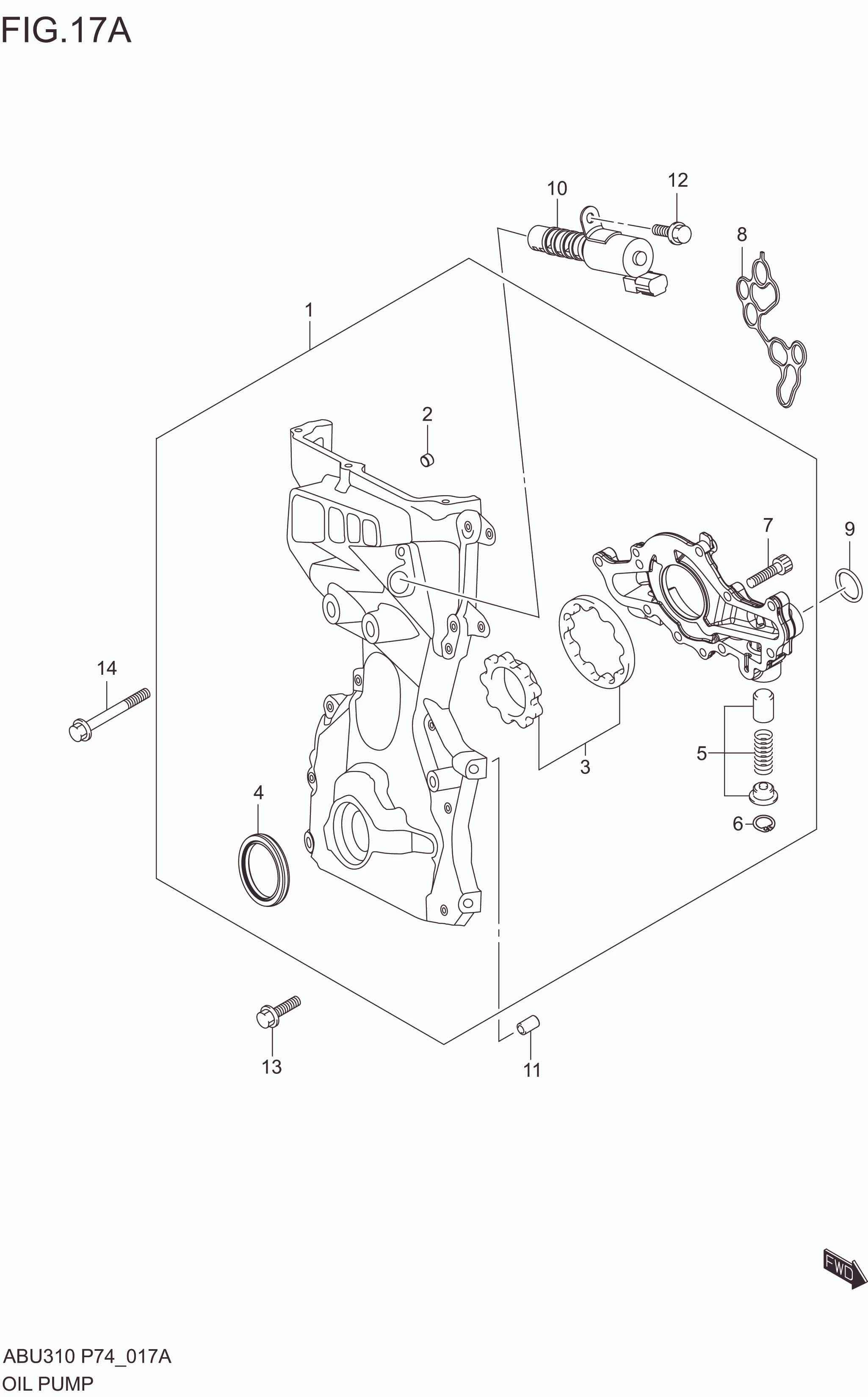

OIL PUMP(K10C)

OIL PUMP(K10C)
No No. Part Description Qty Price Per Pcs Remarks
1 16100M81R10-000 PUMP ASSY,OIL 1 Rp1.828.500
2 16116-69GE0-000 .FILTER,OIL GALLERY 2 Rp66.000
3 16130M81R10-000 .ROTOR SET,OIL PUMP 1 Rp260.000
4 16141M68PA0-000 .SEAL,CRANKSHAFT FRONT OIL 1 Rp64.500
5 16150M68PA0-000 .VALVE SET,OIL PUMP RELIEF 1 Rp47.000
6 08331M41159-000 ..CIRCLIP 1 Rp6.500
7 07130-0625A-000 .BOLT,OIL PUMP PLATE 9 Rp3.500
8 16118M81R10-000 O-RING,OCV 1 Rp14.000
9 16119M68K00-000 O-RING,OIL GALLERY 1 Rp7.000
10 16550M81R10-000 VALVE, OIL CONTROL 2 Rp722.000
11 09206-06005-000 PIN,OIL PUMP CASE DOWEL 2 Rp14.500
12 01550M0612A-000 BOLT,OCV 2 Rp5.000
13 01550-0830A-000 BOLT,OIL PUMP 15 Rp4.000
14 01550M0890A-000 BOLT,OIL PUMP NO.2 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
