S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETS (K10B)ENGINE GASKETS (K10C)CYLINDER HEAD (K10B)CYLINDER HEAD (K10C)CYLINDER (K10B)CYLINDER (K10C)OIL PAN (K10B)OIL PAN (K10C)ENGINE MOUNTING(K10B:5MT)ENGINE MOUNTING(K10B:5AGS)ENGINE MOUNTING(K10C)CRANKSHAFT(K10B)CRANKSHAFT(K10C)CAM SHAFT/VALVE(K10B)CAM SHAFT/VALVE(K10C)CAM CHAIN(K10B)CAM CHAIN(K10C)INTAKE MANIFOLD(K10B)INTAKE MANIFOLD(K10C)THROTTLE BODY(K10B)THROTTLE BODY(K10C)AIR CLEANER(K10B)AIR CLEANER(K10C)EXHAUST MANIFOLD(K10B)EXHAUST MANIFOLD(K10C)MUFFLER(K10B)MUFFLER(K10C)FUEL PUMP (RHD)DELIVERY PIPE(K10B)DELIVERY PIPE(K10C)OIL PUMP(K10B)OIL PUMP(K10C)WATER PUMPRADIATOR(K10B)RADIATOR(K10C)WATER HOSE(K10B)WATER HOSE(K10C)EMISSION CONTROL (RHD)EGR VALVE(K10C)LABEL

ENGINE MOUNTING(K10C)

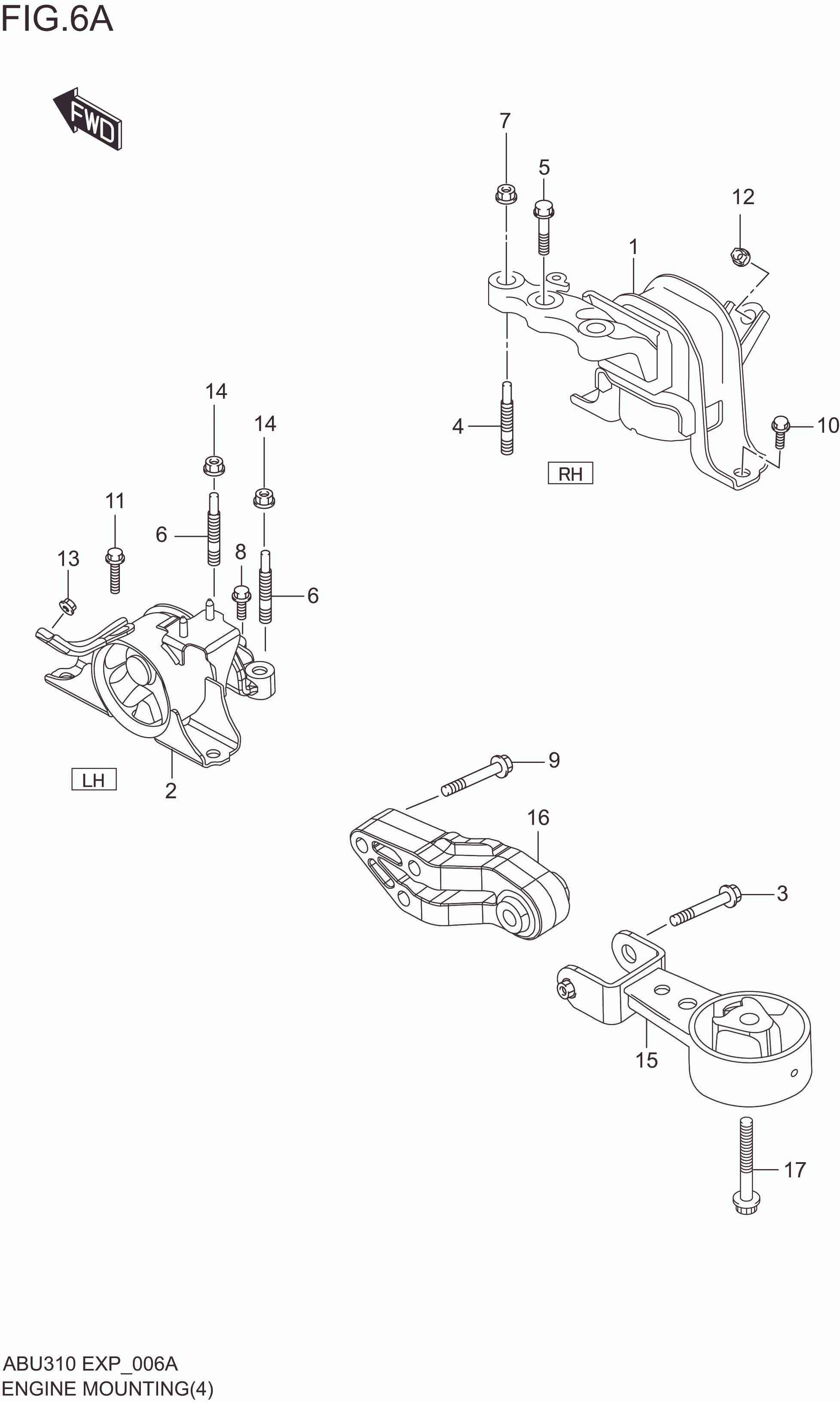

ENGINE MOUNTING(K10C)
No No. Part Description Qty Price Per Pcs Remarks
1 11610M62SA0-000 MOUNTING, ENG RH 1 Rp669.000
2 11620M62SB0-000 MOUNTING, ENG LH 1 Rp687.000
3 09113M12003-000 BOLT 1 Rp34.000
4 11653-79J50-000 BOLT, ENG MTG RH STUD 2 Rp40.000
5 09103-12134-000 BOLT 1 Rp30.500
6 09108-12020-000 BOLT 2 Rp14.000
7 11645-68M00-000 NUT, ENG MTG RH(BRKT TO ENG) 2 Rp25.500
8 01550-1040A-000 BOLT 1 Rp7.000
9 01550-1055A-000 BOLT 3 Rp29.000
10 01551-1025A-000 BOLT 2 Rp29.000
11 01551-1025A-000 BOLT 2 Rp29.000
12 08316-1010A-000 NUT 1 Rp3.500
13 08316-1010A-000 NUT 1 Rp3.500
14 08316-1010A-000 NUT 2 Rp3.500
15 11910M62S00-000 ROD, ENG RR TRQ 1 Rp338.500
16 11940M62S00-000 BRACKET, ENG RR TRQ ROD 1 Rp303.000
17 09113M12003-000 BOLT 1 Rp34.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
