S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETS (K10B)ENGINE GASKETS (K10C)CYLINDER HEAD (K10B)CYLINDER HEAD (K10C)CYLINDER (K10B)CYLINDER (K10C)OIL PAN (K10B)OIL PAN (K10C)ENGINE MOUNTING(K10B:5MT)ENGINE MOUNTING(K10B:5AGS)ENGINE MOUNTING(K10C)CRANKSHAFT(K10B)CRANKSHAFT(K10C)CAM SHAFT/VALVE(K10B)CAM SHAFT/VALVE(K10C)CAM CHAIN(K10B)CAM CHAIN(K10C)INTAKE MANIFOLD(K10B)INTAKE MANIFOLD(K10C)THROTTLE BODY(K10B)THROTTLE BODY(K10C)AIR CLEANER(K10B)AIR CLEANER(K10C)EXHAUST MANIFOLD(K10B)EXHAUST MANIFOLD(K10C)MUFFLER(K10B)MUFFLER(K10C)FUEL PUMP (RHD)DELIVERY PIPE(K10B)DELIVERY PIPE(K10C)OIL PUMP(K10B)OIL PUMP(K10C)WATER PUMPRADIATOR(K10B)RADIATOR(K10C)WATER HOSE(K10B)WATER HOSE(K10C)EMISSION CONTROL (RHD)EGR VALVE(K10C)LABEL

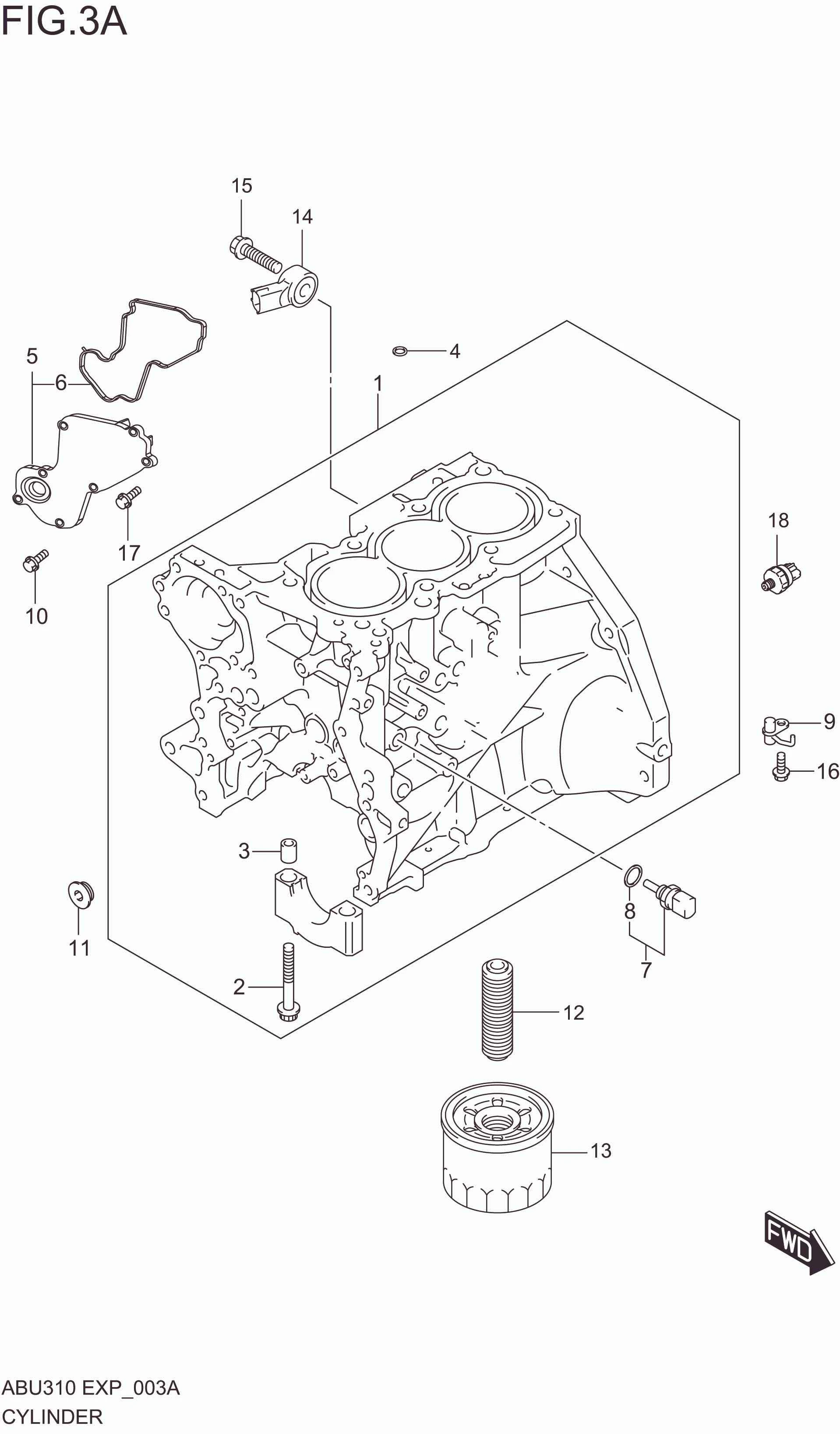

CYLINDER (K10C)

CYLINDER (K10C)
No No. Part Description Qty Price Per Pcs Remarks
1 11200M81R10-000 BLOCK ASSY, CYLINDER 1 Rp6.933.000
2 11261M58M01-000 .BOLT, CRANK BEARING CAP 8 Rp17.000
3 04211M13189-000 .PIN, CRANK BRG CAP DOWEL 8 Rp9.000
4 11216M68K10-000 GASKET, M18 PLUG 4 Rp8.000
5 11220M81R10-000 PLATE ASSY, BREATHER 1 Rp155.500
6 11223M81R10-000 .GASKET, BREATHER PLATE 1 Rp45.500
7 16570M81R10-000 SENSOR, OIL TEMP 1 Rp120.500
8 16572M81R10-000 .GASKET, OIL TEMP SENSOR 1 Rp47.000
9 16710M81R10-000 JET, PISTON COOLING 3 Rp72.000
10 DISCONTINUE
SUB: 09103-06286-000		 BOLT 1 -
11 09248-18011-000 PLUG 4 Rp38.000
12 11241-68K00-000 STAND, OIL FILTER 1 Rp15.000
13 16510M65L10-000 FILTER ASSY, OIL 1 Rp65.500
14 18640M72R00-000 SENSOR ASSY, KNOCK 1 Rp157.500
15 01550-0835A-000 BOLT 1 Rp3.500
16 01550-0616A-000 BOLT 3 Rp3.500
17 01550-0620B-000 BOLT 6 Rp3.500 INTAKE
18 37820M54T00-000 SWITCH ASSY, OIL PRESSURE 1 Rp199.500 EXHAUST

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
