S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETS (K10B)ENGINE GASKETS (K10C)CYLINDER HEAD (K10B)CYLINDER HEAD (K10C)CYLINDER (K10B)CYLINDER (K10C)OIL PAN (K10B)OIL PAN (K10C)ENGINE MOUNTING(K10B:5MT)ENGINE MOUNTING(K10B:5AGS)ENGINE MOUNTING(K10C)CRANKSHAFT(K10B)CRANKSHAFT(K10C)CAM SHAFT/VALVE(K10B)CAM SHAFT/VALVE(K10C)CAM CHAIN(K10B)CAM CHAIN(K10C)INTAKE MANIFOLD(K10B)INTAKE MANIFOLD(K10C)THROTTLE BODY(K10B)THROTTLE BODY(K10C)AIR CLEANER(K10B)AIR CLEANER(K10C)EXHAUST MANIFOLD(K10B)EXHAUST MANIFOLD(K10C)MUFFLER(K10B)MUFFLER(K10C)FUEL PUMP (RHD)DELIVERY PIPE(K10B)DELIVERY PIPE(K10C)OIL PUMP(K10B)OIL PUMP(K10C)WATER PUMPRADIATOR(K10B)RADIATOR(K10C)WATER HOSE(K10B)WATER HOSE(K10C)EMISSION CONTROL (RHD)EGR VALVE(K10C)LABEL

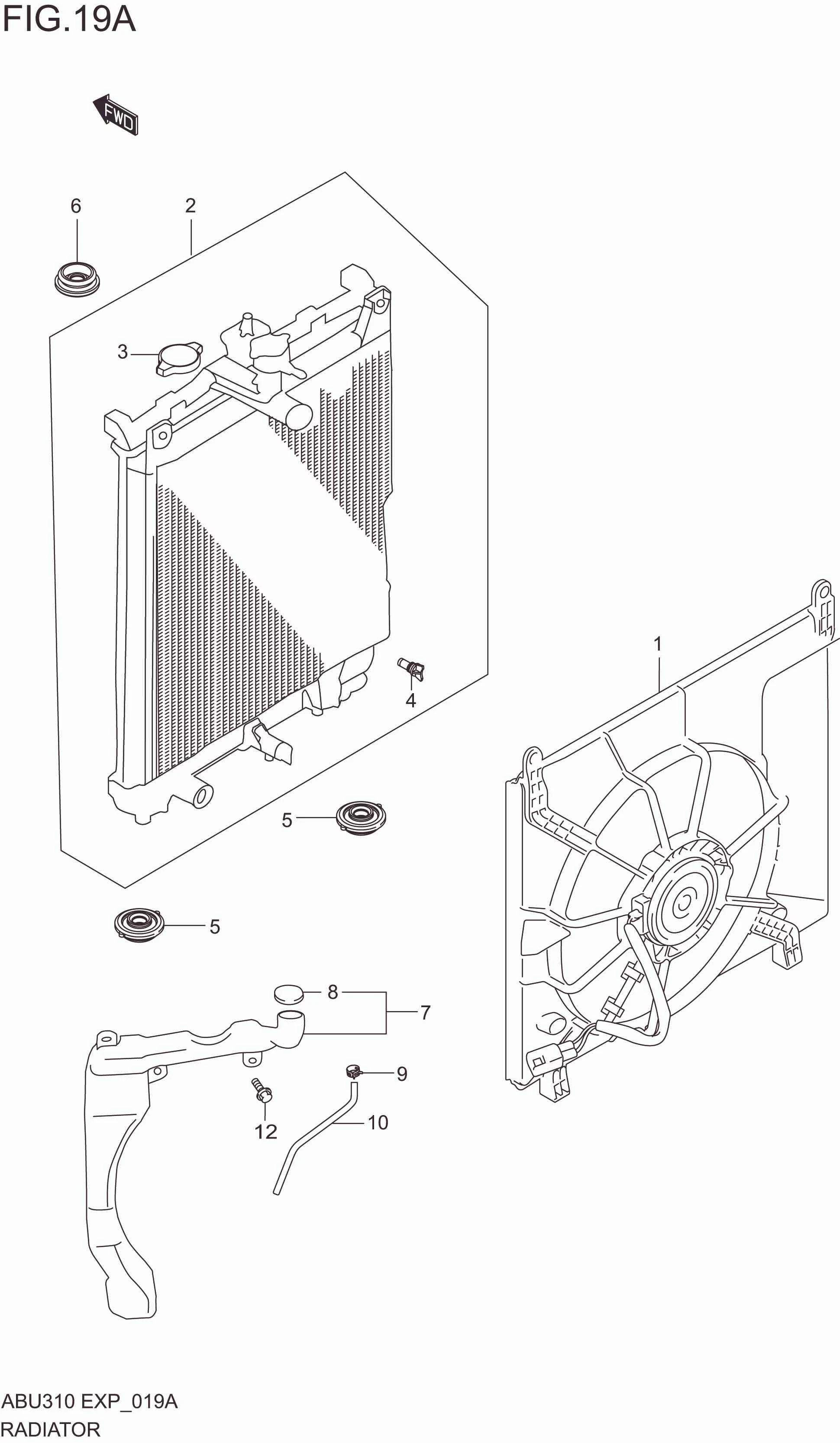

RADIATOR(K10C)

RADIATOR(K10C)
No No. Part Description Qty Price Per Pcs Remarks
1 17100M62SA0-000 FAN ASSY 5 CLG 1 Rp1.255.000
2 17700M62SA0-000 RADIATOR ASSY 1 Rp989.500
3 17920M77P00-000 .CAP 1 Rp103.500
4 17751M63210-000 .VALVE DRAIN 1 Rp9.000
5 17878M68P00-000 MOUNT,RADIATOR SUPPORT LOWER 2 Rp17.000
6 17879M62S00-000 MOUNT,RADIATOR SUPPORT UPPER 2 Rp7.000
7 17930M62SA0-000 TANK ASSY,WATER RESERVE 1 Rp96.500
8 17932M53T00-000 .CAP,WTR RSVR TANK 1 Rp5.000
9 09401M11434-000 CLIP,RSVR TANK HOSE 1 Rp4.500
10 17939M62SA0-000 HOSE,RDTR TO RSVR TANK 1 Rp45.500
11 01550M0612A-000 BOLT,WTR RSVR TANK 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
