S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETS (K10B)ENGINE GASKETS (K10C)CYLINDER HEAD (K10B)CYLINDER HEAD (K10C)CYLINDER (K10B)CYLINDER (K10C)OIL PAN (K10B)OIL PAN (K10C)ENGINE MOUNTING(K10B:5MT)ENGINE MOUNTING(K10B:5AGS)ENGINE MOUNTING(K10C)CRANKSHAFT(K10B)CRANKSHAFT(K10C)CAM SHAFT/VALVE(K10B)CAM SHAFT/VALVE(K10C)CAM CHAIN(K10B)CAM CHAIN(K10C)INTAKE MANIFOLD(K10B)INTAKE MANIFOLD(K10C)THROTTLE BODY(K10B)THROTTLE BODY(K10C)AIR CLEANER(K10B)AIR CLEANER(K10C)EXHAUST MANIFOLD(K10B)EXHAUST MANIFOLD(K10C)MUFFLER(K10B)MUFFLER(K10C)FUEL PUMP (RHD)DELIVERY PIPE(K10B)DELIVERY PIPE(K10C)OIL PUMP(K10B)OIL PUMP(K10C)WATER PUMPRADIATOR(K10B)RADIATOR(K10C)WATER HOSE(K10B)WATER HOSE(K10C)EMISSION CONTROL (RHD)EGR VALVE(K10C)LABEL

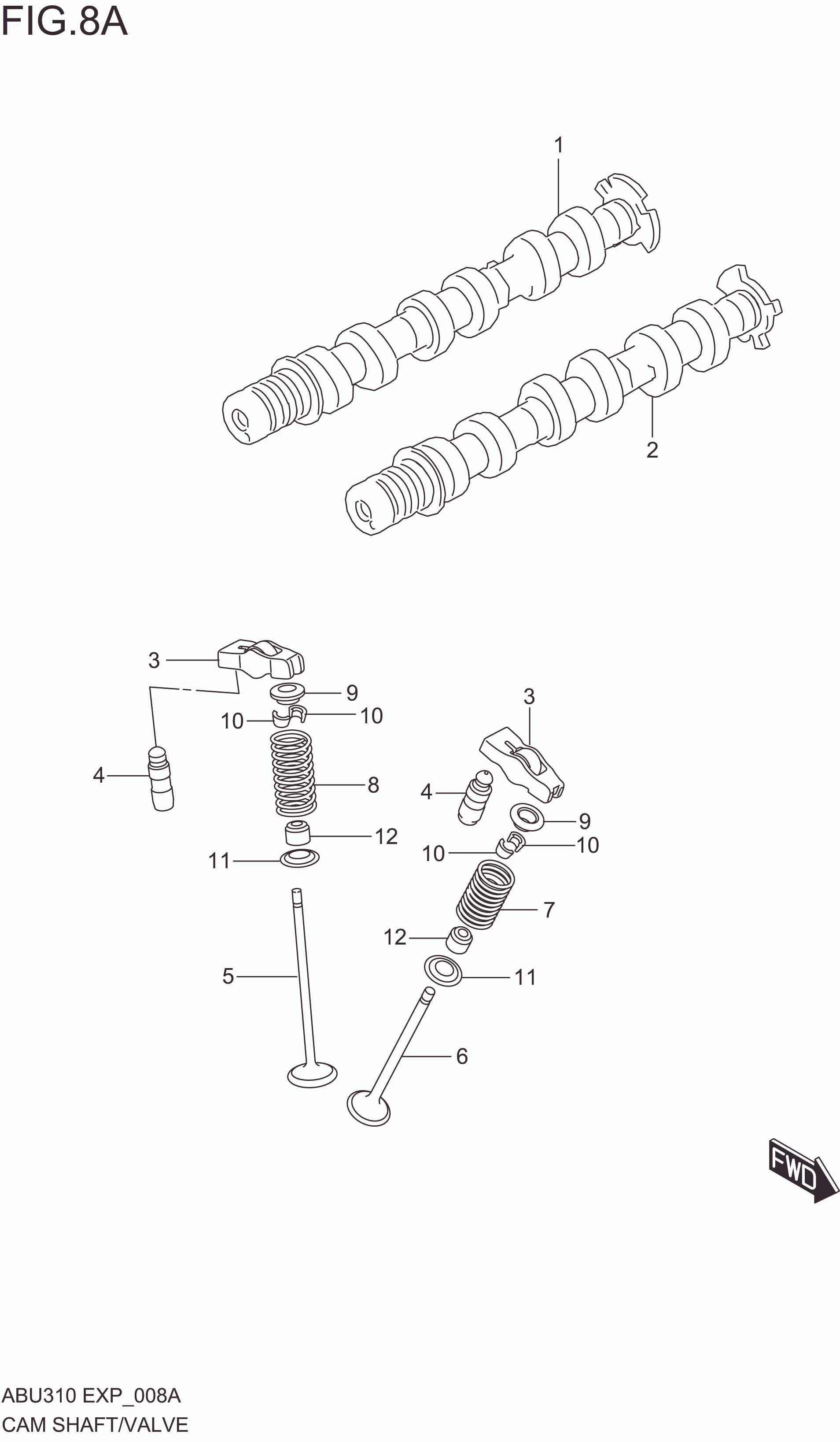

CAM SHAFT/VALVE(K10C)

CAM SHAFT/VALVE(K10C)
No No. Part Description Qty Price Per Pcs Remarks
1 12710M81R10-000 CAMSHAFT, INTK 1 Rp1.716.500
2 12720M81R10-000 CAMSHAFT, EXH 1 Rp1.716.500
3 12840M68PA0-000 ARM, VALVE ROCKER 12 Rp96.000
4 12860M83M00-000 ADJUSTER, HYDR VALVE LASH 12 Rp81.000
5 12911M68PB0-000 VALVE, INTK 6 Rp55.000
6 12915M68PB1-000 VALVE, EXH 6 Rp70.000
7 12921M68PA0-000 SPRING, VALVE EXH 6 Rp15.500
8 12921M68PB0-000 SPRING, VALVE INTK 6 Rp16.500
9 12931M74L00-000 RETAINER, VALVE SPRING 12 Rp8.500
10 12932M74L00-000 COTTER, VALVE 24 Rp5.500
11 12933M84MA0-000 SEAT, VALVE SPRING 12 Rp4.000
12 12934M74L00-000 SEAL, VALVE STEM 12 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
