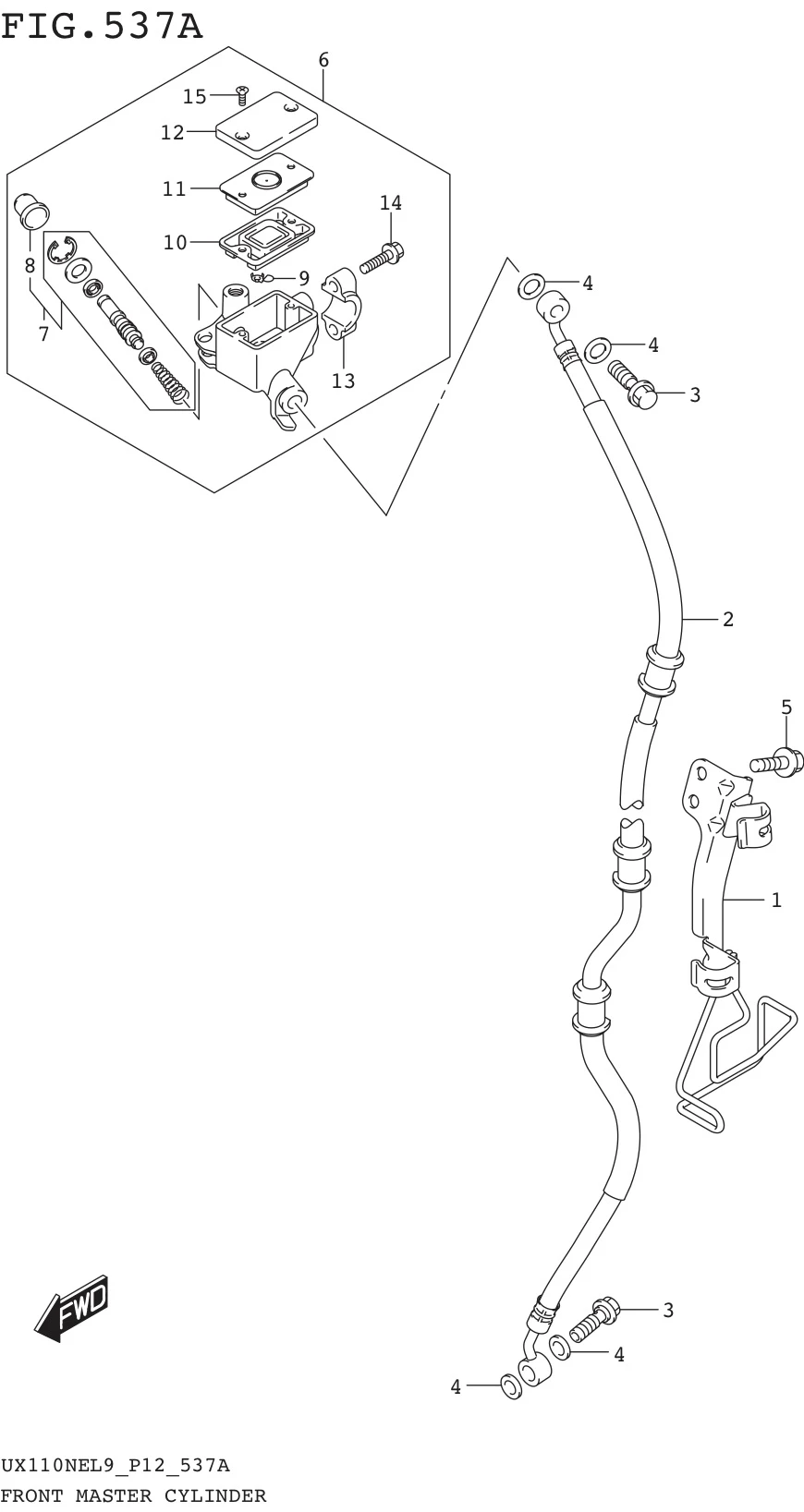

FIG. 537A FRONT MASTER CYLINDER

FIG. 537A FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59260-09J30-000 CLAMP, FR BRAKE HOSE 1 Rp22.000
2 59480-49K00-000 HOSE, FRONT BRAKE 1 Rp115.500
3 59492-22J00-000
SUB: 59492B22J00N000		 BOLT, BRAKE FLUID 2 Rp19.500
4 09168-10033-000
SUB: 09168B10033N000		 WASHER (10.2X15X1.4) 4 Rp8.500
5 01547-0610A-000
SUB: 01547B0612AN000		 BOLT 2 Rp3.000
6 59600-41H31-000
SUB: 59600B41H31N000		 CYLINDER ASSY, FRONT MASTER 1 Rp820.000
7 59600-21810-000
SUB: 59600B21810N000		 .PISTON & CUP SET 1 Rp73.500
8 59666-44300-000
SUB: 59666B44300N000		 ..BOOT 1 Rp16.000
9 59664-32F00-000
SUB: 59664B32F00N000		 .PROTECTOR 1 Rp20.500
10 59667-44B00-000
SUB: 59667-44B00L000		 .DIAPHRAGM 1 Rp13.000
11 59668-21D20-000
SUB: 59668B21D20N000		 .PLATE, DIAPHRAGM 1 Rp3.000
12 59669-21D20-000
SUB: 59669B21D20N000		 .CAP 1 Rp40.000
13 59671-27C00-000
SUB: 59671B27C00N000		 .HOLDER 1 Rp18.000
14 59675-06F10-000
SUB: 59675B06F10N000		 .BOLT, HOLDER 1 Rp4.500
15 69689-49300-000
SUB: 69689B49300N000		 .SCREW, CAP 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
