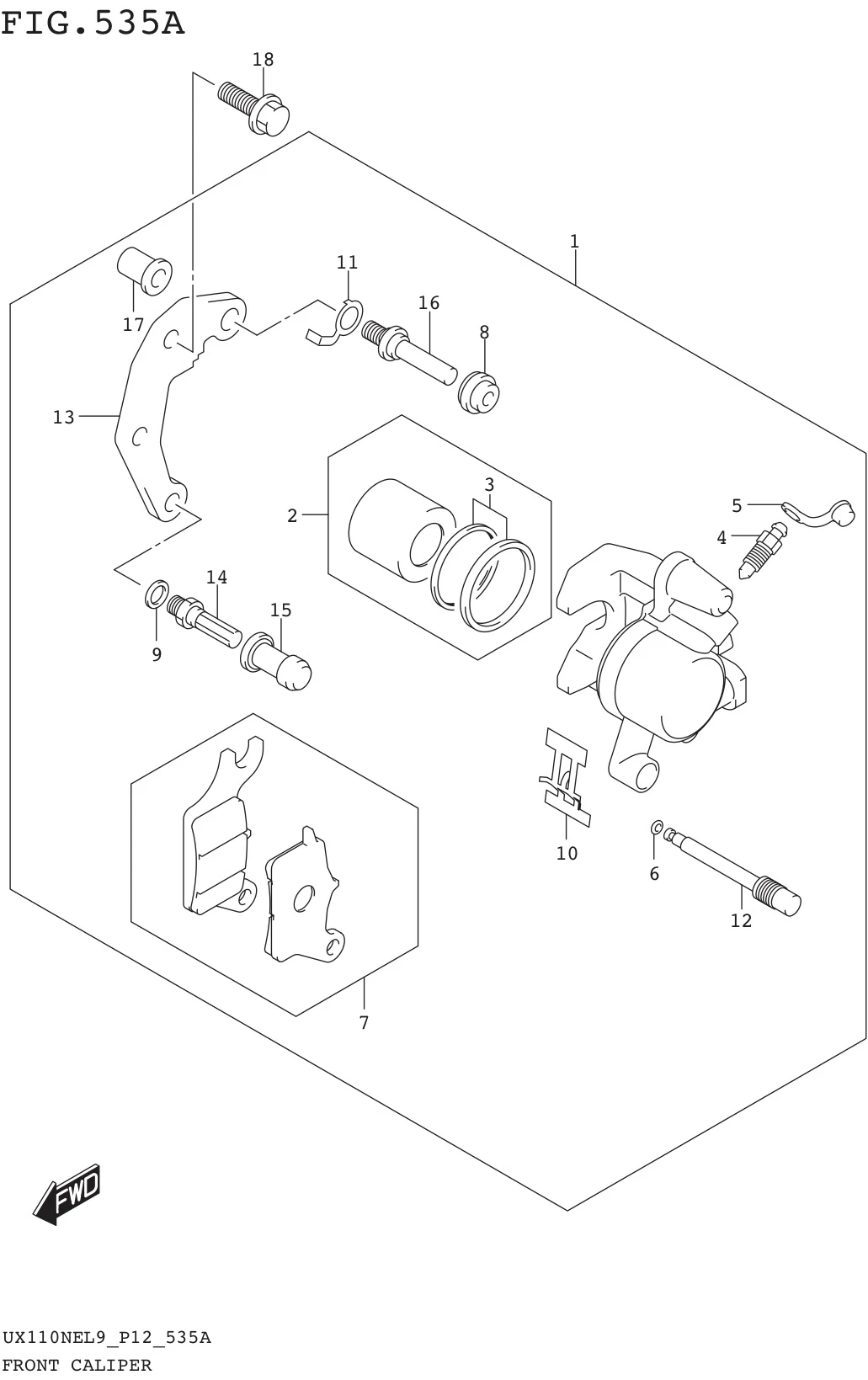

FIG. 535A FRONT CALIPER

FIG. 535A FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59300-08K30-000 CALIPER ASSY,FRONT 1 Rp743.500
2 59100-08820-000 .PISTON SET 1 Rp82.000
3 69100-13820-000 ..SEAL SET, PISTON 1 Rp107.000
4 59121-01A00-000
SUB: 59121-01A00L000		 .BLEEDER 1 Rp14.500
5 59122-01A00-000
SUB: 59122B01A00N000		 .CAP, BLEEDER 1 Rp3.000
6 59145-37F00-000 .RING, STOPPER 1 Rp27.000
7 59300-08850-000 .PAD SET 1 Rp120.000
8 59303-14500-000
SUB: 59303B14500N000		 .BOOT 1 Rp12.500
9 59314-13A00-000
SUB: 59314B13A00N000		 .WASHER 1 Rp3.000
10 59315-08K00-000 .SPRING, PAD 1 Rp10.000
11 59333-08K00-000 .RETAINER BRACKET 1 Rp5.500
12 59345-08K00-000 .PIN HANGER 1 Rp13.500
13 59351-08K30-000 .BRACKET FRONT 1 Rp35.500
14 59382-13A00-000
SUB: 59382B13A00N000		 .BOLT 1 Rp13.500
15 59386-13A00-000
SUB: 59386B13A00N000		 .BOOT 1 Rp14.000
16 59387-08K00-000 .PIN, BOLT 1 Rp11.500
17 59388-41HA0-000
SUB: 59388B41HA0N000		 .NUT 1 Rp13.000
18 01550-0825A-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
