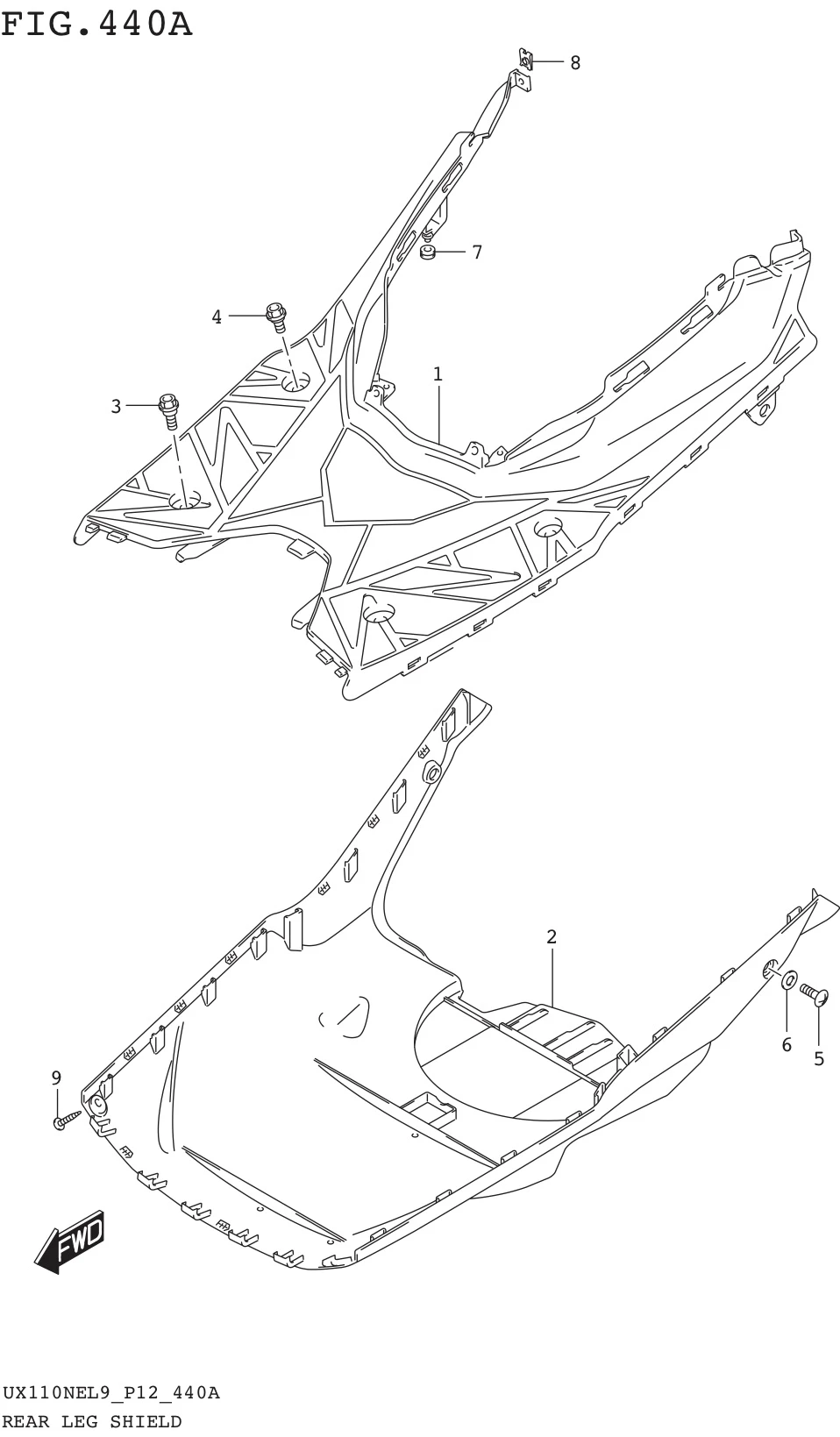

FIG. 440A REAR LEG SHIELD

FIG. 440A REAR LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48121-49K00-000 FOOTBOARD, LEG SHIELD 1 Rp85.000
2 48131-49K00-000 COVER, UNDER 1 Rp79.500
3 09111-06072-000 BOLT (6X17.8) 2 Rp3.500
4 09111-06102-000 BOLT (6X14.8) 2 Rp3.500
5 02142-0612A-000
SUB: 02142B0612BN000		 SCREW 2 Rp4.000
6 09160-06126-000
SUB: 09160B06126N000		 WASHER(6.5X14X2) 2 Rp3.000
7 48169-12JA0-000
SUB: 09320B08018N000		 CUSHION 2 Rp15.000
8 09148-04019-000
SUB: 09148B04019N000		 NUT 4 Rp6.500
9 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
