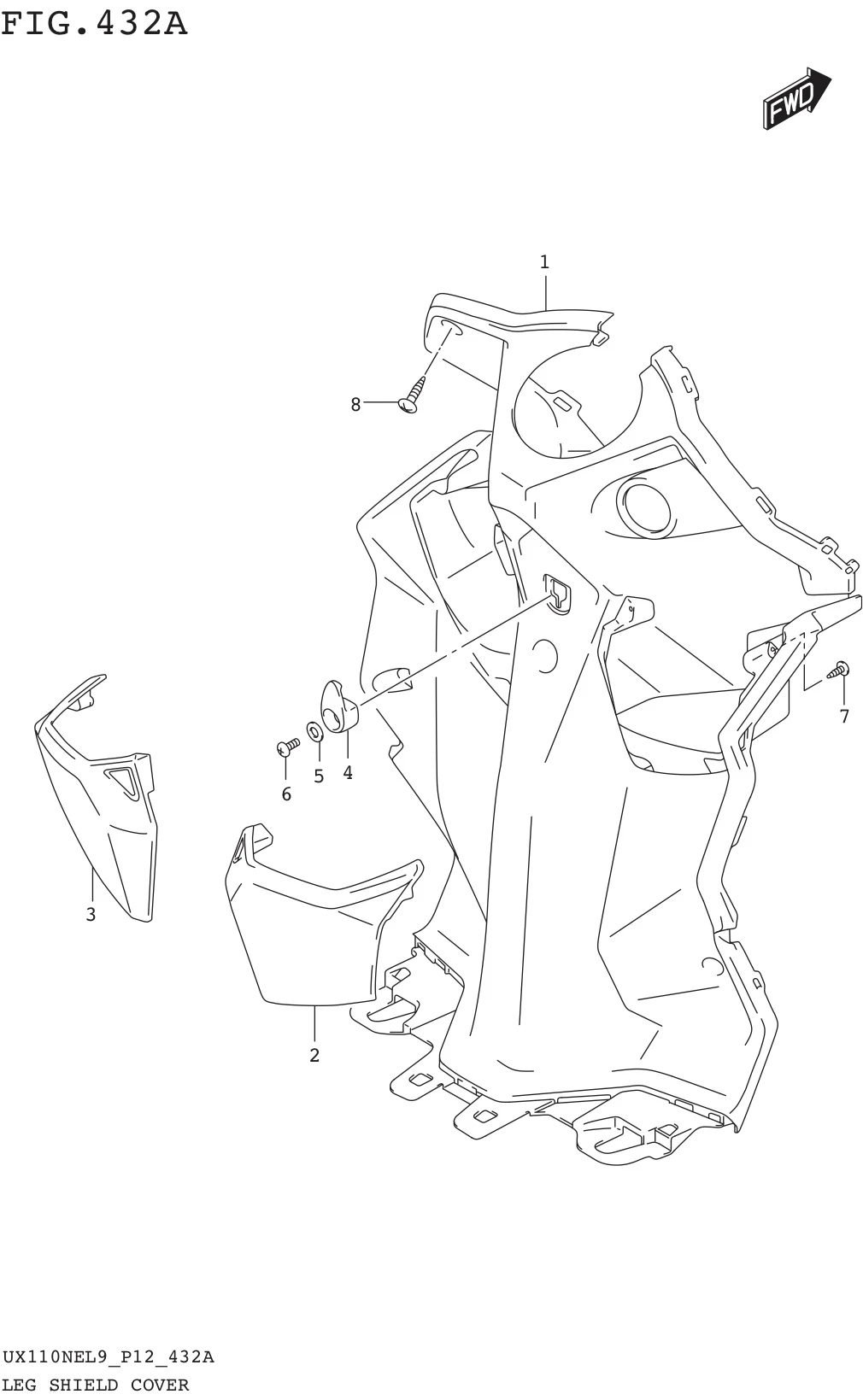

FIG. 432A LEG SHIELD COVER

FIG. 432A LEG SHIELD COVER
No No. Part Description Qty Price Per Pcs Remarks
1 92111-49K00-000 COVER, LEG SHIELD UPPER 1 Rp84.000
2 92112-49K00-000 RACK, LEG SHIELD, RH 1 Rp46.000
3 92113-49K00-000 RACK, LEG SHIELD, LH 1 Rp49.000
4 92171-32G00-291 HOOK, LEG SHIELD (BLACK) 1 Rp15.500
5 09160-06126-000
SUB: 09160B06126N000		 WASHER (6.5X14X2) 1 Rp3.000
6 02142-0612A-000
SUB: 02142B0612BN000		 SCREW 1 Rp4.000
7 03541-0416A-000 SCREW 8 Rp3.500
8 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 6 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
