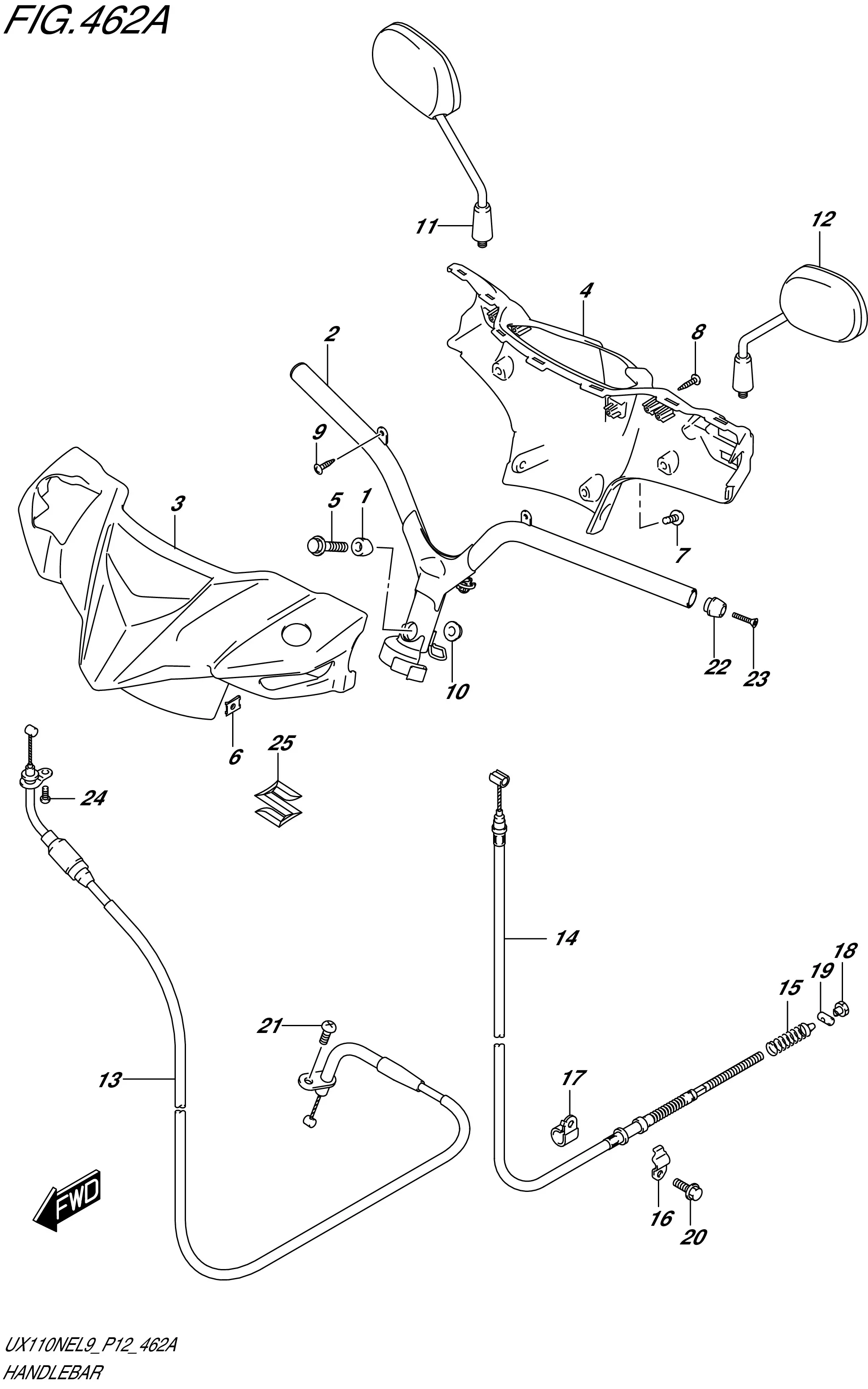

FIG. 462A HANDLEBAR

FIG. 462A HANDLEBAR
No No. Part Description Qty Price Per Pcs Remarks
1 51358-09G00-000 STOPPER, HANDLEBAR 1 Rp8.000
2 56110-09J10-000
SUB: 56110B09J10N000		 HANDLEBAR 1 Rp125.000
3-1 56311-49K00-YUH COVER, HANDLE FRONT (WHITE) 1 Rp194.500
3-2 56311-49K00-YVU COVER, HANDLE FRONT (BLACK) 1 Rp194.500
3-3 56311-49K00-YZE COVER, HANDLE FRONT (RED) 1 Rp194.500
3-4 56311-49K00-291 COVER, HANDLE FRONT (BLACK) 1 Rp194.500
3-5 56311-49K00-YUA COVER, HANDLE FRONT (BLUE) 1 Rp194.500
4 56321-49K00-000 COVER, HANDLE REAR 1 Rp41.000
5 09103-10126-000
SUB: 09103B10126N000		 BOLT (10X48) 1 Rp28.500
6 09148-04019-000
SUB: 09148B04019N000		 NUT 2 Rp6.500
7 02142-0512B-000 SCREW 1 Rp5.500
8 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 4 Rp4.500
9 03541-0516A-000 SCREW 2 Rp3.500
10 08319-3110A-000 NUT 1 Rp4.500
11 56500-09J61-000 MIRROR ASSY, REAR VIEW RH 1 Rp89.000
12 56600-09J61-000 MIRROR ASSY, REAR VIEW LH 1 Rp89.000
13 58300-49K00-000 CABLE ASSY, THROTTLE 1 Rp93.000
14 58510-40J12-000
SUB: 58510-40J11-000		 CABLE, REAR BRAKE 1 Rp87.500
15 58562-09J00-000 SPRING, REAR BRAKE CABLE 1 Rp3.000
16 58575-09J00-000 PLATE, REAR BRAKE CABLE 1 Rp3.500
17 DISCONTINUE
SUB: 58577-46G30-000		 CLAMP, RR BK CABLE CRKC FR 1 -
18 09150-06010-000
SUB: 09150B06010N000		 NUT 1 Rp4.500
19 09209-11002-000 PIN (11X18) 1 Rp7.500
20 01547-0610A-000 BOLT 1 Rp3.000
21 DISCONTINUE
SUB: 02112-0510A-000		 SCREW 1 -
22 56278-40J00-000 BALANCER, HANDLEBAR 2 Rp19.500
23 02122-0640B-000 SCREW 2 Rp7.000
24 02112-0512A-000 SCREW 1 Rp2.500
25 68641-22J21-000
SUB: 68641-22J20-000		 EMBLEM, "S" 1 Rp80.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
