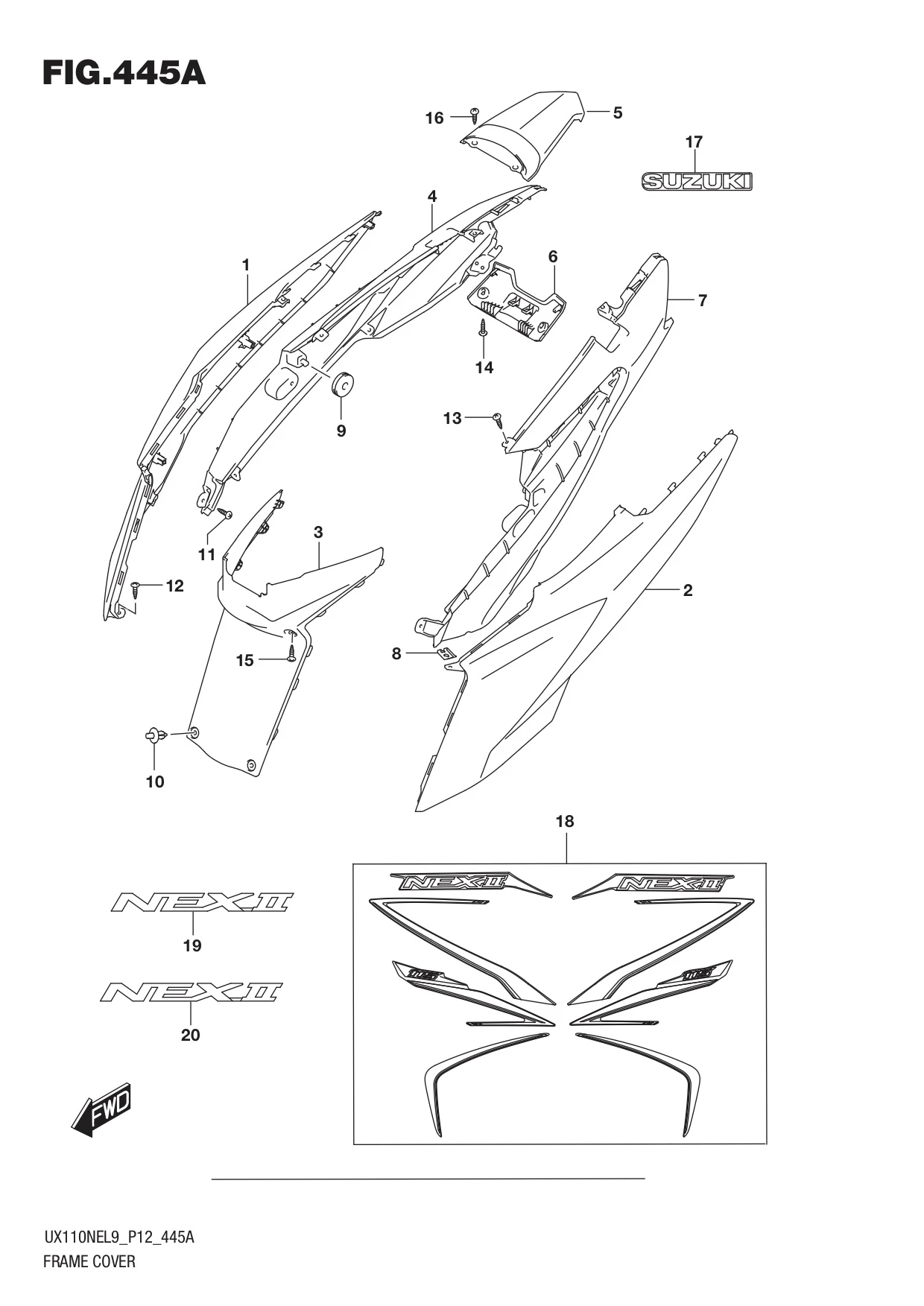

FIG. 445A FRAME COVER

FIG. 445A FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 47111-49K00-YVU COVER, FRAME RH (BLACK) 1 Rp130.500
1-3 47111-49K00-YZE COVER, FRAME RH (RED) 1 Rp130.500
1-4 47111-49K00-291 COVER, FRAME RH (BLACK) 1 Rp130.500
1-5 47111-49K00-YUA COVER, FRAME RH (BLUE) 1 Rp130.500
1-1 47111-49K00-YUH COVER, FRAME RH (WHITE) 1 Rp130.500
2-1 47211-49K00-YUH COVER, FRAME LH (WHITE) 1 Rp130.500
2-2 47211-49K00-YVU COVER, FRAME LH (BLACK) 1 Rp130.500
2-3 47211-49K00-YZE COVER, FRAME LH (RED) 1 Rp130.500
2-4 47211-49K00-291 COVER, FRAME LH (BLACK) 1 Rp130.500
2-5 47211-49K00-YUA COVER, FRAME LH (BLUE) 1 Rp130.500
3 47131-49K00-000 COVER, FRAME FRONT 1 Rp47.500
4 47121-49K00-000 COVER, FRAME LOWER RH 1 Rp41.500
5 47141-49K00-000 COVER, FRAME CENTER 1 Rp40.500
6 47151-49K00-000 COVER, FRAME CENTER LOWER 1 Rp33.000
7 47221-49K00-000 COVER, FRAME LOWER LH 1 Rp41.500
8 09148-04019-000
SUB: 09148B04019N000		 NUT 8 Rp6.500
9 48169-12JA0-000
SUB: 09320B08018N000		 CUSHION 2 Rp15.000
10 09409-06314-5PK CLIP 2 Rp3.500
11 03541-0416A-000 SCREW 6 Rp3.500
12 03541-0416A-000 SCREW 4 Rp3.500
13 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 4 Rp4.500
14 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 2 Rp4.500
15 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 2 Rp4.500
16 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 2 Rp4.500
17 68171-23K20-000
SUB: 68171-23K00-000		 EMBLEM, SUZUKI 1 Rp11.000
18-1 68000-49K00-YUH STRIPPING SET (WHITE) 1 Rp164.000 FOR YUH
18-2 68000-49K00-YVU STRIPPING SET (BLACK) 1 Rp164.000 FOR YVU
18-3 68000-49K00-YZE STRIPPING SET (RED) 1 Rp167.000 FOR YZE
19 68131-49K00-000 EMBLEM, FRAME COVER, RH 1 Rp35.000 FOR 291, YUA
20 68141-49K00-000 EMBLEM, FRAME COVER, LH 1 Rp35.000 FOR 291, YUA

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
