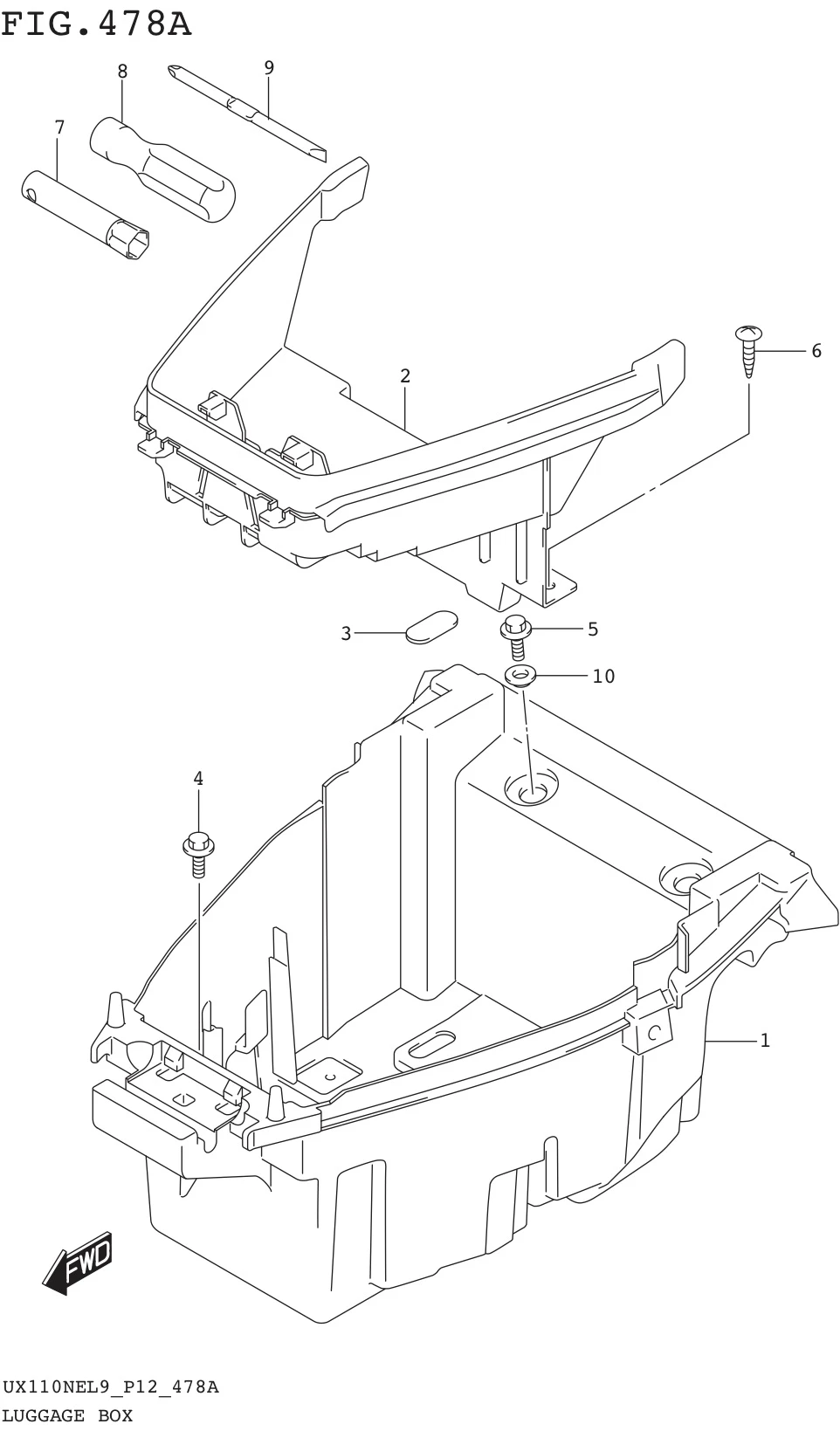

FIG. 478A LUGGAGE BOX

FIG. 478A LUGGAGE BOX
No No. Part Description Qty Price Per Pcs Remarks
1 92210-09J03-000 BOX, LUGGAGE 1 Rp169.500
2 92212-09J10-000
SUB: 92212B09J10N000		 LID, BATTERY BOX 1 Rp30.000
3 92223-41H10-000
SUB: 92223B41H10N000		 PLUG, LUGGAGE BOX 1 Rp6.000
4 09111-06109-000 BOLT (6X14.8) 2 Rp4.000
5 01550-0616A-000 BOLT 2 Rp3.500
6 03541-0516A-000 SCREW 2 Rp3.500
7 96512-10J00-000 SPANNER, BOX (16) 1 Rp10.500
8 09814-00016-000 DRIVER GRIP 1 Rp5.500
9 09814-00030-000 DRIVER 1 Rp7.000
10 44549-09J10-000
SUB: 44549B09J10N000		 WASHER 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
