  5. FIG. 460A FRONT FENDER

NEX II

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 407A STANDFIG. 417A PILLION FOOTRESTFIG. 420A FUEL TANKFIG. 432A LEG SHIELD COVERFIG. 435A FRONT LEG SHIELDFIG. 440A REAR LEG SHIELDFIG. 445A FRAME COVERFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 478A LUGGAGE BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 537A FRONT MASTER CYLINDERFIG. 545A REAR SHOCK ABSORBERFIG. 550A REAR WHEEL

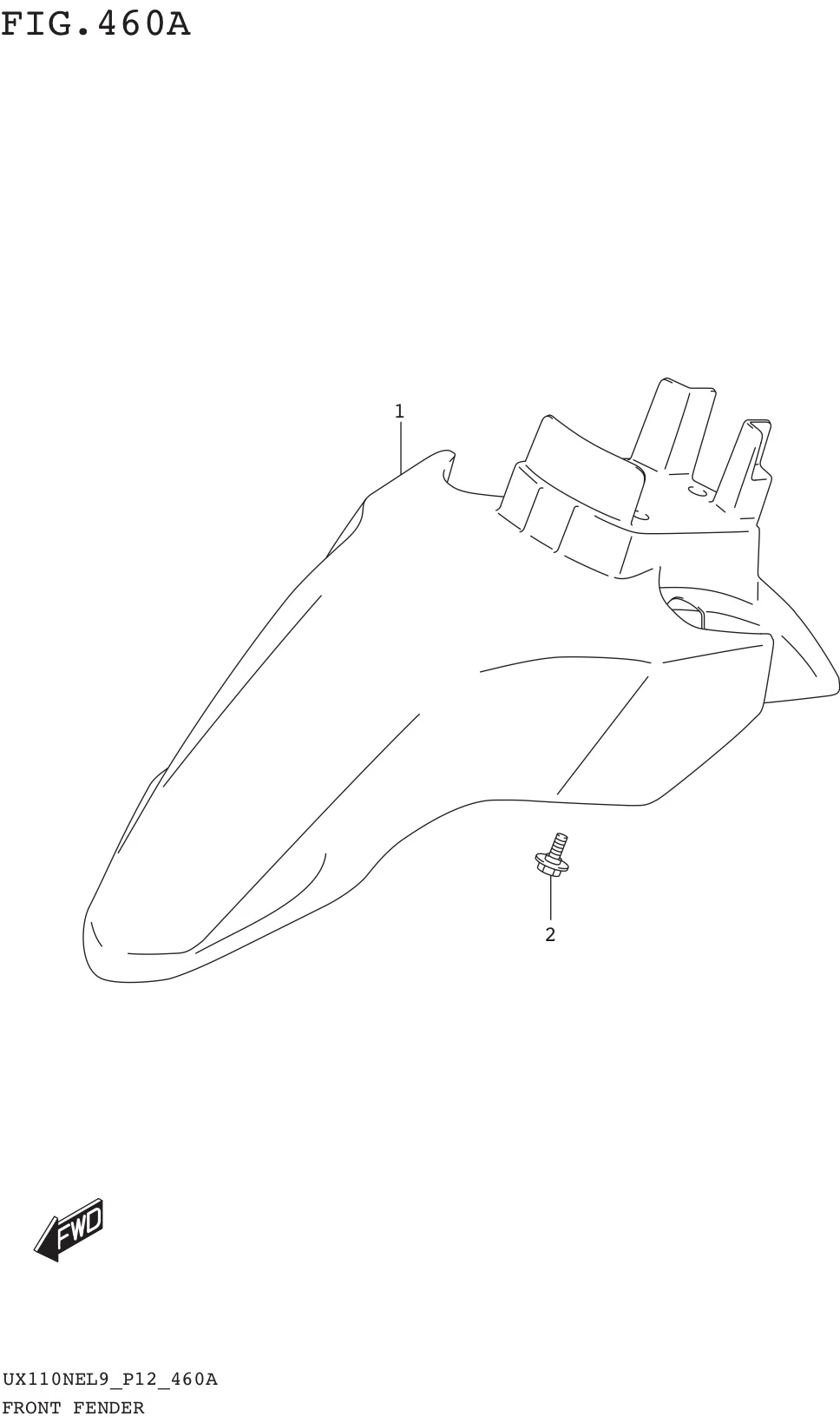

FIG. 460A FRONT FENDER

FIG. 460A FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1-1 53111-49K00-YUH FENDER, FRONT (WHITE) 1 Rp133.000
1-2 53111-49K00-YVU FENDER, FRONT (BLACK) 1 Rp133.000
1-3 53111-49K00-YZE FENDER, FRONT (RED) 1 Rp133.000
1-4 53111-49K00-291 FENDER, FRONT (BLACK) 1 Rp133.000
1-5 53111-49K00-YUA FENDER, FRONT (BLUE) 1 Rp133.000
2 09111-06109-000 BOLT (6X14.8) 3 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
