NEX II

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 407A STANDFIG. 417A PILLION FOOTRESTFIG. 420A FUEL TANKFIG. 432A LEG SHIELD COVERFIG. 435A FRONT LEG SHIELDFIG. 440A REAR LEG SHIELDFIG. 445A FRAME COVERFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 478A LUGGAGE BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 537A FRONT MASTER CYLINDERFIG. 545A REAR SHOCK ABSORBERFIG. 550A REAR WHEEL

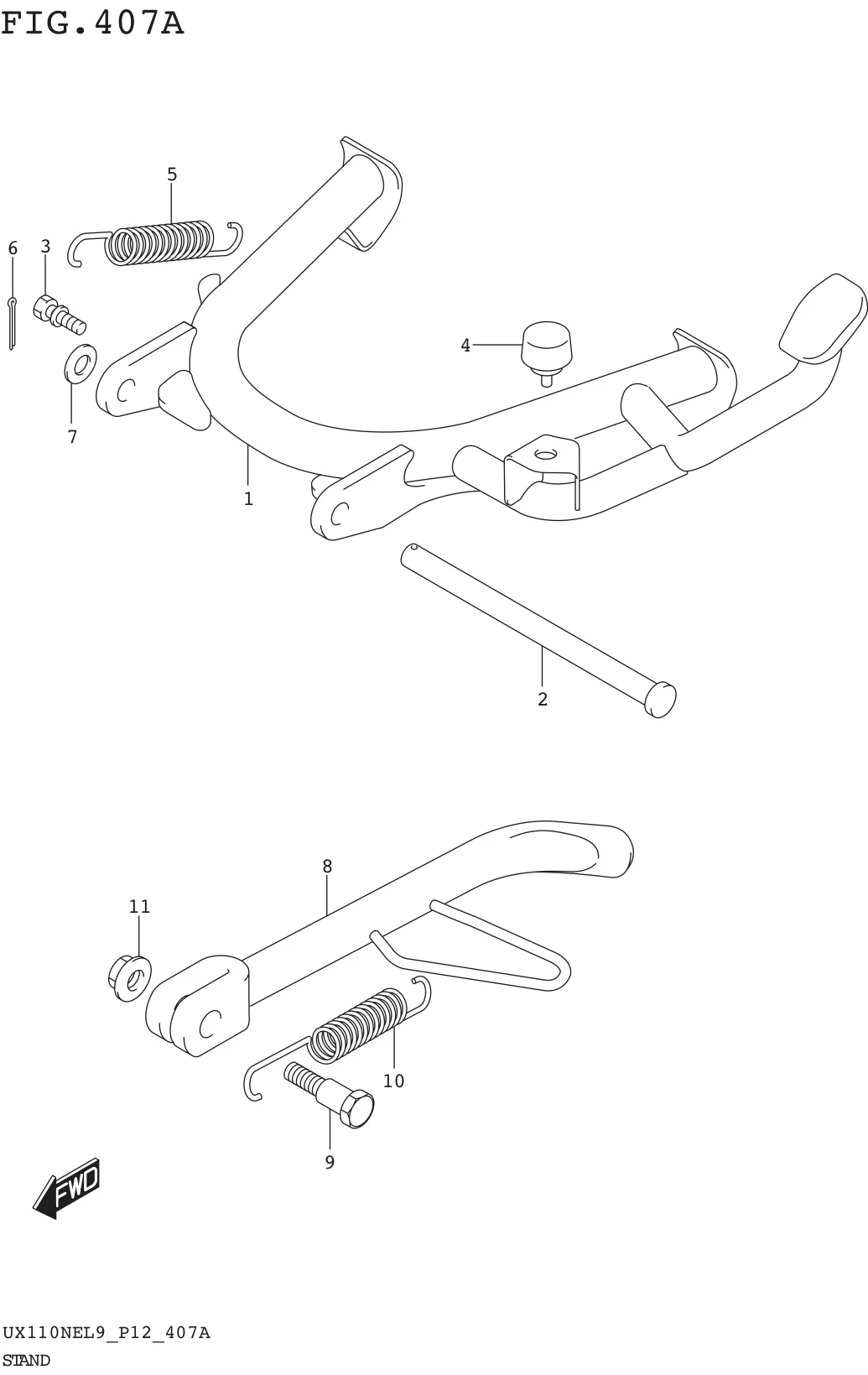

FIG. 407A STAND

FIG. 407A STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42100-49K00-000 STAND, CENTER 1 Rp118.000
2 42211-39J00-000 SHAFT, CENTER STAND 1 Rp12.500
3 42251-46G10-000 HOOK, CENTER STAND SPRING 1 Rp10.000
4 42272-09J00-000 CUSHION, CENTER STAND 1 Rp6.000
5 09443-18025-000 SPRING 1 Rp15.000
6 04111-3020A-000 PIN 1 Rp2.500
7 08322-0110B-000
SUB: 08322B0110BN000		 WASHER 1 Rp4.500
8 42310-09J00-000
SUB: 42310B09J00N000		 STAND, PROP 1 Rp38.000
9 42341-09G01-000
SUB: 42341B09G01N000		 BOLT, PROP STAND 1 Rp5.000
10 42421-09J00-000
SUB: 42421B09J00N000		 SPRING, PROP STAND 1 Rp4.000
11 08319-3110A-000 NUT 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
