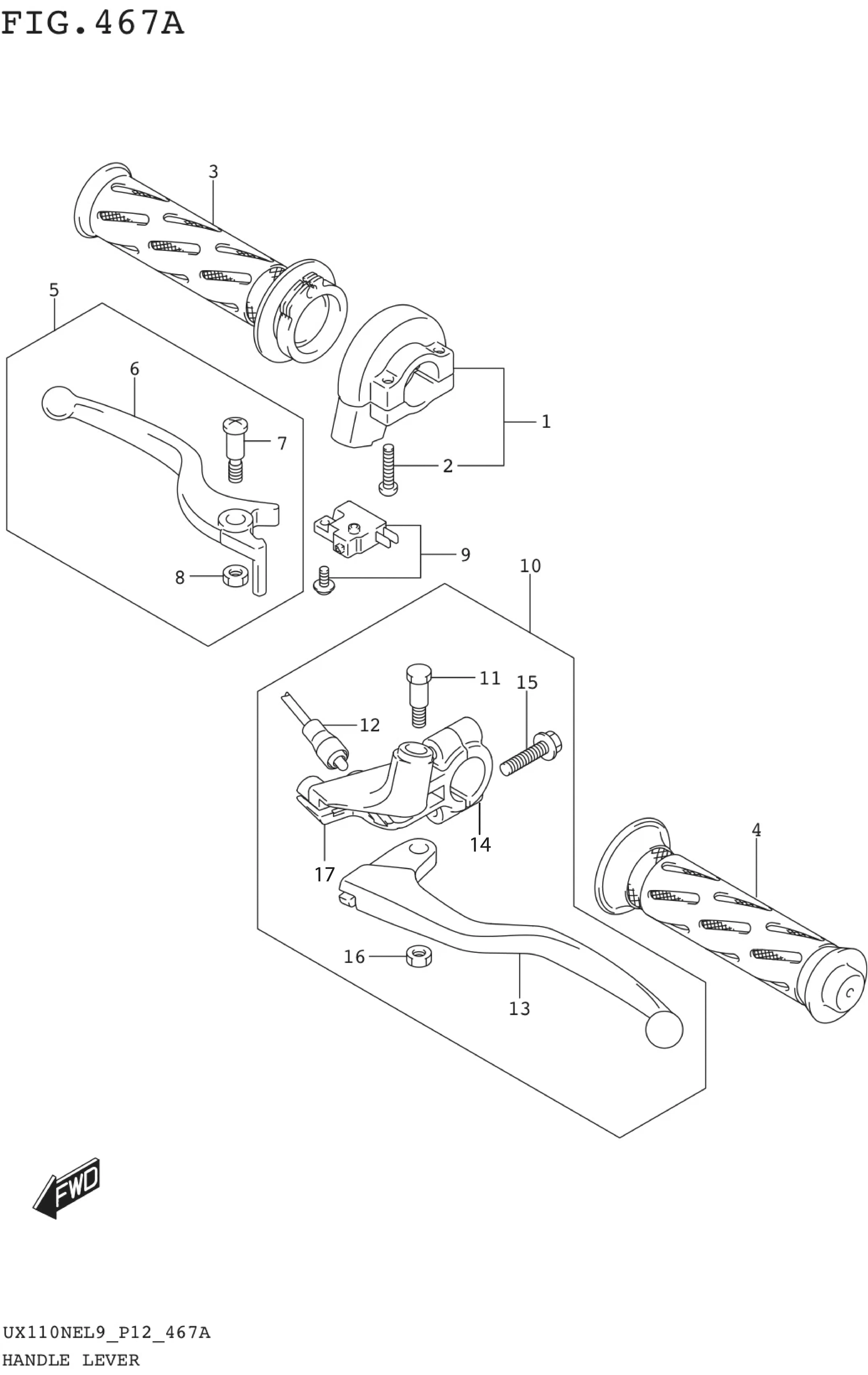

FIG. 467A HANDLE LEVER

FIG. 467A HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57100-09G11-000
SUB: 57100B09G11N000		 CASE ASSY, THROTTLE 1 Rp19.500
2 DISCONTINUE
SUB: 02112-0520A-000		 .SCREW 2 -
3 57110-09GE0-000
SUB: 57110B09GE0N000		 GRIP, THROTTLE 1 Rp25.500
4 57211-22D50-000
SUB: 57211B22D50N000		 GRIP LH 1 Rp20.500
5 57300-41HB0-000
SUB: 57300B41HB0N000		 LEVER ASSY, BRAKE 1 Rp52.000
6 57421-41HB0-000
SUB: 57421B41HB0N000		 .LEVER, BRAKE 1 Rp25.500
7 57431-29C20-000 .BOLT, BRAKE LEVER PIVOT 1 Rp5.000
8 08319-2106A-000 .NUT 1 Rp5.000
9 57460-41H00-000
SUB: 57460B41H00N000		 SWITCH ASSY, STOP 1 Rp69.500
10 57051-49K10-000
SUB: 57500B09J20N000		 LEVER ASSY, RR BRAKE & SWITCH 1 Rp143.500
11 57431-13HA0-000
SUB: 57431B13H20N000		 .BOLT, BRAKE LEVER PIVOT 1 Rp5.500
12 57470-10J40-000
SUB: 57470-10J10-000		 .SWITCH ASSY, BRAKE 1 Rp46.500
13 57621-13HA0-000
SUB: 57621B13H10N000		 .LEVER, REAR BRAKE 1 Rp32.500
14 59671-13HA0-000
SUB: 59671B09J20N000		 .HOLDER 1 Rp13.500
15 01547-0625A-000 .BOLT 1 Rp6.500
16 08319-2106A-000 .NUT 1 Rp5.000
17 57511-13HA0-000 .HOLDER BRAKE LEVER L 1 Rp43.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
