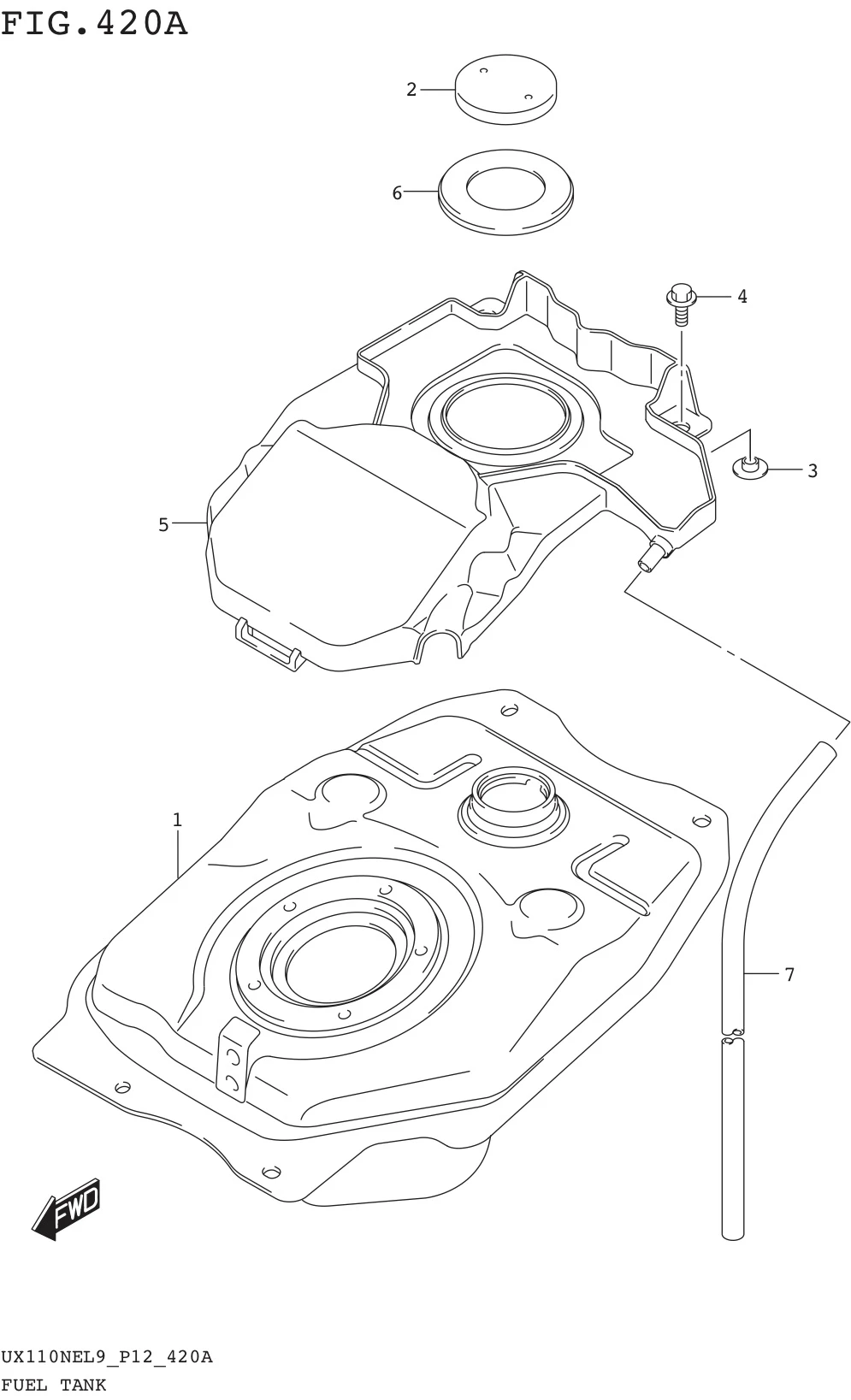

FIG. 420A FUEL TANK

FIG. 420A FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 44110-49K00-000 TANK, FUEL 1 Rp336.000
2 44210-09J00-000 CAP, FUEL TANK FILLER 1 Rp19.500
3 44549-09J00-000
SUB: 44549B09J00N000		 WASHER, FUEL TANK REAR 2 Rp4.500
4 01550-0616A-000 BOLT 2 Rp3.500
5 44271-09J01-000
SUB: 44271B09J01N000		 COVER, FUEL TANK 1 Rp34.000
6 44261-41H10-000 RUBBER, FUEL TANK INLET 1 Rp5.500
7 09352-70120-760
SUB: 09352-70L05-760		 HOSE 1 Rp26.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
