New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEAR SHIFT FORK (5MT)AT TRANSMISSION ASSY (4AT)AT OIL PUMP (4AT)AT INPUT SHAFT (4AT)AT PLANETARY GEAR (4AT)AT REDUCTION GEAR (4AT)AT FORWARD CLUTCH (4AT)AT 1ST/REVERSE BRAKE (4AT)AT OVER DRIVE BRAKE (4AT)AT TRANSMISSION CASE (4AT)AT OIL PAN (4AT)AT VALVE (4AT)AT PARKING LOCK (4AT)AT OILHOSE (4AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (4AT)SELECT LEVER (4AT)FRONT DIFFERENTIAL GEAR (5MT)FRONTDIFFERENTIAL GEAR (4AT)

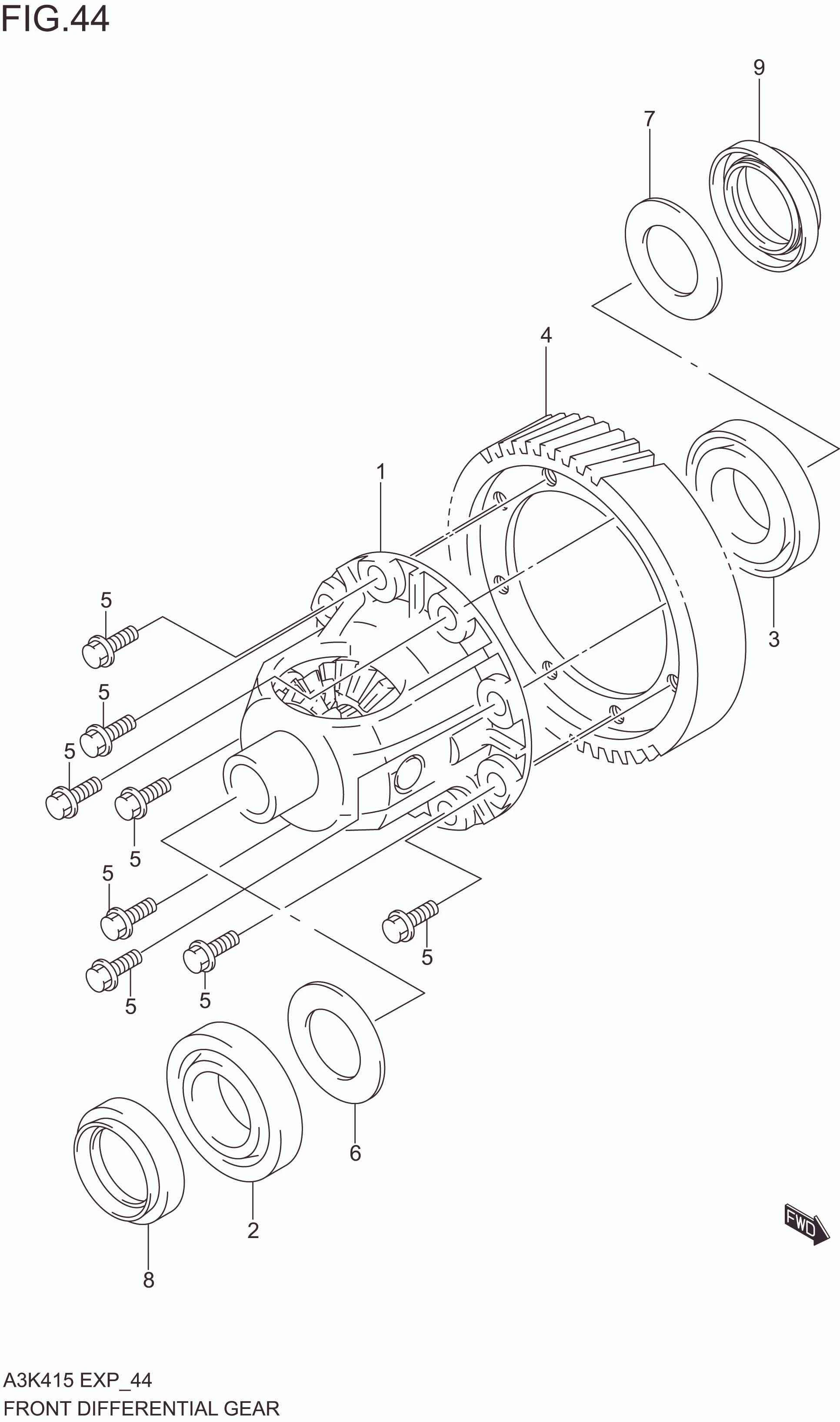

FRONTDIFFERENTIAL GEAR (4AT)

FRONTDIFFERENTIAL GEAR (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 27310-77MT0-000 GEAR ASSY, DIFFERENTIAL 1 Rp5.218.000
2 27481-68J10-000 BEARING ASSY, DIFF SIDE RH 1 Rp422.500
3 27485-68J10-000 BEARING ASSY, DIFF SIDE LH 1 Rp417.000
4 DISCONTINUE
SUB: 27511-55G10-000		 GEAR, FINAL DRIVEN 1 -
5 27516-77M10-000 BOLT, FINAL GEAR 8 Rp162.000
6 27453-77M10-000 SHIM, DIFF SIDE BRG RH 1 Rp88.000
7 27454-77MT0-000 SHIM SET, DIFF SIDE BRG 1 Rp1.276.500
8 27611-77M10-000 SEAL, DIFF SIDE OIL RH 1 Rp114.500
9 27612-77M10-000 SEAL, DIFF SIDE OIL LH 1 Rp121.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
