New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body

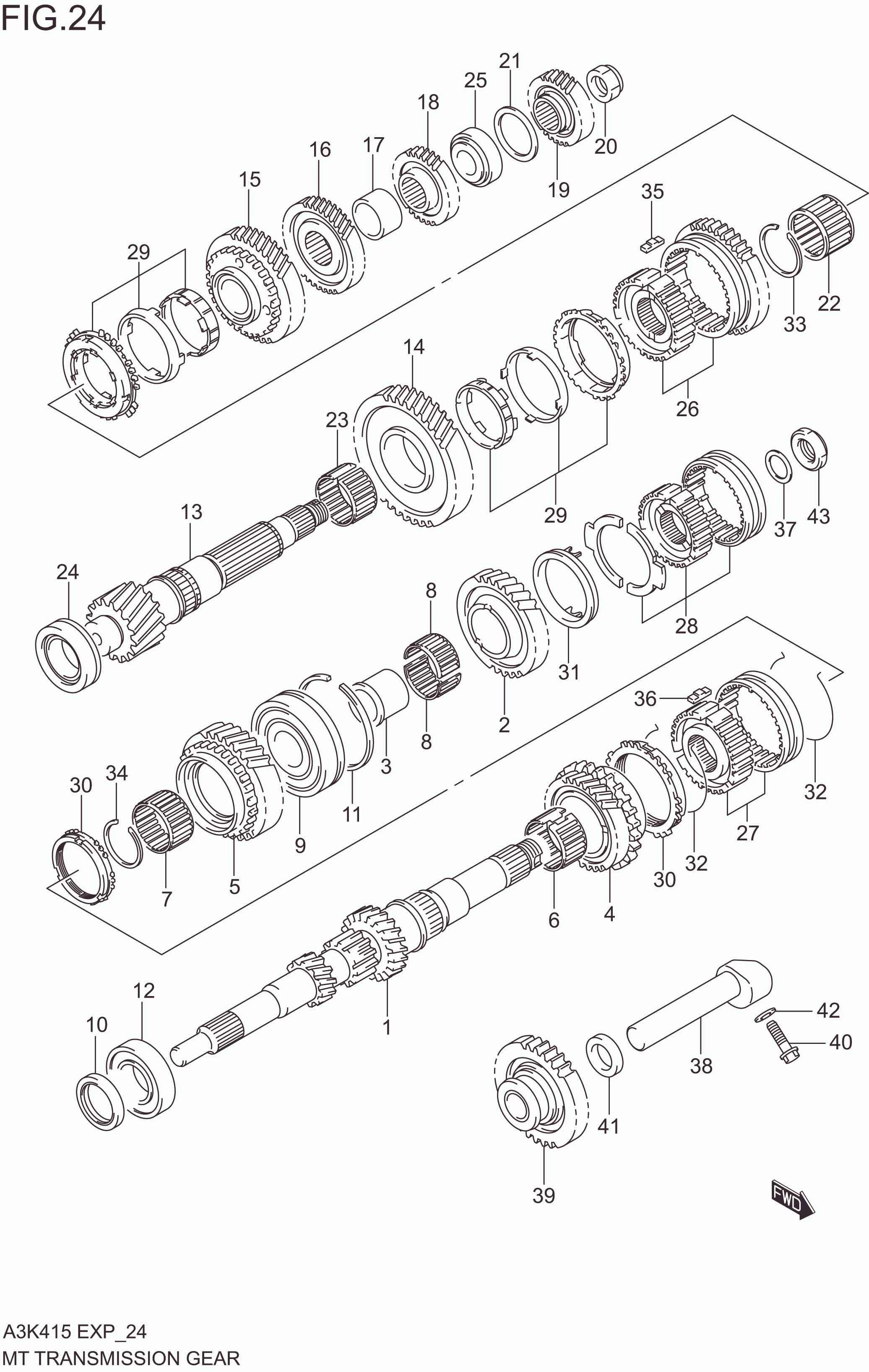

MT TRANSMISSION GEAR (5MT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	24111M79M00-000	SHAFT, TRANSMISSION INPUT	1	Rp2.298.000
2	24114M84PA0-000	GEAR, INPUT SHAFT 5TH	1	Rp912.000
3	24119M79MB0-000	SPACER, INPUT SHAFT 5TH GEAR	1	Rp51.500
4	24230M86JA1-000	GEAR, INPUT SHAFT 3RD	1	Rp1.082.500
5	24240M84PA0-000	GEAR, INPUT SHAFT 4TH	1	Rp1.176.500
6	24283M86J00-000	BEARING, 3RD GEAR NEEDLE	1	Rp48.500
7	24284M86J00-000	BEARING, 4TH GEAR NEEDLE	1	Rp47.500
8	24285M79MA0-000	BEARING, 5TH GEAR NEEDLE	2	Rp25.000
9	24165M86J00-000	BEARING, INPUT SFT LH	1	Rp195.000
10	24151M86J00-000	SEAL, INPUT SHAFT OIL	1	Rp18.500
11	09380-72002-000	RING, SNAP (68.1X1.65)	1	Rp42.500
12	24155M86J00-000	BEARING, INPUT SFT RH	1	Rp186.500
13	24131M72R00-000	SHAFT, TRANSMISSION COUNTER	1	Rp1.196.000
14	24311M86JA0-000	GEAR, COUNTERSHAFT 1ST	1	Rp1.467.500
15	24321M86JA1-000	GEAR, COUNTERSHAFT 2ND	1	Rp465.000
16	24331M86JA0-000	GEAR, COUNTERSHAFT 3RD	1	Rp314.000
17	24336M86J00-000	SPACER, 3RD&4TH GEAR	1	Rp50.500
18	24341M84PA0-000	GEAR, COUNTERSHAFT 4TH	1	Rp416.500
19	24351M84PA0-000	GEAR, COUNTERSHAFT 5TH	1	Rp288.000
20	09159-20009-000	NUT (M20)	1	Rp74.000
21-12	09181-41015-000	SHIM (T:1.20)	1	Rp44.500
21-11	09181-41014-000	SHIM (T:1.15)	1	Rp44.000
21-10	09181-41013-000	SHIM (T:1.10)	1	Rp44.000
21-9	09181-41012-000	SHIM (T:1.05)	1	Rp44.000
21-8	09181-41011-000	SHIM (T:1.00)	1	Rp47.500
21-7	09181-41010-000	SHIM (T:0.95)	1	Rp44.000
21-5	09181-41008-000	SHIM (T:0.85)	1	Rp44.000
21-4	09181-41007-000	SHIM (T:0.80)	1	Rp47.500
21-3	09181-41006-000	SHIM (T:0.75)	1	Rp44.000
21-2	09181-41005-000	SHIM (T:0.70)	1	Rp44.000
21-1	09181-41004-000	SHIM (T:0.65)	1	Rp44.000
21-6	09181-41009-000	SHIM (T:0.90)	1	Rp44.000
22	24382M86J20-000 SUB: 24382M86J00-000	BEARING, 2ND GEAR NEEDLE	1	Rp117.000
23	24381M86J20-000 SUB: 24381M86J00-000	BEARING, 1ST GEAR NEEDLE (37X42X27.8)	1	Rp56.500
24	24175M50R00-000	BEARING ASSY, COUNTERSHAFT RH	1	Rp272.000
25	24185M50R00-000	BEARING ASSY, COUNTERSHAFT LH	1	Rp277.000
26	24400M56RA0-000	HUB ASSY, LOW SPEED SYNC	1	Rp736.500
27	24410M74LB0-000 SUB: 24410M74LA1-000	HUB ASSY, HIGH SPEED SYNC	1	Rp1.077.000
28	24420M79MB0-000	HUB ASSY, 5TH SPEED SYNC	1	Rp1.980.000
29	24430M50R00-000	RING ASSY, 1ST & 2ND GEAR SYNC	2	Rp498.000
30	24432M86J00-000	RING, SYNC HIGH SPEED	2	Rp139.000
31	24435M79MA0-000	RING, 5TH SPEED SYNC	1	Rp241.500
32	24442-70C00-000	SPRING, HIGH SPEED SYNC	2	Rp23.000
33	24451M78L00-000	CIRCLIP, LOW SPEED SYNC HUB	1	Rp6.000
34	24452M86J00-000	CIRCLIP, HIGH SPEED SYNC HUB	1	Rp10.000
35	24471M50R00-000	KEY, LOW SPEED SYNCHRONIZER	3	Rp27.000
36	24472-60B00-000	KEY, HIGH SPEED SYNCHRONIZER	3	Rp25.000
37	09160M21022-000	WASHER	1	Rp5.500	9 COLOR:A8D
38	24551M86J00-000	SHAFT, TRANSAXLE REVERSE GEAR	1	Rp73.000	9 COLOR:CC7,KGL
39	24560-70C60-000	GEAR, REVERSE IDLER	1	Rp924.000	9 COLOR:CC8
40	24565M53M00-000	BOLT, REVERSE SHAFT	1	Rp9.500	9 COLOR:A8D
41	09161-18004-000	WASHER (18X27X5.5)	1	Rp34.500	9 COLOR:CC7
42	09168M08030-000 SUB: 09168-08030-000	WASHER (8.2X17X1)	1	Rp6.500	9 COLOR:CC8
43	09159-20009-000	NUT (M20)	1	Rp74.000	9 COLOR:KGL
