New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEAR SHIFT FORK (5MT)AT TRANSMISSION ASSY (4AT)AT OIL PUMP (4AT)AT INPUT SHAFT (4AT)AT PLANETARY GEAR (4AT)AT REDUCTION GEAR (4AT)AT FORWARD CLUTCH (4AT)AT 1ST/REVERSE BRAKE (4AT)AT OVER DRIVE BRAKE (4AT)AT TRANSMISSION CASE (4AT)AT OIL PAN (4AT)AT VALVE (4AT)AT PARKING LOCK (4AT)AT OILHOSE (4AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (4AT)SELECT LEVER (4AT)FRONT DIFFERENTIAL GEAR (5MT)FRONTDIFFERENTIAL GEAR (4AT)

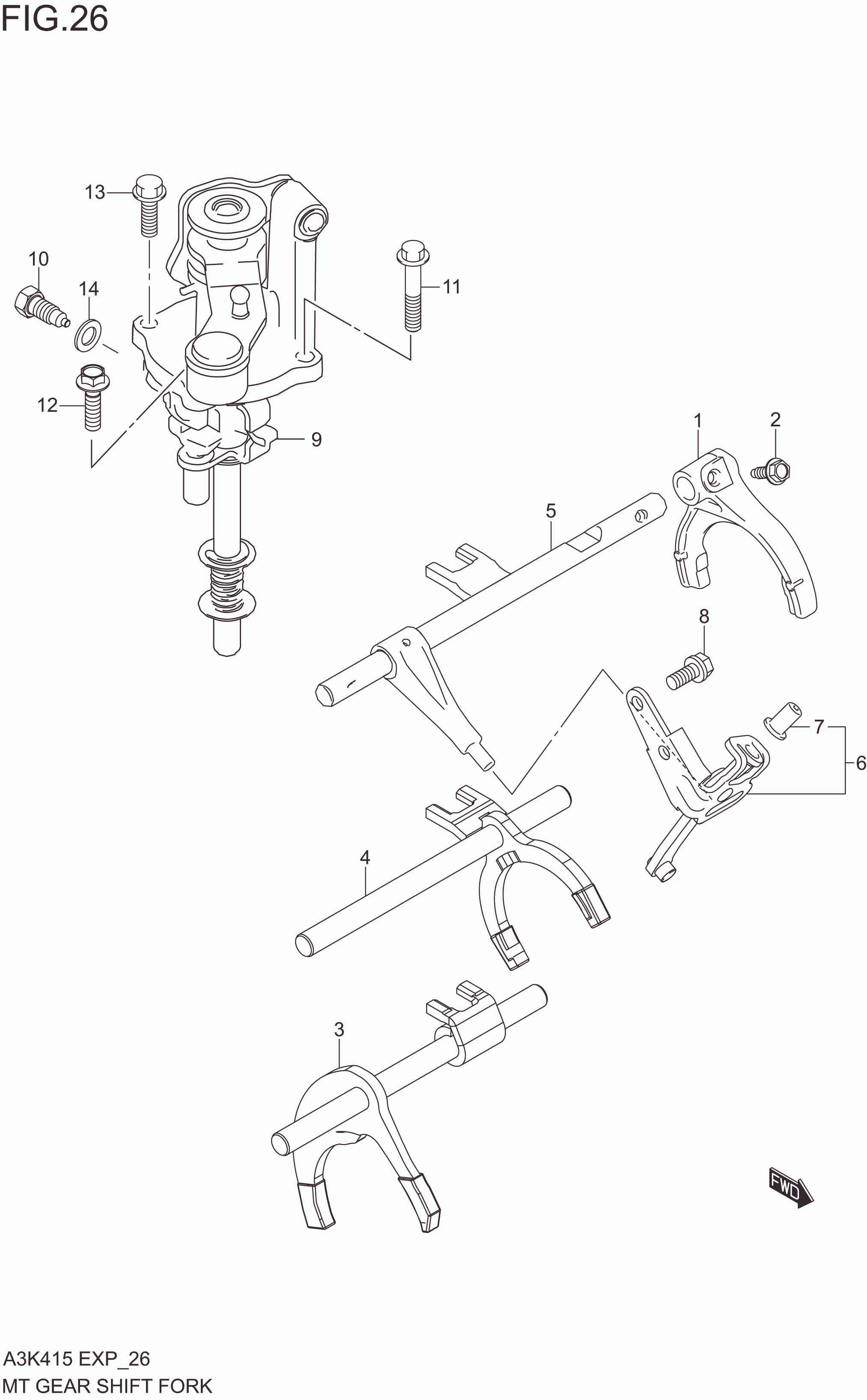

MT GEAR SHIFT FORK (5MT)

MT GEAR SHIFT FORK (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 25231M86J00-000 FORK, 5TH GEAR SHIFT 1 Rp89.500 9 COLOR:KGL
2 25291-70C00-000 BOLT, LOW&HIGH SPEED FORK 1 Rp19.500
3 25401M86JB0-000 SHAFT, LOW SPEED GEAR SHF 1 Rp535.500
4 25402M86JB0-000 SHAFT, HIGH SPEED GEAR SHF 1 Rp390.500 9 COLOR:A8D
5 25403M79MA0-000 SHAFT, 5TH & REV GEAR SHFIT 1 Rp621.500 9 COLOR:CC7
6 25460M79MA0-000 LEVER, REVERSE GEAR SHIFT 1 Rp112.500 9 COLOR:CC8
7 25250M53M20-000 .LOCATING, REV SHIFT 1 Rp20.500 9 COLOR:KGL
8 01570-0820B-000
SUB: 01570-0820A-000		 BOLT 2 Rp31.000 9 COLOR:A8D
9 25010M50R01-000 SHAFT ASSY, GEAR SHF & SELECT 1 Rp1.354.500 9 COLOR:CC7
10 25321-74PE0-000 BOLT, GEAR SHF INTERLOCK 1 Rp47.000 9 COLOR:CC8
11-1 09103M08564-000 BOLT (8X45) 2 Rp13.000 9 COLOR:KGL
11-2 09103-08366-000 BOLT (8X45) 2 Rp25.500
12 09103M08541-000 BOLT (8X25) 1 Rp10.000 HARYANA
13 01550-0825A-000
SUB: 01550-0825B-000		 BOLT 1 Rp3.500 ARAYMOND
14 08322-0110B-000
SUB: 08322-0110A-000		 WASHER 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
