New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEAR SHIFT FORK (5MT)AT TRANSMISSION ASSY (4AT)AT OIL PUMP (4AT)AT INPUT SHAFT (4AT)AT PLANETARY GEAR (4AT)AT REDUCTION GEAR (4AT)AT FORWARD CLUTCH (4AT)AT 1ST/REVERSE BRAKE (4AT)AT OVER DRIVE BRAKE (4AT)AT TRANSMISSION CASE (4AT)AT OIL PAN (4AT)AT VALVE (4AT)AT PARKING LOCK (4AT)AT OILHOSE (4AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (4AT)SELECT LEVER (4AT)FRONT DIFFERENTIAL GEAR (5MT)FRONTDIFFERENTIAL GEAR (4AT)

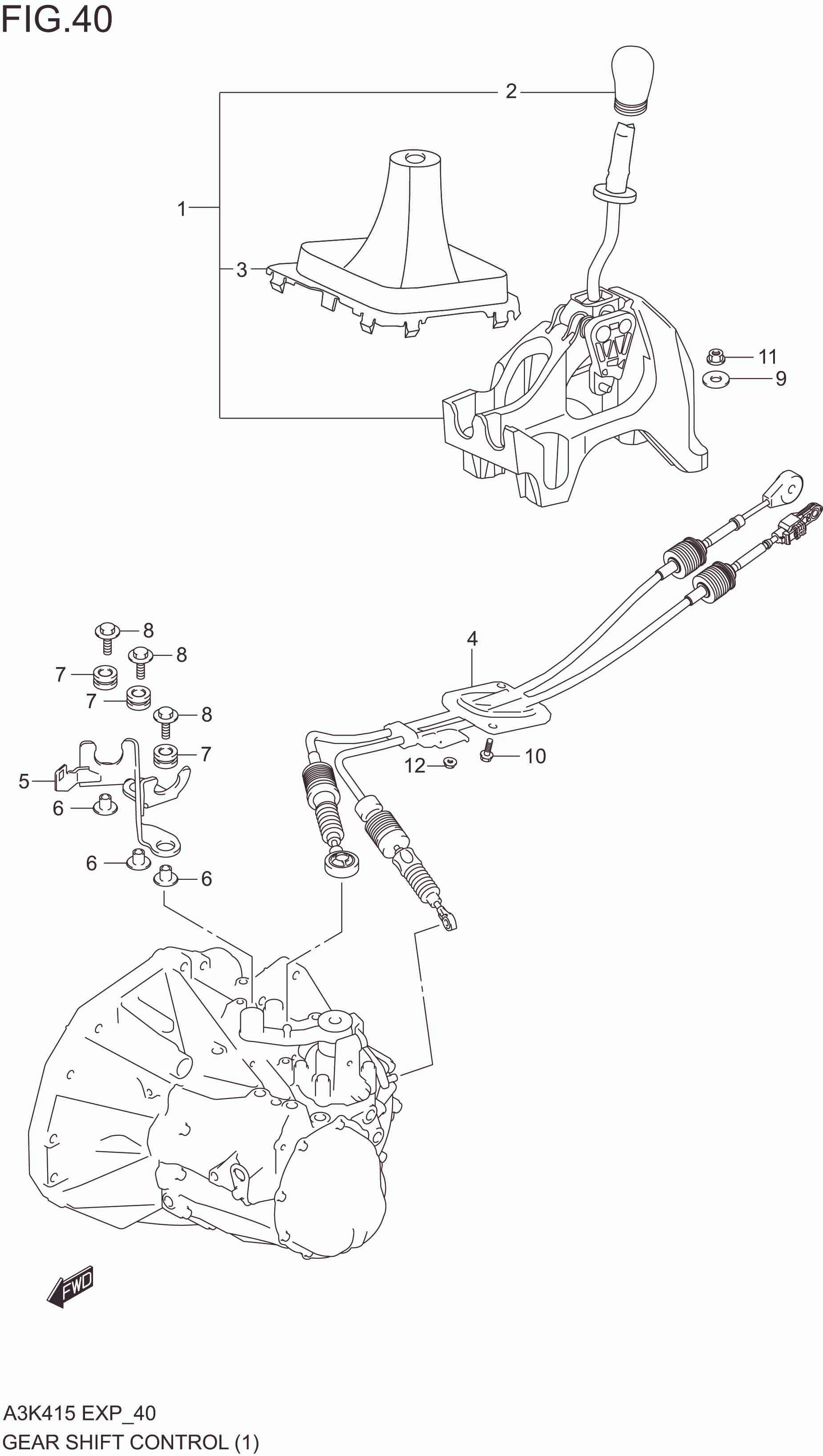

GEAR SHIFT CONTROL (5MT)

GEAR SHIFT CONTROL (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 28100M55T00-C48 LEVER ASSY,GEAR SHF CONT (BLACK/CHROME) 1 Rp756.500
2 28113M55T00-C48 .KNOB,GEAR SHIFT CONT LVR (BLACK/CHROME) 1 Rp175.000
3 28130M55T00-5PK .BOOT,SHIFT LEVER (BLACK) 1 Rp111.500
4 28300M72R60-000 CABLE ASSY, SHIFT & SELECT 1 Rp907.000
5 28391M72R00-000 BRACKET, T/M CONT CABLE 1 Rp119.500
6 28392M55KD0-000 SPACER, T/M CONT CABLE BRACKET 3 Rp8.000
7 DISCONTINUE
SUB: 28393-79M00-000		 CUSHION, CONT CABLE BRKT 3 -
8 09118-08167-000 BOLT (8X30) 3 Rp23.000
9 09160-08151-000 WASHER (8.5X26X1.6) 4 Rp16.500
10 02162-0620A-000 SCREW 2 Rp5.500
11 09159-08127-000
SUB: 09159M08153-000		 NUT 4 Rp11.000
12 08316-1006A-000 NUT (6X12) 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
