New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEAR SHIFT FORK (5MT)AT TRANSMISSION ASSY (4AT)AT OIL PUMP (4AT)AT INPUT SHAFT (4AT)AT PLANETARY GEAR (4AT)AT REDUCTION GEAR (4AT)AT FORWARD CLUTCH (4AT)AT 1ST/REVERSE BRAKE (4AT)AT OVER DRIVE BRAKE (4AT)AT TRANSMISSION CASE (4AT)AT OIL PAN (4AT)AT VALVE (4AT)AT PARKING LOCK (4AT)AT OILHOSE (4AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (4AT)SELECT LEVER (4AT)FRONT DIFFERENTIAL GEAR (5MT)FRONTDIFFERENTIAL GEAR (4AT)

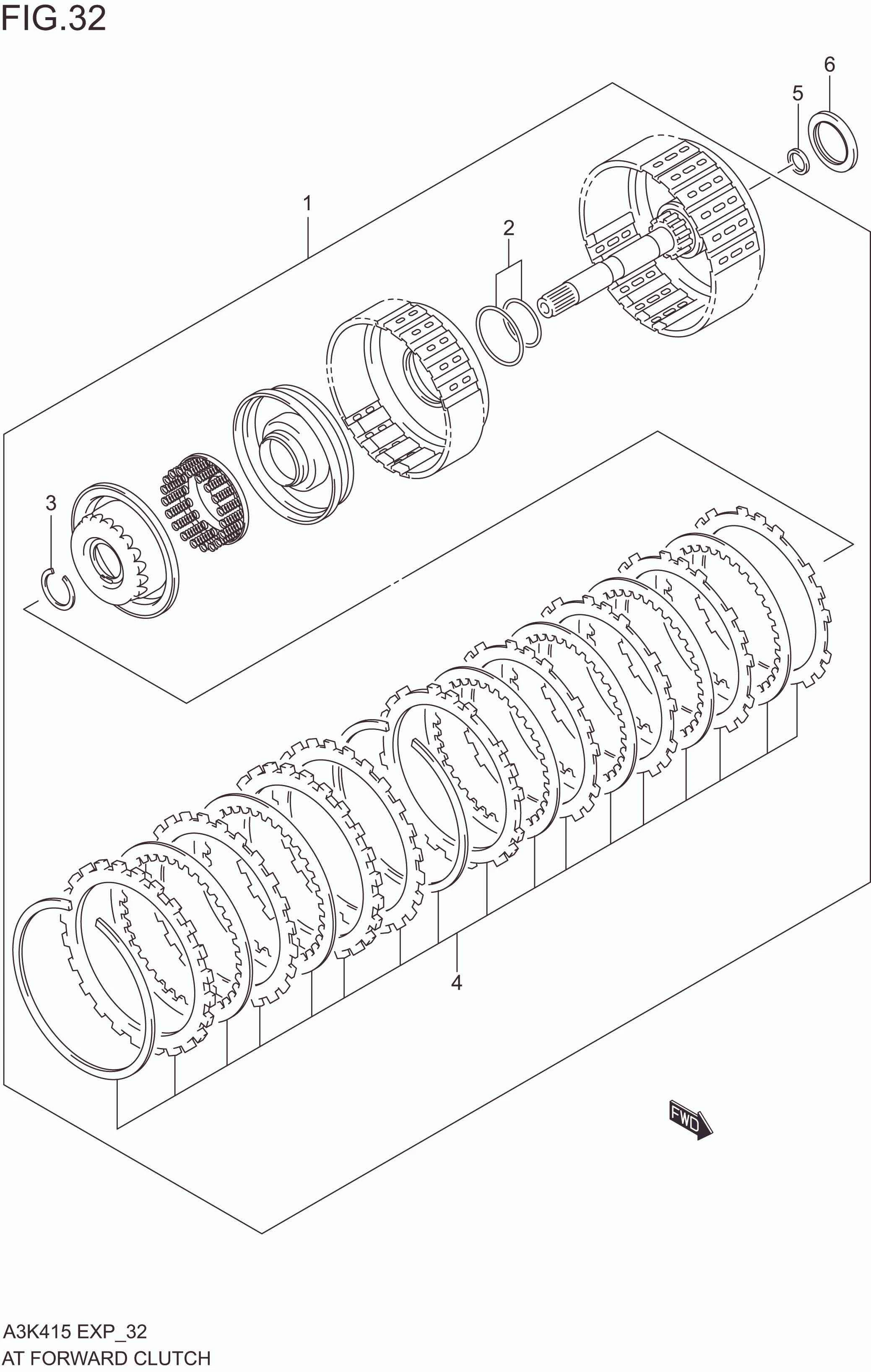

AT FORWARD CLUTCH (4AT)

AT FORWARD CLUTCH (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 24200-77M10-000 CLUTCH ASSY, FORWARD 1 Rp7.565.500 9 COLOR:KGL
2 26614-77MT0-000 .O RING SET, FORWARD CLUTCH 1 Rp47.500
3 26617-79C10-000 .RING, BALANCER SNAP 1 Rp29.500 9 COLOR:A8D
4 26618-77MT0-000 .DISC SET, FWD&REV CLUTCH 1 Rp2.971.500 9 COLOR:CC7,KGL
5 24271-77M10-000 RING, INTERMEDIATE SHAFT SEAL 1 Rp55.500 9 COLOR:CC8
6 24975-77M10-000 BEARING, REVERSE CL DRUM 1 Rp232.500 9 COLOR:A8D

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
