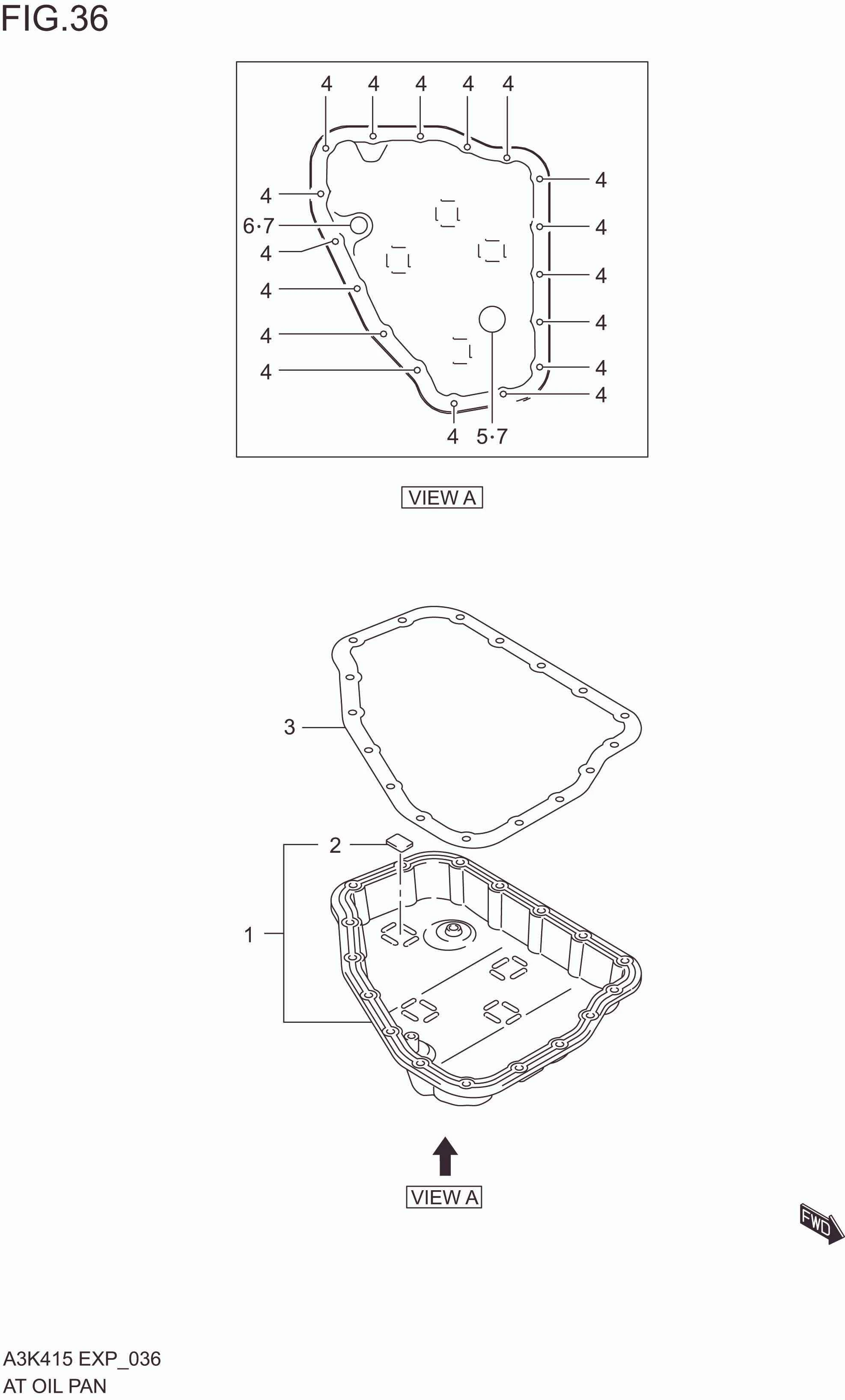

AT OIL PAN (4AT)

AT OIL PAN (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 24761-77MT0-000 PAN SET, T/M OIL 1 Rp1.209.500
2 DISCONTINUE
SUB: 24745-59J00-000		 .MAGNET, OIL CLEANER 4 -
3 24784-77M10-000 GASKET, T/M OIL PAN 1 Rp163.000
4 24882-79C10-000 BOLT, T/M OIL PAN (6X14) 17 Rp22.000
5 24823-79C10-000 PLUG, DRAIN 1 Rp31.000 9 COLOR:A8D
6 24824-77M10-000 PLUG, T/M OIL CHECK 1 Rp42.500 9 COLOR:CC7
7 24781-57B00-000 GASKET, DRAIN PLUG 2 Rp33.500 9 COLOR:CC8

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
