New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEAR SHIFT FORK (5MT)AT TRANSMISSION ASSY (4AT)AT OIL PUMP (4AT)AT INPUT SHAFT (4AT)AT PLANETARY GEAR (4AT)AT REDUCTION GEAR (4AT)AT FORWARD CLUTCH (4AT)AT 1ST/REVERSE BRAKE (4AT)AT OVER DRIVE BRAKE (4AT)AT TRANSMISSION CASE (4AT)AT OIL PAN (4AT)AT VALVE (4AT)AT PARKING LOCK (4AT)AT OILHOSE (4AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (4AT)SELECT LEVER (4AT)FRONT DIFFERENTIAL GEAR (5MT)FRONTDIFFERENTIAL GEAR (4AT)

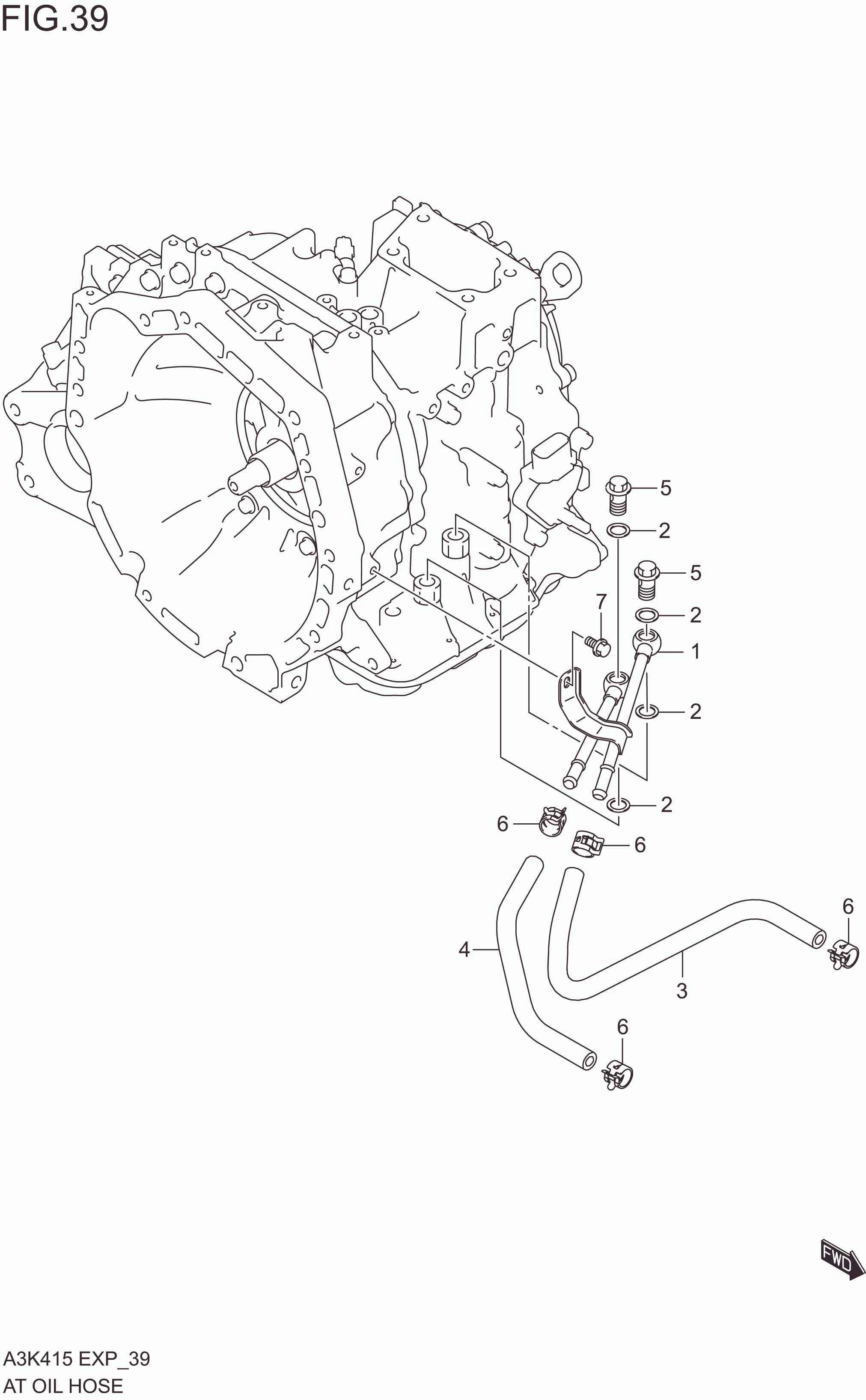

AT OILHOSE (4AT)

AT OILHOSE (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 22910M50S10-000 PIPE, OIL COOLER 1 Rp149.000
2 22913M79M10-000 GASKET, OIL PIPE UNION BOLT 4 Rp6.500
3 22931M55T10-000 HOSE, OIL COOLER INLET 1 Rp130.000
4 22932M55T10-000 HOSE, OIL COOLER OUTLET 1 Rp83.500
5 22935-79J10-000 BOLT, OIL PIPE UNION (14X27) 2 Rp74.000
6 09401M15419-000 CLIP 4 Rp18.500
7 01550-0612A-000 BOLT (6X12) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
