New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEAR SHIFT FORK (5MT)AT TRANSMISSION ASSY (4AT)AT OIL PUMP (4AT)AT INPUT SHAFT (4AT)AT PLANETARY GEAR (4AT)AT REDUCTION GEAR (4AT)AT FORWARD CLUTCH (4AT)AT 1ST/REVERSE BRAKE (4AT)AT OVER DRIVE BRAKE (4AT)AT TRANSMISSION CASE (4AT)AT OIL PAN (4AT)AT VALVE (4AT)AT PARKING LOCK (4AT)AT OILHOSE (4AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (4AT)SELECT LEVER (4AT)FRONT DIFFERENTIAL GEAR (5MT)FRONTDIFFERENTIAL GEAR (4AT)

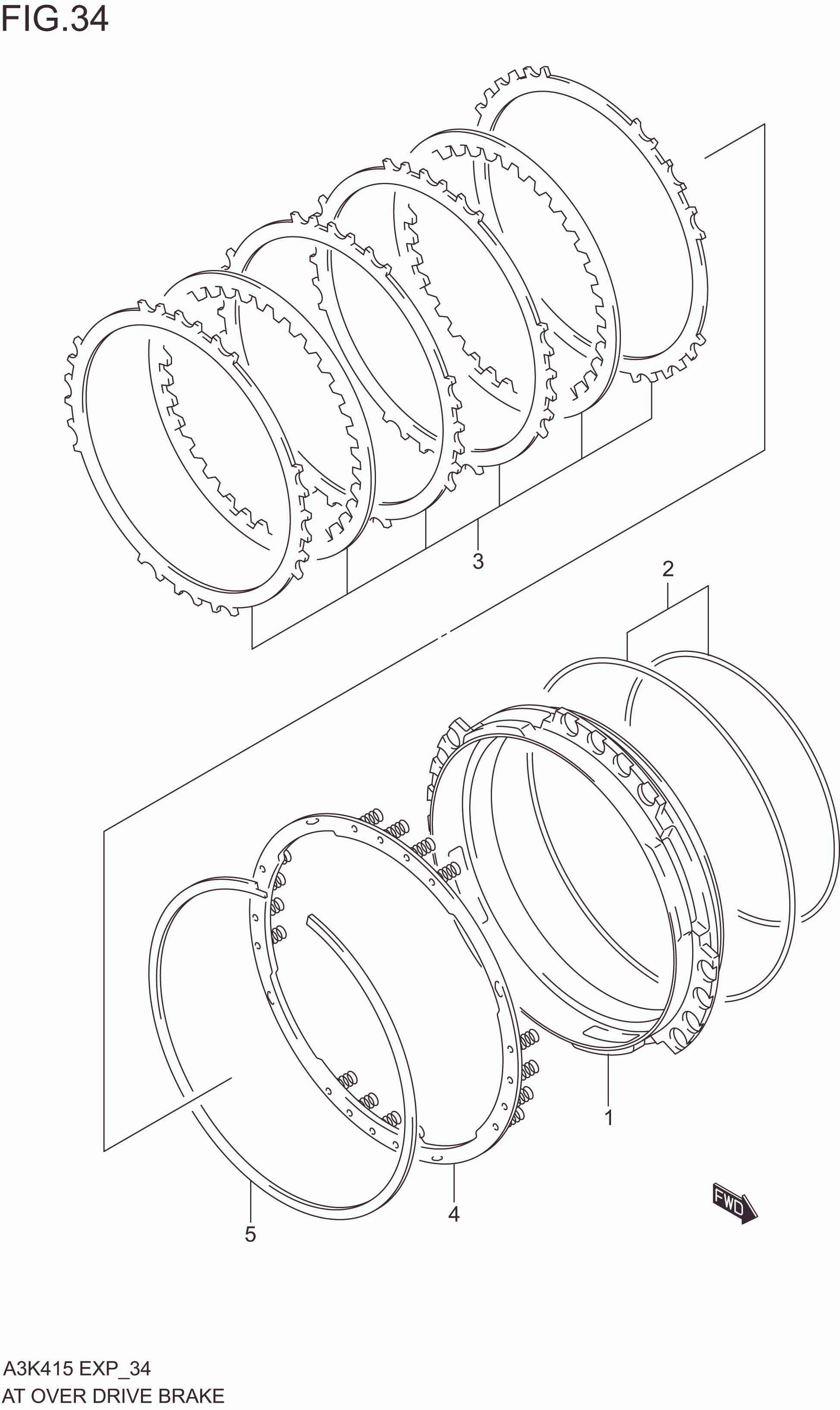

AT OVER DRIVE BRAKE (4AT)

AT OVER DRIVE BRAKE (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 26771-77M10-000 PISTON, O/D BRAKE 1 Rp410.500 ARAYMOND
2 26772-77MT0-000 O RING SET, O/D BRAKE PISTON 1 Rp92.000
3 26774-77MT0-000 DISC SET, O/D BRAKE 1 Rp1.461.000
4 26780-77M10-000 SPRING S/ASSY, O/D BRAKE RETURN 1 Rp174.000
5 26791-77M10-000 RING, O/D BK RETURN SPRING SNAP 1 Rp74.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
