New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEAR SHIFT FORK (5MT)AT TRANSMISSION ASSY (4AT)AT OIL PUMP (4AT)AT INPUT SHAFT (4AT)AT PLANETARY GEAR (4AT)AT REDUCTION GEAR (4AT)AT FORWARD CLUTCH (4AT)AT 1ST/REVERSE BRAKE (4AT)AT OVER DRIVE BRAKE (4AT)AT TRANSMISSION CASE (4AT)AT OIL PAN (4AT)AT VALVE (4AT)AT PARKING LOCK (4AT)AT OILHOSE (4AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (4AT)SELECT LEVER (4AT)FRONT DIFFERENTIAL GEAR (5MT)FRONTDIFFERENTIAL GEAR (4AT)

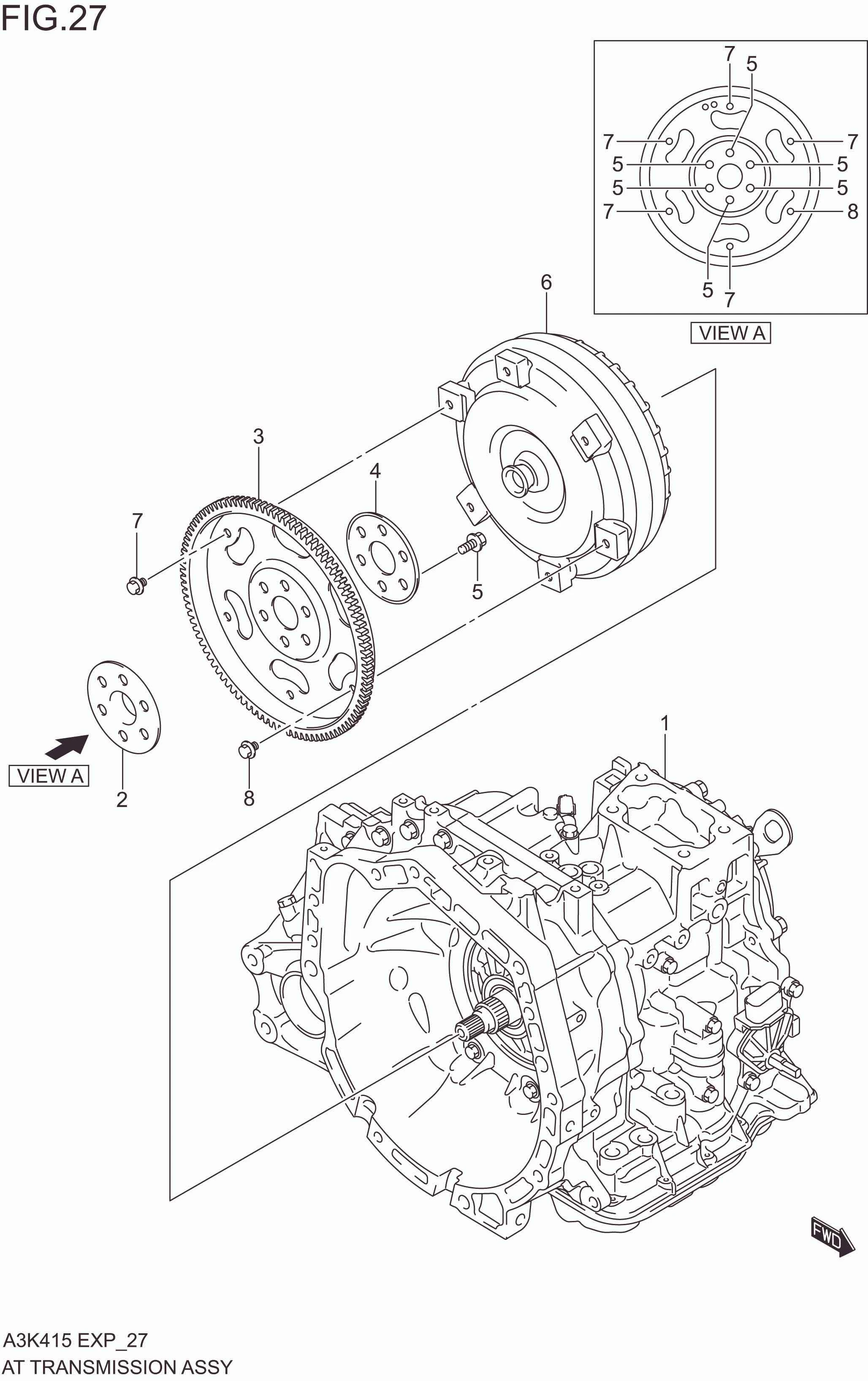

AT TRANSMISSION ASSY (4AT)

AT TRANSMISSION ASSY (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 20002-82R10-000 TRANSMISSION ASSY, AUTOMATIC 1 Rp78.107.500
2 22611M68PJ0-000 FLANGE, T/C DRIVE PLATE FRONT 1 Rp163.000 9 COLOR:A8D
3 22620M68PJ0-000 PLATE, TC DRIVE 1 Rp798.000 9 COLOR:CC7
4 22631M68PJ0-000 PLATE, T/C DRIVE REAR 1 Rp54.500 9 COLOR:CC8
5 09103-10440-000 BOLT (10X18.5) 6 Rp33.000 9 COLOR:A8D
6 22710-77M10-000 CONVERTER, TORQUE 1 Rp14.304.000 9 COLOR:CC7
7 22711M68P10-000 BOLT, TORQUE CONVERTER 5 Rp12.000 9 COLOR:CC8
8 09103-08517-000 BOLT (8X9.5) 1 Rp28.500 9 COLOR:A8D,CC7

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
