New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEAR SHIFT FORK (5MT)AT TRANSMISSION ASSY (4AT)AT OIL PUMP (4AT)AT INPUT SHAFT (4AT)AT PLANETARY GEAR (4AT)AT REDUCTION GEAR (4AT)AT FORWARD CLUTCH (4AT)AT 1ST/REVERSE BRAKE (4AT)AT OVER DRIVE BRAKE (4AT)AT TRANSMISSION CASE (4AT)AT OIL PAN (4AT)AT VALVE (4AT)AT PARKING LOCK (4AT)AT OILHOSE (4AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (4AT)SELECT LEVER (4AT)FRONT DIFFERENTIAL GEAR (5MT)FRONTDIFFERENTIAL GEAR (4AT)

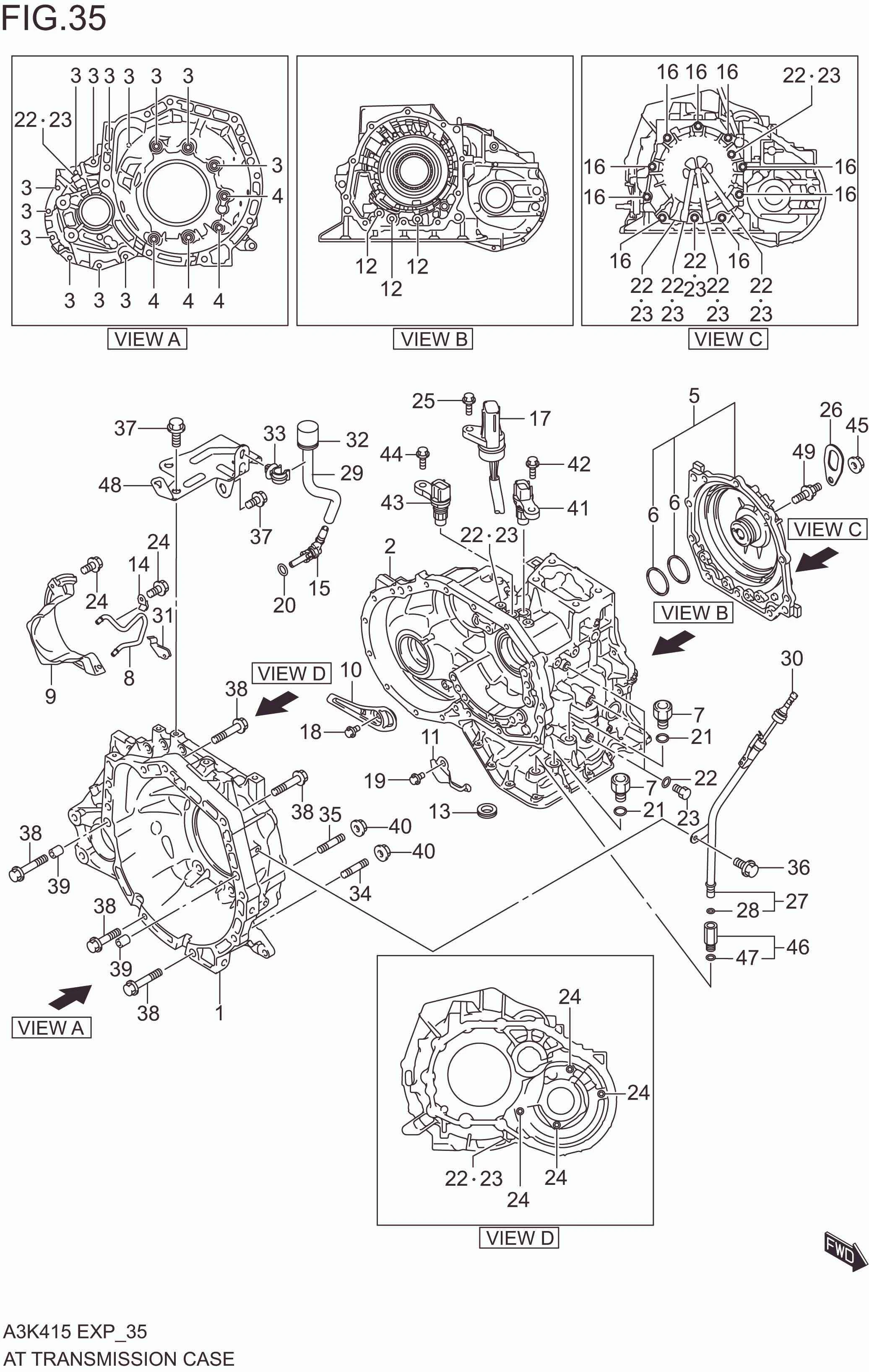

AT TRANSMISSION CASE (4AT)

AT TRANSMISSION CASE (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 24710-68P10-000 HOUSING, TORQUE CONVERTOR 1 Rp9.148.000
2 24720-77M10-000 CASE, T/M 1 Rp19.199.500
3 24725-79C10-000 BOLT, T/C HOUSING NO.1 13 Rp26.500
4 24729-79C10-000 BOLT, HOUSING NO.2 4 Rp32.000
5 24730-77M10-000 COVER, T/M RR 1 Rp4.058.500
6 24732-70H10-000 .RING, REAR COVER SEAL 2 Rp69.500
7 24743-77M10-000 UNION, OIL PIPE 2 Rp289.500
8 24811-77MT0-000
SUB: 24811-60MT0-000		 TUBE SET, LUB 1 Rp208.000 HARYANA
9 24813-77M10-000 PLATE, OIL RESERVOIR RH 1 Rp290.500 ARAYMOND
10 24814-77M10-000 PLATE, OIL RESERVOIR LH 1 Rp55.000
11 24815-77M10-000 PLATE, OIL GUIDE 1 Rp118.500
12 29737-57B00-000 GASKET, 2ND BRAKE APPLY 3 Rp71.000
13 24818-68J10-000 GASKET, GOVERNOR APPLY NO.1 1 Rp71.500
14 24725-59J10-000 CLAMP, DIFF BRG LUB PIPE 1 Rp40.000
15 24821-77M10-000 UNION, BREATHER 1 Rp62.500
16 24884-79C10-000 BOLT, T/M RR COVER 9 Rp36.000
17 24892-77M10-000 HARNESS, SOLENOID WIRE 1 Rp1.466.500
18 26449-65G10-000 BOLT 1 Rp27.500
19 26449-65G10-000 BOLT 1 Rp27.500
20 27992-79C10-000 O RING, BREATHER PLUG 1 Rp24.000
21 29737-57B00-000 O RING, OIL PIPE 2 Rp71.000
22 29738-57B00-000 O RING 11 Rp47.500
23 DISCONTINUE
SUB: 29849-57B00-000		 PLUG, T/M CASE 11 - 9 COLOR:A8D
24 29970-57B00-000 BOLT 4 Rp83.000 9 COLOR:CC7
25 29989-57B00-000 BOLT, SOL WIRE HARNESS 1 Rp69.500 9 COLOR:CC8
26 DISCONTINUE
SUB: 11851-73001-000		 HOOK, TRANSMISSION 1 - 9 COLOR:KGL
27 24770M50S10-000 TUBE ASSY, T/M OIL FILLER 1 Rp137.000
28 09280M09017-000 .O RING (D:2.1,ID:8.8) 1 Rp6.500
29 24825-77M10-000 HOSE, T/M BREATHER 1 Rp157.000
30 24830M68P11-000 GAUGE ASSY, T/M OIL LEVEL 1 Rp42.000
31 24725-59J10-000 CLAMP, LUB TUBE 1 Rp40.000
32 27991-77M10-000 PLUG, BREATHER HOSE 1 Rp47.500
33 09403-11320-000 CLAMP 1 Rp21.500
34 01421M1035A-000
SUB: 01421-1035A-000		 BOLT 1 Rp16.000
35 01421-1045A-000 BOLT 1 Rp29.500
36 01550-0612A-000 BOLT (6X12) 1 Rp3.500
37 01550-0812C-000 BOLT (8X12) 2 Rp21.000
38 09103M10463-000 BOLT 5 Rp10.500
39 04211M13189-000
SUB: 04211-13149-000		 PIN (13X14) 2 Rp9.000
40 08316-1010A-000 NUT 2 Rp3.500
41 26130-77M10-000 SENSOR, SPEED OUTPUT 1 Rp1.429.500
42 29989-57B00-000 BOLT 1 Rp69.500
43 26143-77M10-000 SENSOR, SPEED INPUT 1 Rp1.473.000
44 29989-57B00-000 BOLT 1 Rp69.500
45 08316-1008A-000 NUT 1 Rp3.500
46 24780M50S10-000 JOINT ASSY, FILLER TUBE 1 Rp80.000
47 24781M50S10-000 .O RING, FILLER TUBE JOINT 1 Rp9.000
48 26598M68P10-000 BRACKET, HARNESS 1 Rp35.500
49 24883-77M10-000 BOLT, T/M RR COVER STUD 1 Rp161.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
