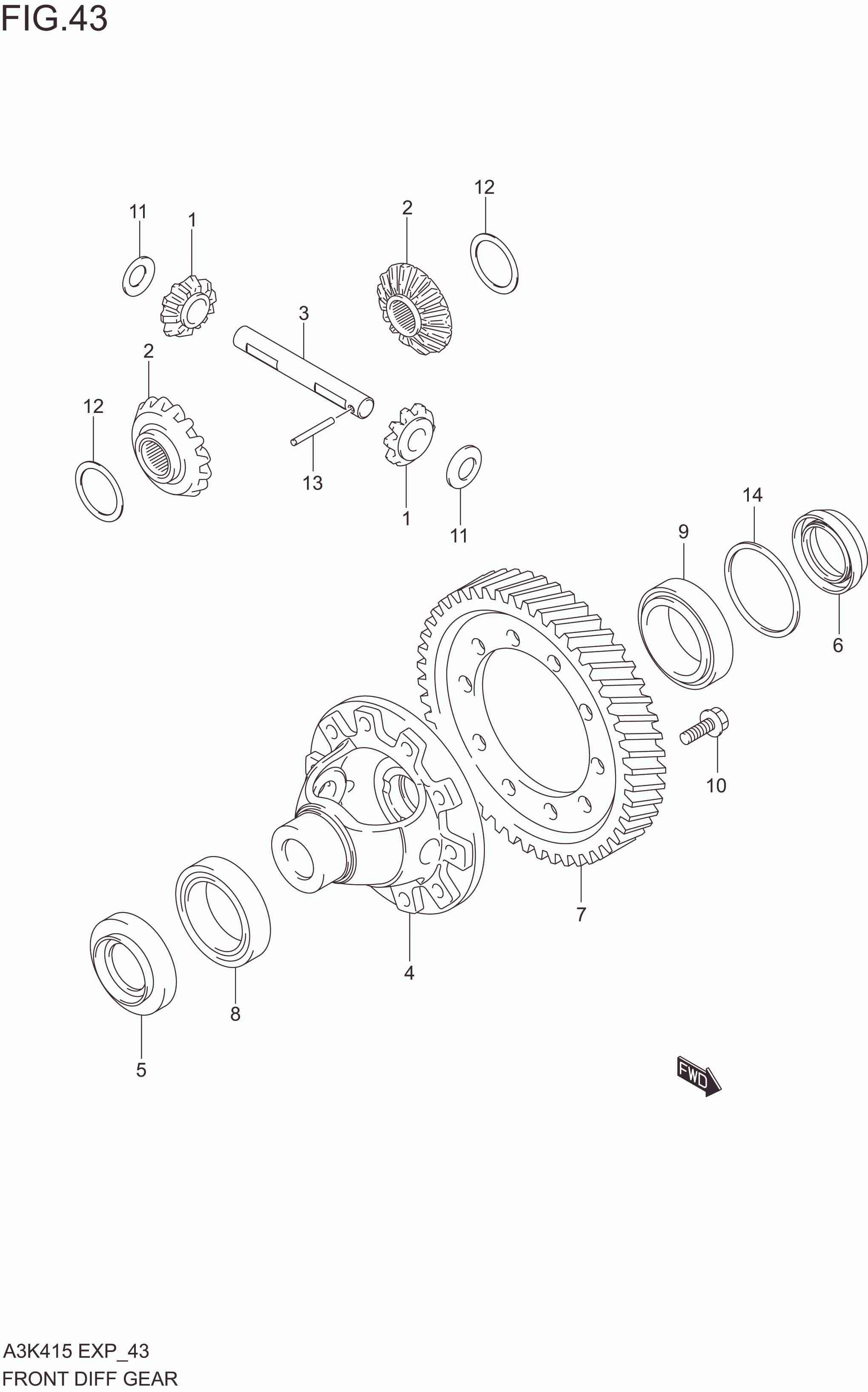

| 1 |
27331M55K00-000 |
PINION, DIFFERENTIAL |
2 |
Rp163.500 |
9 COLOR:A8D | |
| 2 |
27341M55K40-000 |
GEAR, DIFFERENTIAL SIDE |
2 |
Rp142.500 |
9 COLOR:CC7 | |
| 3 |
27351M86J00-000 |
SHAFT, DIFF SIDE PINION |
1 |
Rp61.000 |
9 COLOR:CC8 | |
| 4 |
27411M55K20-000 |
CASE, FRONT DIFF |
1 |
Rp692.000 |
9 COLOR:KGL | |
| 5 |
27431M74LB0-000 |
SEAL, DIFF SIDE OIL RH |
1 |
Rp106.500 |
| |
| 6 |
27432M74LB0-000 |
SEAL, DIFF SIDE OIL LH |
1 |
Rp81.500 |
| |
| 7 |
27511M72R00-000 |
GEAR, FINAL |
1 |
Rp1.196.000 |
| |
| 8 |
27521-73RA0-000
SUB: 27521M86J00-000 |
BEARING ASSY, DIFF SIDE RH |
1 |
Rp182.500 |
| |
| 9 |
27524M86J20-000
SUB: 27524M86J00-000 |
BEARING ASSY, DIFF SIDE LH |
1 |
Rp416.000 |
| |
| 10 |
09103-10189-000 |
BOLT (10X23) |
10 |
Rp29.000 |
| |
| 11 |
09164-17006-000 |
WASHER |
2 |
Rp28.500 |
| |
| 12-10 |
27441M86J00-130 |
WASHER (T:1.30) |
0 |
Rp12.500 |
| |
| 12-9 |
27441M86J00-125 |
WASHER (T:1.25) |
0 |
Rp13.000 |
| |
| 12-8 |
27441M86J00-120 |
WASHER (T:1.20) |
0 |
Rp12.500 |
| |
| 12-7 |
DISCONTINUE
SUB: 09181-38174-000 |
WASHER (T:1.15) |
0 |
- |
| |
| 12-6 |
DISCONTINUE
SUB: 09181-38172-000 |
WASHER (T:1.10) |
0 |
- |
| |
| 12-4 |
DISCONTINUE
SUB: 09181-38166-000 |
WASHER (T:1.00) |
0 |
- |
| |
| 12-3 |
DISCONTINUE
SUB: 09181-38165-000 |
WASHER (T:0.95) |
0 |
- |
| |
| 12-2 |
DISCONTINUE
SUB: 09181-38164-000 |
WASHER (T:0.90) |
0 |
- |
| |
| 12-1 |
DISCONTINUE
SUB: 09181-38163-000 |
WASHER (T:0.85) |
0 |
- |
| |
| 12-5 |
DISCONTINUE
SUB: 09181-38169-000 |
WASHER (T:1.05) |
0 |
- |
| |
| 13 |
09205M05007-000
SUB: 09205-05007-000 |
PIN, SPRING (5X36) |
1 |
Rp5.000 |
| |
| 14-18 |
29541M56R00-168 |
SHIM, DIFF SIDE BRG (T:1.68) |
0 |
Rp13.500 |
| |
| 14-17 |
29541M56R00-164 |
SHIM, DIFF SIDE BRG (T:1.64) |
0 |
Rp13.500 |
| |
| 14-16 |
29541M56R00-160 |
SHIM, DIFF SIDE BRG (T:1.60) |
0 |
Rp13.500 |
| |
| 14-15 |
29541M56R00-156 |
SHIM, DIFF SIDE BRG (T:1.56) |
0 |
Rp13.500 |
| |
| 14-14 |
29541M56R00-152 |
SHIM, DIFF SIDE BRG (T:1.52) |
0 |
Rp13.500 |
| |
| 14-13 |
29541M56R00-148 |
SHIM, DIFF SIDE BRG (T:1.48) |
0 |
Rp13.000 |
| |
| 14-12 |
29541M56R00-144 |
SHIM, DIFF SIDE BRG (T:1.44) |
0 |
Rp13.000 |
| |
| 14-11 |
29541M56R00-140 |
SHIM, DIFF SIDE BRG (T:1.40) |
0 |
Rp13.500 |
| |
| 14-10 |
29541M56R00-136 |
SHIM, DIFF SIDE BRG (T:1.36) |
0 |
Rp13.500 |
| |
| 14-9 |
29541M56R00-132 |
SHIM, DIFF SIDE BRG (T:1.32) |
0 |
Rp13.500 |
| |
| 14-8 |
29541M56R00-128 |
SHIM, DIFF SIDE BRG (T:1.28) |
0 |
Rp13.500 |
| |
| 14-7 |
29541M56R00-124 |
SHIM, DIFF SIDE BRG (T:1.24) |
0 |
Rp13.500 |
| |
| 14-6 |
29541M56R00-120 |
SHIM, DIFF SIDE BRG (T:1.20) |
0 |
Rp13.500 |
| |
| 14-5 |
29541M56R00-116 |
SHIM, DIFF SIDE BRG (T:1.16) |
0 |
Rp13.500 |
| |
| 14-4 |
29541M56R00-112 |
SHIM, DIFF SIDE BRG (T:1.12) |
0 |
Rp13.500 |
| |
| 14-3 |
29541M56R00-108 |
SHIM, DIFF SIDE BRG (T:1.08) |
0 |
Rp13.500 |
| |
| 14-2 |
29541M56R00-104 |
SHIM, DIFF SIDE BRG (T:1.04) |
0 |
Rp13.500 |
| |
| 14-1 |
29541M56R00-100 |
SHIM, DIFF SIDE BRG (T:1.00) |
0 |
Rp13.500 |
| |
