New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEAR SHIFT FORK (5MT)AT TRANSMISSION ASSY (4AT)AT OIL PUMP (4AT)AT INPUT SHAFT (4AT)AT PLANETARY GEAR (4AT)AT REDUCTION GEAR (4AT)AT FORWARD CLUTCH (4AT)AT 1ST/REVERSE BRAKE (4AT)AT OVER DRIVE BRAKE (4AT)AT TRANSMISSION CASE (4AT)AT OIL PAN (4AT)AT VALVE (4AT)AT PARKING LOCK (4AT)AT OILHOSE (4AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (4AT)SELECT LEVER (4AT)FRONT DIFFERENTIAL GEAR (5MT)FRONTDIFFERENTIAL GEAR (4AT)

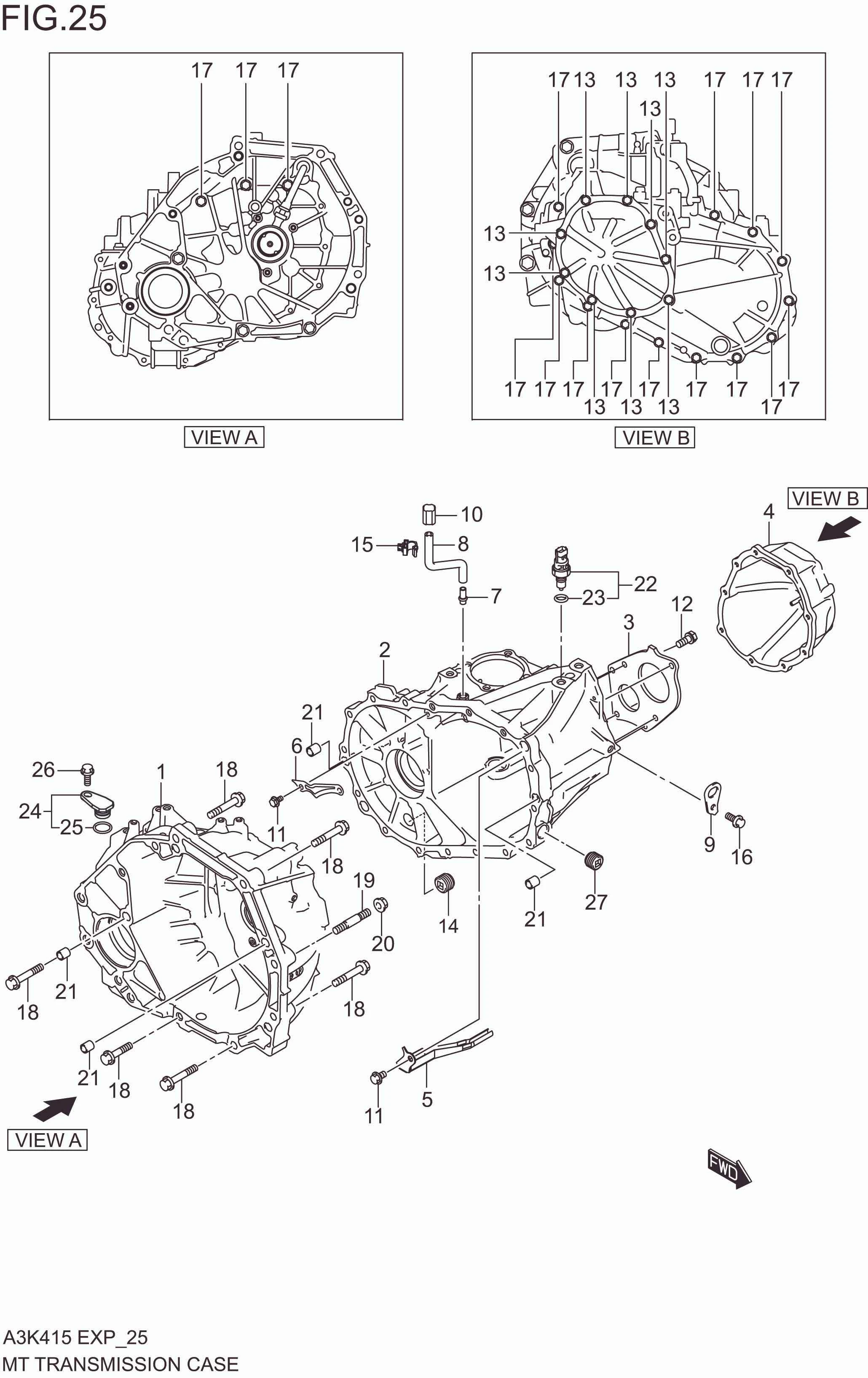

MT TRANSMISSION CASE (5MT)

MT TRANSMISSION CASE (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 24711M82R02-000 CASE, TRANSMISSION RIGHT 1 Rp5.038.500 9 COLOR:CC7
2 24721M65MA0-000 CASE, TRANSMISSION LEFT 1 Rp6.318.000 9 COLOR:CC8
3 24725M60MA2-000 PLATE, T/M LH BEARING STOPPER 1 Rp178.500 9 COLOR:KGL
4 24730M86J00-000 COVER, T/M SIDE 1 Rp140.000
5 DISCONTINUE
SUB: 24810-70C00-000		 GUTTER, INPUT OIL 1 -
6-1 24815M86J00-000 PLATE, BREATHER COVER 1 Rp8.500
6-2 24815M86J00-000
SUB: 24815M86J20-000		 PLATE, BREATHER COVER 1 Rp8.500
7 24821M79F00-000 UNION 1 Rp88.500
8 24825M74LA0-000 HOSE, BREATHER 1 Rp12.000 9 COLOR:A8D
9 24855M65MA0-000 HOOK, T/M 1 Rp9.000 9 COLOR:CC7
10 27991M79G00-000 PLUG, BREATHER 1 Rp35.000 9 COLOR:CC8
11 09103M06518-000 BOLT (6X12) 3 Rp9.000 9 COLOR:KGL
12 24728-60MA0-000 BOLT, T/M L BRG STOPPER PLATE 6 Rp31.000 9 COLOR:A8D
13 09135-06027-000 BOLT (6X16) 9 Rp15.000 9 COLOR:CC7
14 09246M16017-000 PLUG (L:15) 2 Rp24.500 9 COLOR:CC8
15 24829M68K00-000 CLAMP, BREATHER HOSE 1 Rp6.500 9 COLOR:KGL
16 01550-0820A-000 BOLT (8X20) 1 Rp5.500
17 01550-0840A-000 BOLT 16 Rp3.500
18 09103M10463-000 BOLT 6 Rp10.500 HARYANA
19 01421-1045A-000 BOLT 1 Rp29.500 ARAYMOND
20 08316-1010A-000 NUT 1 Rp3.500
21 04211M13189-000
SUB: 04211-13149-000		 PIN (13X14) 4 Rp9.000
22 37610M68K00-000 SWITCH ASSY, BACK UP 1 Rp141.000 9 COLOR:A8D
23 09280-11002-000 .O RING (D:1.9,ID:11.4) 1 Rp10.500 9 COLOR:CC7
24 24723M68K01-000 CAP, SPEEDOMETER SENSOR 1 Rp169.000 9 COLOR:CC8
25 09280-15018-000 .O RING 1 Rp40.000 9 COLOR:KGL
26 01550-0616A-000 BOLT (6X16) 1 Rp3.500 9 COLOR:A8D
27 09246M16009-000
SUB: 09246M16016-000		 PLUG 1 Rp14.500 9 COLOR:CC7

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
