  5. FIG. 46 FRONT WHEEL

Let's

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 29 FRAMEFIG. 30 STANDFIG. 31 FOOTRESTFIG .32 FUEL TANKFIG. 33 FRAME COVERFIG. 34 FRONT LEG SHIELDFIG. 35 REAR LEG SHIELDFIG. 36 LEG SHIELD COVERFIG. 37 LUGGAGE BOXFIG. 38 FRONT FENDERFIG. 39 HANDLE BARFIG. 40 HANDLE LEVERFIG. 41 REAR FENDERFIG. 42 LABELFIG. 43 SEATFIG. 44 FRONT FORK DAMPERFIG. 45 STEERING STEMFIG. 46 FRONT WHEELFIG. 47 FRONT CALIPERFIG. 48 FRONT MASTER CYLINDERFIG. 49 REAR SHOCK ABSORBERFIG. 50 REAR WHEEL

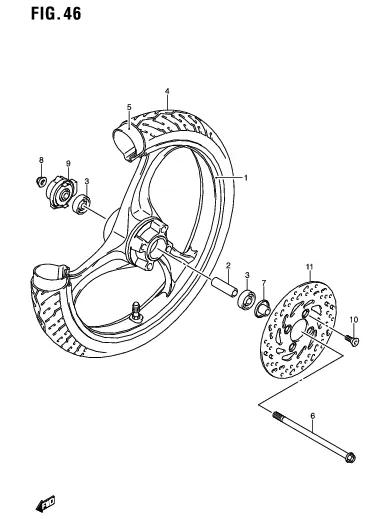

FIG. 46 FRONT WHEEL

FIG. 46 FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 54111B09J00N000 WHEEL, FRONT (14X1.40) 1 Rp390.000
2 DISCONTINUE
SUB: 09180B10148N000		 SPACER (10.1X16X51) 1 -
3 08123-63007-000
SUB: 08123B63007N000		 BEARING 2 Rp32.500
4 55110-46G10-000
SUB: 55110B46G10N000		 TIRE, FRONT (70/90-14M/C 34P) 1 Rp240.500
5 55200-46G10-000
SUB: 55200B46G10N000		 TUBE ASSY, WHEEL INNER 1 Rp64.500
6 54711-13H00-000
SUB: 54711B13H00N000		 AXLE, FRONT 1 Rp13.000
7 54750-46100-000
SUB: 54750B46100N000		 SPACER, FRONT AXLE RH 1 Rp12.500
8 08319-3110A-000
SUB: 08319B3110AN000		 NUT 1 Rp4.500
9 54600-09J00-000
SUB: 54600B09J00N000		 BOX ASSY, SPEEDOMETER GEAR 1 Rp177.000
10 59218-09G10-000
SUB: 59218B09G10N000		 BOLT, FRONT BRAKE DISC 4 Rp7.000
11 59221-09J00-000
SUB: 59221B09J00N000		 DISC, FRONT BRAKE 1 Rp147.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
