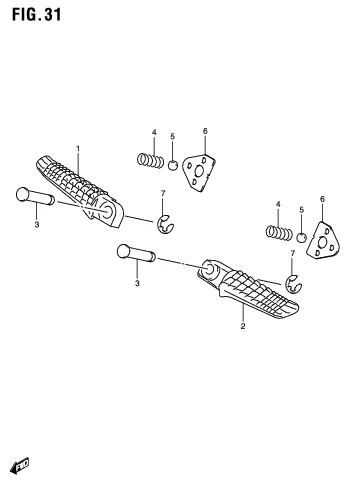

FIG. 31 FOOTREST

FIG. 31 FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43611-37H20-000
SUB: 43611B37H00N000		 BAR, PILLION FOOTREST RH 1 Rp311.500
2 43621-37H20-000
SUB: 43621B37H00N000		 BAR, PILLION FOOTREST LH 1 Rp311.500
3 09208-08017-000 PIN 2 Rp5.500
4 09440-05005-000
SUB: 09440B05005N000		 SPRING 2 Rp6.500
5 06111M07004-000
SUB: 06111-07004-000		 BALL 2 Rp3.000
6 43816-01H02-000
SUB: 43816B01H02N000		 PLATE, PILLION FOOTREST 2 Rp8.500
7 08332-1106A-000
SUB: 08332B1106AN000		 E RING 2 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
