  5. FIG. 44 FRONT FORK DAMPER

Let's

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 29 FRAMEFIG. 30 STANDFIG. 31 FOOTRESTFIG .32 FUEL TANKFIG. 33 FRAME COVERFIG. 34 FRONT LEG SHIELDFIG. 35 REAR LEG SHIELDFIG. 36 LEG SHIELD COVERFIG. 37 LUGGAGE BOXFIG. 38 FRONT FENDERFIG. 39 HANDLE BARFIG. 40 HANDLE LEVERFIG. 41 REAR FENDERFIG. 42 LABELFIG. 43 SEATFIG. 44 FRONT FORK DAMPERFIG. 45 STEERING STEMFIG. 46 FRONT WHEELFIG. 47 FRONT CALIPERFIG. 48 FRONT MASTER CYLINDERFIG. 49 REAR SHOCK ABSORBERFIG. 50 REAR WHEEL

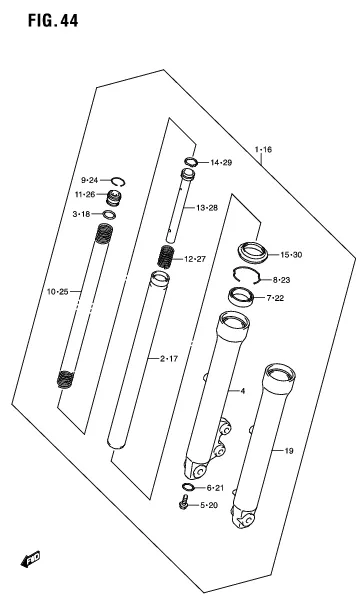

FIG. 44 FRONT FORK DAMPER

FIG. 44 FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 51103B09J00N000 DAMPER ASSY, FRONT FORK RH 1 Rp300.000
2 51110-09J00-000
SUB: 51110B09J00N000		 .TUBE, INNER 1 Rp183.500
3 51117-09G00-000
SUB: 51117B09G00N000		 .O RING 1 Rp3.500
4 51131B09J00N000 .TUBE, OUTER RH 1 Rp115.000
5 51147-06F10-000
SUB: 51147B06F10N000		 .BOLT 1 Rp6.500
6 51148-31030-000
SUB: 51148B31030N000		 .GASKET 1 Rp4.000
7 51153-09G00-000
SUB: 51153B09G00N000		 .OIL SEAL 1 Rp16.500
8 51156-09G00-000
SUB: 51156B09G00N000		 .SNAP RING 1 Rp4.500
9 51169-09G00-000
SUB: 51169B09G00N000		 .RING, STOPPER 1 Rp4.000
10 51171-09J00-000
SUB: 51171B09J00N000		 .SPRING, FRONT 1 Rp28.500
11 51175-09G00-000
SUB: 51175B09G00N000		 .CAP 1 Rp10.500
12 51177-47E01-000
SUB: 51177B47E01N000		 .SPRING, REBOUND 1 Rp5.500
13 51194-09J00-000
SUB: 51194B09J00N000		 .CYLINDER 1 Rp29.500
14 51196-16H00-000
SUB: 51196B16H00N000		 .RING, PISTON 1 Rp7.000
15 51571-09G00-000
SUB: 51571B09G00N000		 .SEAL, DUST 1 Rp8.000
16 51104B09J00N000 DAMPER ASSY, FRONT FORK LH 1 Rp300.000
17 51110-09J00-000
SUB: 51110B09J00N000		 .TUBE, INNER 1 Rp183.500
18 51117-09G00-000
SUB: 51117B09G00N000		 .O RING 1 Rp3.500
19 51141B09J00N000 .TUBE, OUTER LH 1 Rp115.000
20 51147-06F10-000
SUB: 51147B06F10N000		 .BOLT 1 Rp6.500
21 51148-31030-000
SUB: 51148B31030N000		 .GASKET 1 Rp4.000
22 51153-09G00-000
SUB: 51153B09G00N000		 .OIL SEAL 1 Rp16.500
23 51156-09G00-000
SUB: 51156B09G00N000		 .SNAP RING 1 Rp4.500
24 51169-09G00-000
SUB: 51169B09G00N000		 .RING, STOPPER 1 Rp4.000
25 51171-09J00-000
SUB: 51171B09J00N000		 .SPRING, FRONT 1 Rp28.500
26 51175-09G00-000
SUB: 51175B09G00N000		 .CAP 1 Rp10.500
27 51177-47E01-000
SUB: 51177B47E01N000		 .SPRING,REBOUND 1 Rp5.500
28 51194-09J00-000
SUB: 51194B09J00N000		 .CYLINDER 1 Rp29.500
29 51196-16H00-000
SUB: 51196B16H00N000		 .RING, PISTON 1 Rp7.000
30 51571-09G00-000
SUB: 51571B09G00N000		 .SEAL, DUST 1 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
