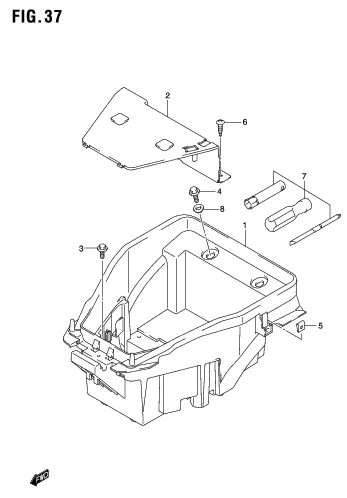

FIG. 37 LUGGAGE BOX

FIG. 37 LUGGAGE BOX
No No. Part Description Qty Price Per Pcs Remarks
1 92211-27J00-000
SUB: 92211B27J00N000		 BOX, LUGGAGE 1 Rp107.000
2 92212-27J00-000
SUB: 92212B27J00N000		 LID, BATTERY BOX 1 Rp35.500
3 09111-06109-000
SUB: 09111B06109N000		 BOLT (6X14.8) 2 Rp4.000
4 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 2 Rp3.500
5 09148-04019-000
SUB: 09148-04034-000		 NUT 2 Rp6.500
6 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
7 96510-13H00-000
SUB: 96510B13H00N000		 TOOL ASSY 1 Rp42.000
8 44549-09J10-000
SUB: 44549B09J10N000		 WASHER 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
