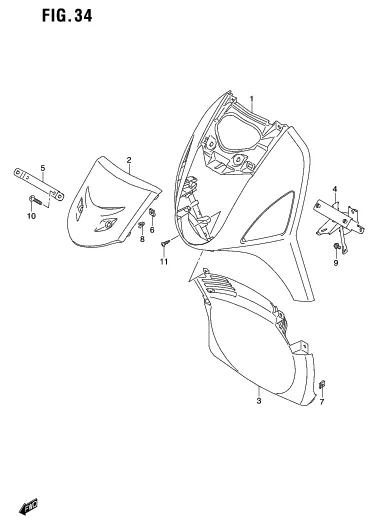

FIG. 34 FRONT LEG SHIELD

FIG. 34 FRONT LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1-5 48111-27J00-YUJ
SUB: 48111B27J00NYUJ		 SHIELD,LEG FRONT BRIGHT BLUE 1 Rp227.000
1-4 48111-27J00-YUH SHIELD LEG FRONT (BRILLIANT WHITE) 1 Rp227.000
1-3 48111-27J00-YNL
SUB: 48111B27J00NYNL		 SHIELD,LEG FRONT (MET.MEDIUM BLUE) 1 Rp218.000
1-2 48111-27J00-W9E
SUB: 48111B27J00NW9E		 SHIELD,LEG FRONT (SAKURA PINK) 1 Rp224.500
1-1 48111-27J00-PZ5
SUB: 48111B27J00NPZ5		 SHIELD,LEG FRONT FRASH GREEN 1 Rp238.000
2-5 48131-27J00-YVU
SUB: 48131B27J00NYVU		 COVER,FRONT LEG SHIELD (TITAN BLACK) 1 Rp161.500
2-4 48131-27J00-YVD
SUB: 48131B27J00NYVD		 COVER,FRONT LEG SHIELD (DARK GRAY MET NO.2) 1 Rp161.500
2-3 48131-27J00-PV5
SUB: 48131B27J00NPV5		 COVER,FRONT LEG SHIELD (CELEBRATION RED) 1 Rp161.500
2-2 48131-27J00-PQE
SUB: 48131B27J00NPQE		 COVER,FRONT LEG SHIELD (AURA YELLOW) 1 Rp161.500
2-1 48131-27J00-PBK
SUB: 48131B27J00NPBK		 COVER,FRONT LEG SHIELD (SOLARISE SILVER) 1 Rp161.500
3 48137-27J00-291 SHIELD,LEG LOWER FRONT (BLACK 50% GLOSS) 1 Rp85.500
4 48150-27J00-000 BRACE, LEG SHIELD 1 Rp56.000
5 DISCONTINUE
SUB: 48190B27J00N000		 HOLDER, FRONT LICENSE 1 -
6 09148-04019-000 NUT HANDLE COVER SIDE 2 Rp6.500
7 09148-04019-000 NUT HANDLE COVER SIDE 2 Rp6.500
8 09409-08326-000 CLIP 2 Rp8.000
9 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
10 02142-0640A-000 SCREW 2 Rp16.500
11 03541-0416B-000 SCREW HANDLE COVER FR & RR 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
