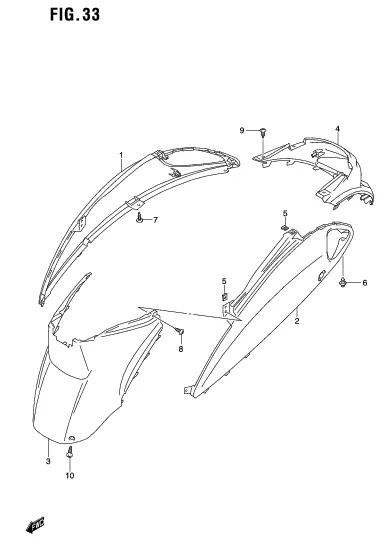

FIG. 33 FRAME COVER

FIG. 33 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1 47111B27J00N000 COVER, FRAME RH 1 Rp70.000
2 47211B27J00N000 COVER, FRAME LH 1 Rp70.000
3 47131B27J00N000 COVER, FRAME FRONT 1 Rp75.000
4 47311B27J00N000 COVER, FRAME CENTER 1 Rp42.000
5 09148-04019-000
SUB: 09148-04034-000		 NUT 6 Rp6.500
6 09409-06322-5PK CLIP (BLACK) 2 Rp19.000
7 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 4 Rp3.500
8 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 2 Rp3.500
9 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 2 Rp3.500
10 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
