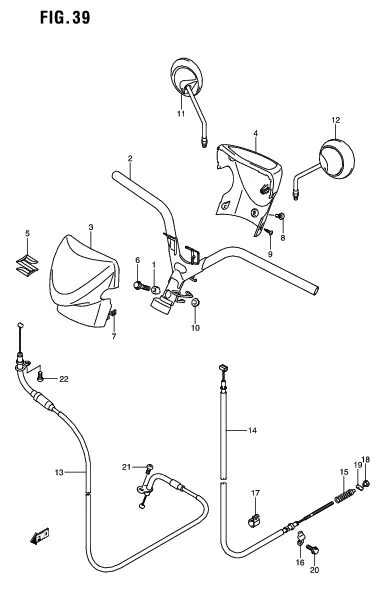

FIG. 39 HANDLE BAR

FIG. 39 HANDLE BAR
No No. Part Description Qty Price Per Pcs Remarks
1 51358-09G00-000
SUB: 51358B09G00N000		 STOPPER, HANDLEBAR 1 Rp8.000
2 56110-27J00-000
SUB: 56110B27J00N000		 HANDLEBAR 1 Rp178.500
3 56311B27J00N000 COVER, HANDLE FRONT 1 Rp30.000
4 56321B27J00N000 COVER, HANDLE REAR 1 Rp30.000
5 68211-16H00-000
SUB: 68211B16H00N000		 EMBLEM, S 1 Rp13.000
6 09103-10126-000
SUB: 09103B10126N000		 BOLT (10X48) 1 Rp28.500
7 09148-04019-000
SUB: 09148-04034-000		 NUT 2 Rp6.500
8 02142-0512B-000
SUB: 02142B0512BN000		 SCREW 1 Rp5.500
9 03541-0412B-000
SUB: 03541B0412BN000		 SCREW 4 Rp4.000
10 08319-3110A-000
SUB: 08319B3110AN000		 NUT 1 Rp4.500
11-1 56500B27J10N000 MIRROR ASSY, REAR VIEW RH 1 Rp44.500 UF110NEL3
11-2 56500-27J30-000
SUB: 56500B27J30N000		 MIRROR ASSY, REAR VIEW RH 1 Rp108.500 UF110NZL3
12-1 56600B27J10N000 MIRROR ASSY, REAR VIEW LH 1 Rp44.500 UF110NEL3
12-2 56600-27J30-000
SUB: 56600B27J30N000		 MIRROR ASSY, REAR VIEW LH 1 Rp108.500 UF110NZL3
13 58300-27J10-000
SUB: 58300B27J10N000		 CABLE ASSY, THROTTLE 1 Rp83.500
14 58510-27J10-000
SUB: 58510B27J10N000		 CABLE, REAR BRAKE 1 Rp95.500
15 58562-09J00-000
SUB: 58562B09J00N000		 SPRING, REAR BRAKE CABLE 1 Rp3.000
16 58575-09J00-000
SUB: 58575B09J00N000		 PLATE, REAR BRAKE CABLE 1 Rp3.500
17 DISCONTINUE
SUB: 58577B46G30N000		 CLAMP, RR BK CABLE CRKC FR 1 -
18 09150-06010-000
SUB: 09150B06010N000		 NUT 1 Rp4.500
19 09209-11002-000
SUB: 09209B11002N000		 PIN (11X18) 1 Rp7.500
20 01547-0610A-000
SUB: 01547B0610AN000		 BOLT 1 Rp3.000
21 DISCONTINUE
SUB: 02112B0510AN000		 SCREW 1 -
22 02112-0512A-000
SUB: 02112B0512AN000		 SCREW 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
