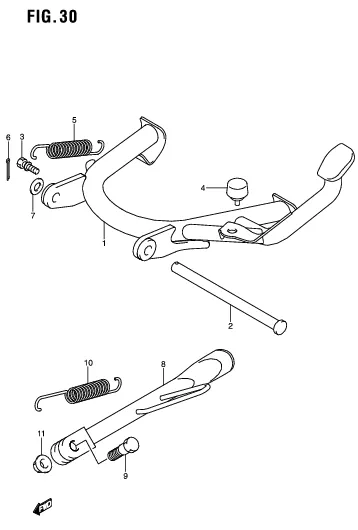

FIG. 30 STAND

FIG. 30 STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42100-09J10-000
SUB: 42100B09J00N000		 STAND, CENTER 1 Rp118.000
2 42211-09J00-000
SUB: 42211B09J00N000		 SHAFT, CENTER STAND 1 Rp18.500
3 42251-46G10-000
SUB: 42251B46G10N000		 HOOK, CENTER STAND SPRING 1 Rp10.000
4 42272-09J00-000
SUB: 42272B09J00N000		 CUSHION, CENTER STAND 1 Rp6.000
5 09443-17026-000
SUB: 09443B17026N000		 SPRING 1 Rp9.500
6 04111-3020A-000
SUB: 04111B3020AN000		 PIN 1 Rp2.500
7 08322-0110B-000
SUB: 08322B0110BN000		 WASHER 1 Rp4.500
8 42310-09J00-000
SUB: 42310B09J00N000		 STAND, PROP 1 Rp38.000
9 42341-09G01-000
SUB: 42341B09G01N000		 BOLT, PROP STAND 1 Rp5.000
10 42421-09J00-000
SUB: 42421B09J00N000		 SPRING, PROP STAND 1 Rp4.000
11 08319-3110A-000
SUB: 08319B3110AN000		 NUT 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
