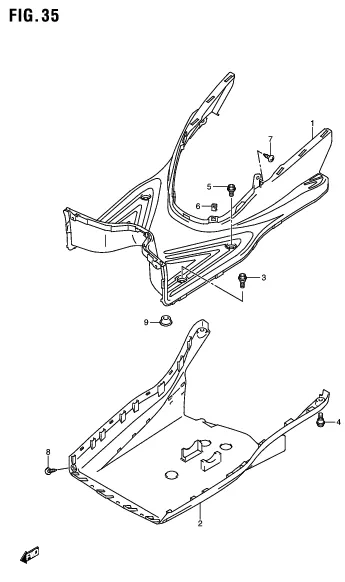

FIG. 35 REAR LEG SHIELD

FIG. 35 REAR LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48121-27J00-291
SUB: 48121B27J00N291		 SHIELD, LEG REAR 1 Rp65.500
2 48138-27J00-291
SUB: 48138B27J00N291		 SHIELD, LEG LOWER REAR 1 Rp104.500
3 09111-06072-000
SUB: 09111B06072N000		 BOLT (6X17.8) 2 Rp3.500
4 09111-06072-000
SUB: 09111B06072N000		 BOLT (6X17.8) 2 Rp3.500
5 09111-06102-000
SUB: 09111B06102N000		 BOLT (6X14.8) 2 Rp3.500
6 09148-04019-000
SUB: 09148-04034-000		 NUT 4 Rp6.500
7 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 2 Rp3.500
8 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 2 Rp4.500
9 48127-09J00-000
SUB: 48127B09J00N000		 CUSHION 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
