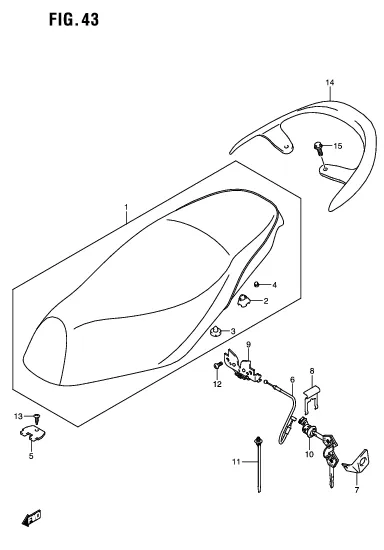

FIG. 43 SEAT

FIG. 43 SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100-27J00-AFP
SUB: 45100B27J00NAFP		 SEAT ASSY (BLACK/GRAY) 1 Rp318.500
2 45148-13H40-000
SUB: 45148B13H40N000		 .CUSHION, SEAT MOUNT RR 2 Rp14.000
3 45148-20G80-000
SUB: 45148B20G80N000		 .CUSHION, SEAT MOUNT 2 Rp3.500
5 45271-18J00-000
SUB: 45271B18J00N000		 PLATE, SEAT HINGE 1 Rp4.500
6 45280-27J00-000
SUB: 45280B27J00N000		 CABLE, SEAT LOCK 1 Rp19.500
7 45288-41H00-000
SUB: 45288B41H00N000		 GUIDE, SEAT LOCK CABLE 1 Rp7.500
8 45289-11F00-000
SUB: 45289B11F00N000		 PLATE, SEAT LOCK ASSY 1 Rp4.000
9 45700-47G00-000
SUB: 45700B47G00N000		 BRACKET, STRIKER SUPPORT 1 Rp31.500
10 95700-27J00-000
SUB: 95700B27J00N000		 LOCK ASSY, SEAT 1 Rp21.500
11 09407-17403-000
SUB: 09407B17403N000		 CLAMP (L:154) 1 Rp3.500
12 01547-0610A-000
SUB: 02112B0610AN000		 SCREW 2 Rp3.000
13 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 1 Rp3.500
14 46211B27J00N000 HANDLE, PILLION RIDER 1 Rp95.000
15 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
