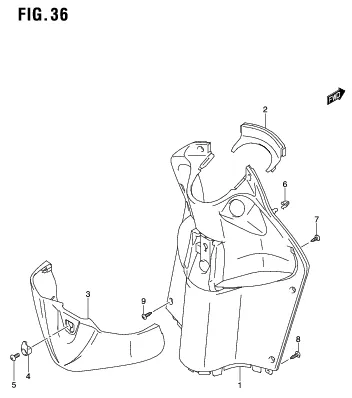

FIG. 36 LEG SHIELD COVER

FIG. 36 LEG SHIELD COVER
No No. Part Description Qty Price Per Pcs Remarks
1 92111B27J00N000 COVER, LEG SHIELD 1 Rp104.000
2 92112B27J00N000 COVER, LEG SHIELD UPPER 1 Rp16.000
3 92161B27J00N000 RACK, LEG SHIELD 1 Rp42.000
4 92171-32G00-291
SUB: 92171B32G00N000		 HOOK, LEG SHIELD 1 Rp15.500
5 48217-10J00-000
SUB: 48217B10J00N000		 SCREW, LEG SHILED HOOK 1 Rp6.500
6 09409-08326-000
SUB: 09409B08326N000		 CLIP 2 Rp8.000
7 03541-0416A-000
SUB: 03541B0416AN000		 SCREW 4 Rp3.500
8 03541-0416A-000
SUB: 03541B0416AN000		 SCREW 2 Rp3.500
9 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 6 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
