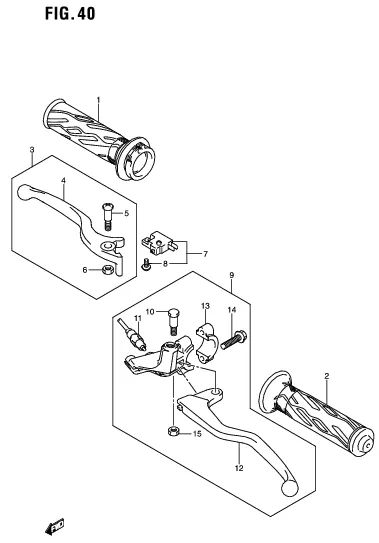

FIG. 40 HANDLE LEVER

FIG. 40 HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-41H00-000
SUB: 57110B41H00N000		 GRIP, THROTTLE 1 Rp37.000
2 57211-41H00-000
SUB: 57211B41H00N000		 GRIP LH 1 Rp22.500
3 57300-09J00-000
SUB: 57300B09J00N000		 LEVER ASSY, BRAKE 1 Rp106.000
4 57421-09J00-000
SUB: 57421B09J00N000		 .LEVER, BRAKE 1 Rp91.000
5 57431-29C20-000
SUB: 57431B29C20N000		 .SCREW, BRAKE LEVER PIVOT 1 Rp5.000
6 08319-2106A-000
SUB: 08319B2106AN000		 .NUT 1 Rp5.000
7 57460-09J00-000
SUB: 57460B09J00N000		 SWITCH ASSY, STOP 1 Rp33.500
8 DISCONTINUE
SUB: 57465B17C00N000		 .SCREW 1 -
9 DISCONTINUE
SUB: 57500B13H30N000		 LEVER ASSY, RR BRAKE & SWITCH 1 -
10 57431-13HA0-000
SUB: 57431B13H10N000		 .BOLT, BRAKE LEVER PIVOT 1 Rp5.500
11 57470-10J40-000
SUB: 57470B10J10N000		 .SWITCH ASSY, BRAKE 1 Rp46.500
12 57621-13HA0-000
SUB: 57621B13H10N000		 .LEVER, REAR BRAKE 1 Rp32.500
13 DISCONTINUE
SUB: 59671B13H10N000		 .HOLDER 1 -
14 01547-0625A-000
SUB: 01547B0625AN000		 .BOLT 1 Rp6.500
15 08319-2106A-000
SUB: 08319B2106AN000		 .NUT 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
