KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 47 FRONT SUSPENSIONFIG. 48 FRONT DRIVE SHAFTFIG. 49 FRONT SUSPENSION FRAMEFIG. 50 REAR SUSPENSIONFIG. 51 REAR AXLEFIG. 52 ROAD WHEEL/TIRE (GA)FIG. 53 ROAD WHEEL/TIRE (GL,GX)FIG. 54 STEERING WHEELFIG. 55 STEERING COLUMN (GA)FIG. 56 STEERING COLUMN (GL,GX)FIG. 57 STEERING UNITFIG. 58 PEDAL/PEDAL BRACKETFIG. 59 BRAKE MASTER CYLINDERFIG. 60 BRAKE PIPINGFIG. 61 FRONT WHEEL BRAKEFIG. 62 REAR WHEEL BRAKEFIG. 63 PARKING BRAKE

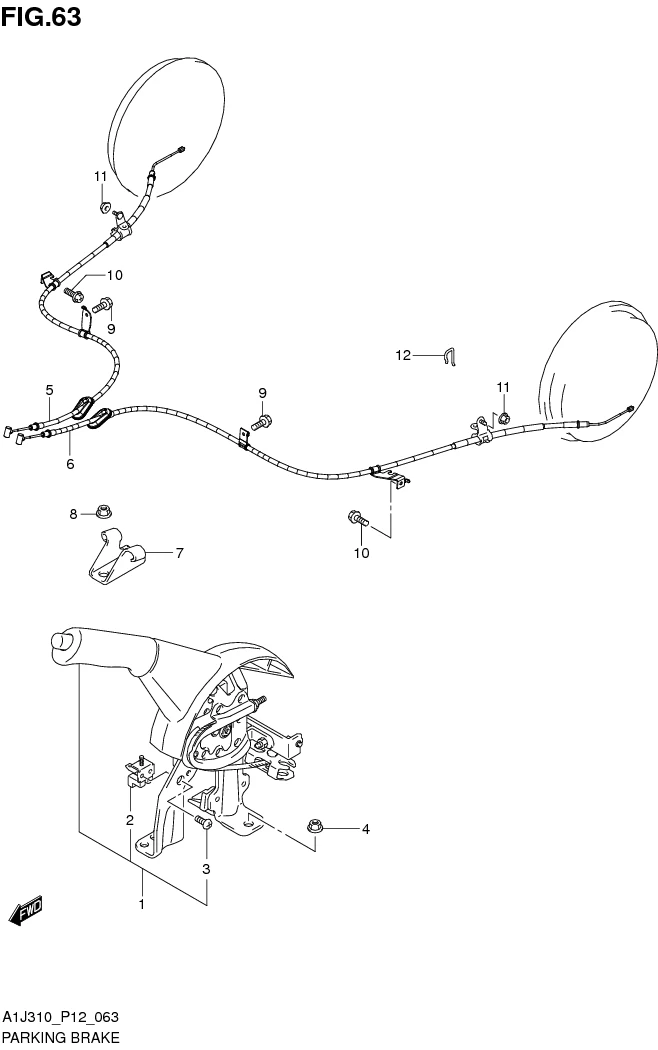

FIG. 63 PARKING BRAKE

FIG. 63 PARKING BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1-1 54100-67L20-5PK
SUB: 54100B67L20N5PK		 LEVER ASSY, PARKING BRAKE 1 Rp334.500 GA,GL
1-2 54100-67L30-5PK
SUB: 54100B67L30N5PK		 LEVER ASSY, PARKING BRAKE 1 Rp334.500 GX
2 37940-76G00-000 •SWITCH ASSY, PARKING BRAKE 1 Rp75.500
3 54115-76G00-000 •SCREW 1 Rp16.000
4 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
5 54401-67L20-000
SUB: 54401B67L20N000		 CABLE, PARKING BRAKE RH 1 Rp143.500
6 54402-67L20-000
SUB: 54402B67L20N000		 CABLE, PARKING BRAKE LH 1 Rp139.000
7 54495-77M00-000
SUB: 54495B77M00N000		 BRACKET, PARKING CABLE 1 Rp23.500
8 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
9 02162-0612A-000 SCREW 2 Rp11.000
10 02162-0612A-000 SCREW 2 Rp11.000
11 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000
12 53771-79G00-000
SUB: 53771M79G00-000		 CLIP, PARKING CABLE 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
