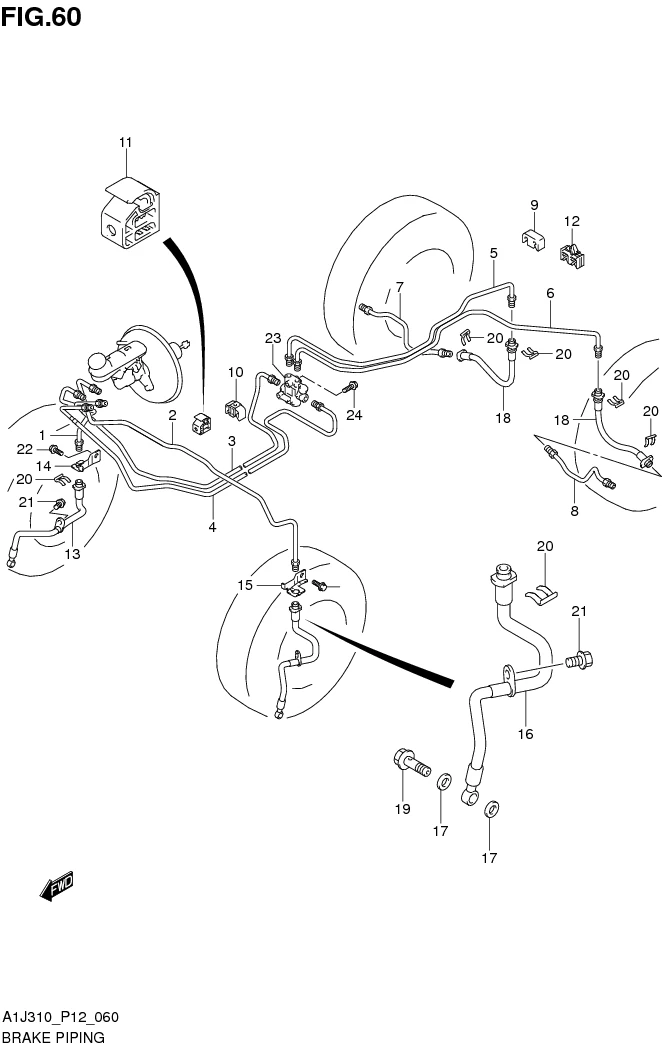

FIG. 60 BRAKE PIPING

No	No. Part	Description	Qty	Price Per Pcs
1	51410-67L20-000 SUB: 51410B67L20N000	PIPE, MA SEC TO FR BK HOSE RH	1	Rp36.500
2	51420-67L20-000 SUB: 51420B67L20N000	PIPE, MA PRI TO FR BK HOSE LH	1	Rp36.500
3	51450-67L20-000 SUB: 51450B67L20N000	PIPE, MA PRI TO PV RH	1	Rp97.000
4	51460-67L20-000 SUB: 51460B67L20N000	PIPE, MA SEC TO PV LH	1	Rp84.500
5	51470-67L21-000 SUB: 51470B67L20N000	PIPE, PV TO RR BK HOSE RH	1	Rp23.000
6	51480-67L21-000 SUB: 51480B67L20N000	PIPE, PV TO RR BK HOSE LH	1	Rp38.000
7	51510-67L20-000 SUB: 51510B67L20N000	PIPE, RR BK HOSE TO RR W/C RH	1	Rp24.500
8	51520-67L21-000 SUB: 51520B67L20N000	PIPE, RR BK HOSE TO RR W/C LH	1	Rp18.500
9	51751-67L20-000 SUB: 51751B67L20N000	CLAMP, BK PIPE REAR FL DOUBLE	1	Rp6.500
10	51751-77M10-000 SUB: 51751B77M10N000	CLAMP, BK PIPE MAIN FL	4	Rp5.500
11	51752-77M00-000 SUB: 51752B77M00N000	CLAMP, BK PIPE DASH1	3	Rp5.500
12	51761-67L20-000 SUB: 51761B67L20N000	CLAMP, BK PIPE REAR FL DOUBLE	1	Rp6.500
13	51550-67L20-000 SUB: 51550B67L20N000	HOSE, FR BRAKE FLEXIBLE RH	1	Rp169.000
14	51551-67L20-000 SUB: 51551B67L20N000	BRACKET ,FR BK HOSE RH	1	Rp9.500
15	51552-67L20-000 SUB: 51552B67L20N000	BRACKET ,FR BK HOSE LH	1	Rp9.500
16	51560-67L20-000 SUB: 51560B67L20N000	HOSE, FR BRAKE FLEXIBLE LH	1	Rp169.000
17	51562-67L20-000 SUB: 51562B67L20N000	WASHER, FR DISC FLEXIBLE HOSE	4	Rp6.500
18	51570-67L20-000 SUB: 51570B67L20N000	HOSE, RR BRAKE FLEXIBLE	2	Rp73.500
19	51561M55K00-000 SUB: 09360-10046-000	BOLT, UNION	2	Rp8.500
20	09383M13004-000 SUB: 09383-13003-000	E RING	6	Rp7.000
21	01551-0816C-000	BOLT	2	Rp13.500
22	01551-0816C-000	BOLT	2	Rp13.500
23	51910-67L20-000 SUB: 51910B67L20N000	VALVE ASSY, PROPORTIONING	1	Rp276.000
24	01550-0640A-000	BOLT	1	Rp5.500
