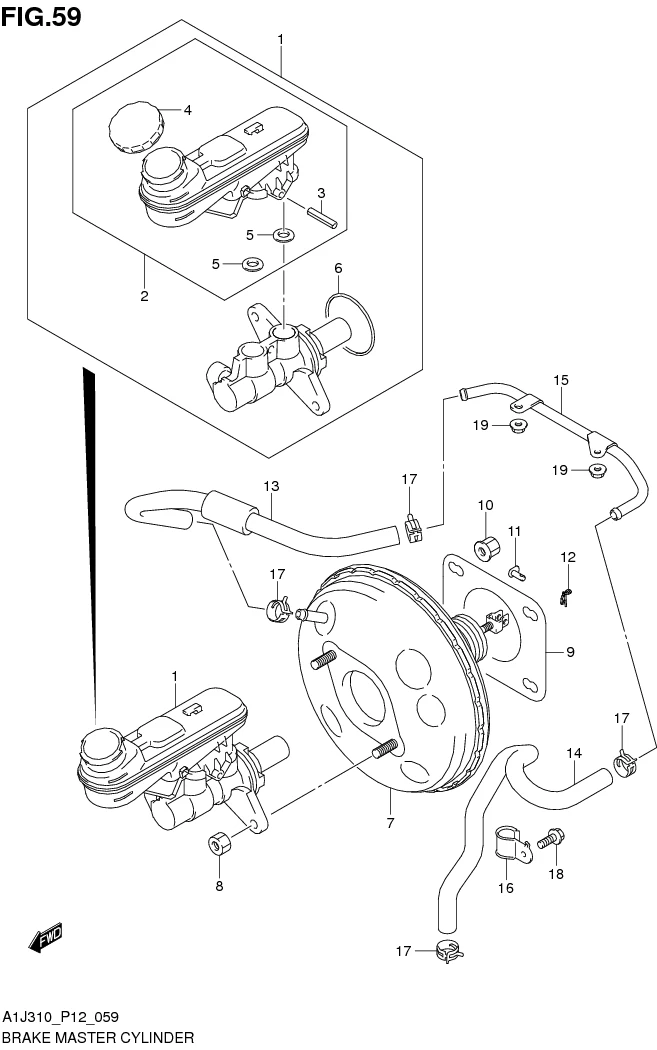

FIG. 59 BRAKE MASTER CYLINDER

FIG. 59 BRAKE MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 51100-67L21-000
SUB: 51100B67L20N000		 CYLINDER ASSY, BRAKE MASTER 1 Rp1.414.000
2 51200-67L20-000
SUB: 51200B67L20N000		 •RSVR ASSY, MASTER CYLINDER 1 Rp398.000
3 51194-67L20-000
SUB: 51194B67L20N000		 ••PIN, MASTER CYLINDER 1 Rp15.000
4 51220-60KA0-000
SUB: 51220B60KA0N000		 ••CAP, RESERVOIR 1 Rp75.000
5 51232-67L20-000
SUB: 51232B67L20N000		 ••GROMMET, RSVR CONNECTOR 2 Rp13.000
6 51185-67L20-000
SUB: 51185B67L20N000		 •O RING 1 Rp14.500
7 51300-67L20-000
SUB: 51300B67L20N000		 BOOSTER ASSY, BRAKE MASTER 1 Rp844.000
8 51313-67L20-000
SUB: 51313B67L20N000		 NUT 2 Rp13.000
9 51132-82003-000 PACKING, BRAKE MASTER CYLINDER 1 Rp33.000
10 09159-08127-000 NUT 4 Rp11.000
11 09200M08052-000
SUB: 09200-08069-000		 PIN 1 Rp13.500
12 09385-08007-000 PIN, SNAP 1 Rp16.500
13 51010M67L01-000
SUB: 51010M67L00-000		 HOSE, BRAKE VACUUM BSTR TO PIPE 1 Rp86.000
14 51011M65L11-000 HOSE, VACUUM PIPE TO INTK 1 Rp69.000
15 51050-67L20-000
SUB: 51050B67L20N000		 PIPE, BRAKE VACUUM 1 Rp36.500
16 51161-67L20-000
SUB: 51161B67L20N000		 CLAMP, BRAKE VACUUM HOSE 1 Rp11.000
17 09401-15404-000
SUB: 09401M15411-000		 CLAMP 4 Rp14.500
18 02162-0612A-000 SCREW 1 Rp11.000
19 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
