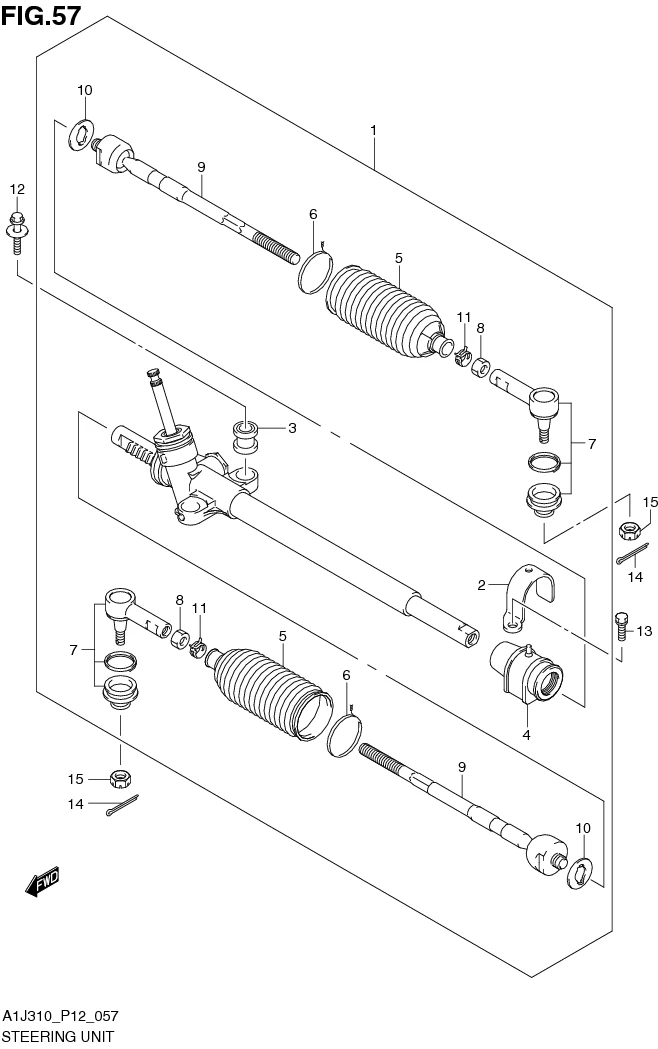

FIG. 57 STEERING UNIT

FIG. 57 STEERING UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 48500M67L12-000
SUB: 48500M67L10-000		 BOX ASSY, STEERING GEAR 1 Rp2.463.000
2 48522M67L00-000 •BRACKET, RACK SIDE 1 Rp35.500
3 48525M67L00-000 •BUSHING, STEERING GEAR BOX 2 Rp100.000
4 48526M67L00-000 •MOUNT, STEERING RACK SIDE 1 Rp76.500
5 48571M67L00-000 •BOOT ASSY, STEERING 2 Rp54.000
6 48575M67L00-000 •WIRE, STEERING 2 Rp11.000
7 48810M67L00-000 •END, STEERING TIE ROD 2 Rp180.000
8 48817M67L00-000 •NUT, TIE ROD END LOCK 2 Rp6.500
9 48830M67L00-000 •TIE ROD, STEERING 2 Rp260.000
10 48841M67L00-000 •WASHER, STEERING TIE ROD LOCK 2 Rp6.500
11 48871M67L00-000 •CLIP, RACK BOOT 2 Rp31.000
12 48528-58J00-000 BOLT, STEERING PINION SIDE 2 Rp54.500
13 09117-08100-000 BOLT (8X21) 2 Rp20.500
14 04111-3020A-000
SUB: 04111B3020AN000		 PIN 2 Rp2.500
15 08314-40123-000
SUB: 08314-4012A-000		 NUT 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
